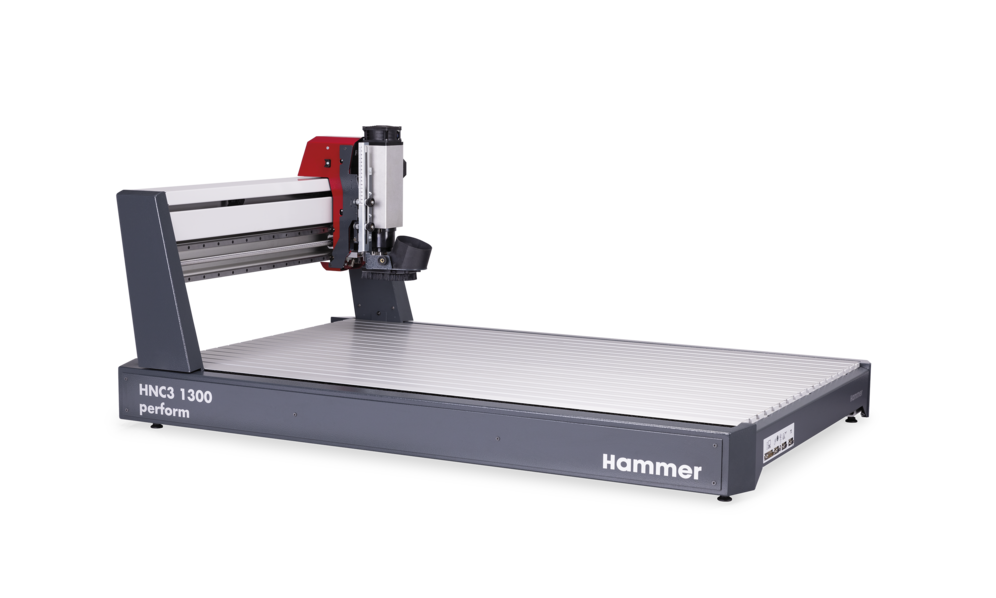

Hammer | HNC3 1300 perform CNC Portal Milling Machine

Accessible Precision CNC Milling for Diverse Applications

Immerse yourself in the world of CNC machining now! The new Hammer® CNC portal milling machine - CNC technology made affordable and possible for everyone. No matter whether you are a demanding do-it-yourselfer, ambitious model maker, quality-conscious small-series manufacturer, training facility or school. The Hammer® CNC portal milling machine removes the limits of manufacturing possibilities and impresses with its Austrian engineering quality in every detail. On a surface as small as a kitchen table, the Hammer® CNC portal milling machine offers all the freedom of CNC machining with a unique price-performance ratio. The classic, solid and durable construction combined with the highest quality materials ensures exceptional torsional strength and stability. A powerful moulder spindle, precise linear guides and powerful stepper motors ensure maximum performance and efficiency for every challenge. Absolute precision and repeatability are guaranteed at all times, even with delicate work. The Hammer® CNC portal milling machine can be controlled either by an integrated, intuitive software or by any software of your choice. The workpieces and numerous accessories can be fastened to the T-slot table in no time at all.

• Unlimited machining options on two different surfaces: working surface 825 x 479 mm or 1300 x 779 mm, through feed height 160 mm
• High stability due to solid construction, high-quality materials and Austrian mechanical engineering standards
• Powerful and efficient: 1000 Watt moulder motor (optional 2.2 kW moulder spindle), 7 m/min feed speed
• Absolute precision for every application: ±0.05 mm repeatability and <0.02 mm backlash
• High-quality results even with the most delicate work thanks to linear guides
• Powerful, durable stepper motors for sufficient torque at any speed
• Simultaneous operation of three axis (fourth axis optionally controllable)
• Intuitive control and an open interface with many Postprocessors for the software of your choice
• Flexible workpiece and accessory fastening on the T-slot table
• Numerous accessories available

Key Features

Highlights

• Expanded Working Area: Provides a spacious working surface of 51 ⅛" x 30 ⅝" (1300 x 779 mm) with a through-feed height of 6 ¼" (160 mm), offering significant room for larger projects while maintaining a compact footprint suitable for small workshops, schools, or hobbyist environments.
• Powerful 2.2 kW Moulder Spindle: Standard on the perform model, this high-frequency spindle delivers exceptional power for demanding CNC tasks, ensuring highly precise professional results across a variety of materials, surpassing the base model's capabilities.
• High-Precision Linear Guides: Features two high-precision linear guides per axis—four on the z-axis, three on the y-axis, and two on each side of the x-axis—designed to be contamination-resistant and maintenance-free, guaranteeing top-quality outcomes even on the most delicate workpieces.

Details

• T-Slot Machine Table: Crafted from robust aluminum with M6 slots (17.5 x 7.5 mm), this table enables rapid and secure fastening of workpieces and accessories. It supports a wide array of clamping devices from the Hammer range and custom clamping methods, providing exceptional flexibility for diverse machining tasks.
• Recirculating Ball Screws on X & Y Axis: Powered by a 2.8 A NEMA 24 stepper motor in 1/8 step mode, these tolerance class T7 ball screws (16 mm diameter, 10 mm pitch) ensure maximum precision and smooth operation. The maximum travel speed of 275 in/min (7 m/min) optimizes processing times efficiently.
• Absolute Precision and Repeatability: Delivers ±0.05 mm repeatability and ≤0.02 mm backlash, with a technical resolution of 0.00625 mm (0.00375 mm on the z-axis), ensuring consistent accuracy for intricate and delicate projects across multiple applications.
• "Perform" Extraction Hood: Standard with a 100 mm diameter connection, this hood can move with the spindle or be fixed at the workpiece’s upper edge, ensuring optimal dust extraction. An electric fan reduces noise by half and provides superior cooling, enhancing the work environment.
• 6W Laser Head with Docking Station: An optional attachment for engraving and cutting tasks, easily mounted via a magnetic holder. Removable during molding operations to protect the lens from dust, this feature adds versatility for detailed work, supported by a flue gas filter system for clean operation.
• Intuitive Control and Open Interface: Supports operation via integrated, intuitive software with a touchscreen interface or any user-preferred software, backed by multiple postprocessors. This flexibility caters to diverse software preferences, enhancing control versatility.
• Delivered Fully Assembled: Arrives pre-assembled, lubricated, and calibrated, requiring only unpacking and connection to a power supply and control computer for immediate use, eliminating setup time and simplifying the start-up process.
• Attachments and Accessories: Includes a clamping collar for 43 mm diameter routing motors with optional C13 and M8 (0-10V) couplings. Additional options encompass a tool length sensor, various collet chucks (e.g., ER16, ER25), vacuum tables (e.g., 5042, 8550), a machine base with drawer, protective housing with laser protection panes, LED light, and an external drag chain, significantly expanding machining capabilities.
• Durability and Stability: Constructed with high-quality materials and Austrian engineering standards, the machine’s 308 lbs (140 kg) weight and solid build ensure exceptional torsional strength and stability, supporting rigorous use while maintaining precision.
