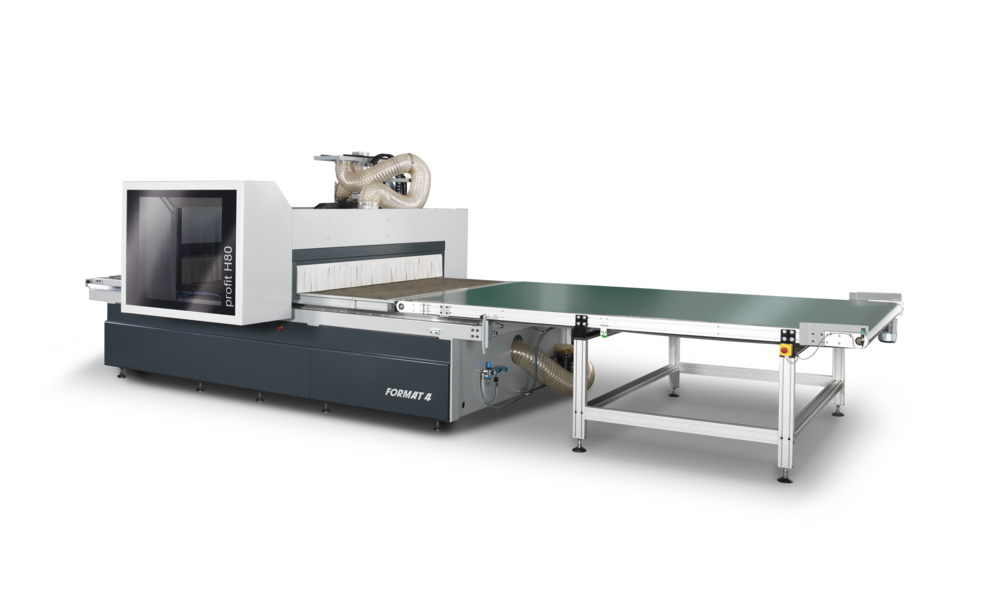

Format4 | profit H80I CNC Machine Center
For profitable efficiency. For individual furniture production. For industrial use. The profit H80I CNC machining centre in the midst of a smart F4®Solutions production process is the only answer to the question of the future of profitable furniture production.
The panel cutting, drilling and milling centre profit H80 brings highly efficient 4.0 furniture production into future-proof cabinetmaker and carpenter workshops. Complete custom-made furniture with all holes, grooves and connections are produced in one single operation at the click of a mouse. The latest nesting technologies ensure the highest possible material and time savings. Up to full automation, the profit H80I can be extended with different loading and unloading solutions, thus achieving maximum material processing.
All across the piece of furniture, F4®Solutions generates a consistent, efficient and profitable production process. The software tools for maximum productivity accompany you through the entire production chain. Easiest design of individual pieces of furniture in the familiar CAD environment. Photorealistic rendering of sales assisting 3D visualizations. Detailed data transfer to all integrated machines with economic nesting optimisation. Even the final assembly is accompanied by clear, detailed drawings and 3D data - that's 4.0 for trade and industry. » Automation solutions
Key Features
Highlights
- Smart F4®Solutions Integration: Embeds the profit H80I in a 4.0 production process, enabling complete furniture production—including holes, grooves, and connections—in a single operation. This smart system optimizes material and time savings, supported by photorealistic 3D visualizations and detailed assembly data.
- Versatile Main Spindle: Features a high-performance spindle with 10, 12, or 15 kW power and up to 24,000 rpm, controlled by an inverter. The HSK F63 tool clamping, checked by sensors and cleaned pneumatically, ensures excellent results across various materials, enhanced by an optional interpolating C-axis (360°).
- Smart Zoning Technology: Allows quick processing of multiple panel formats (e.g., 3090 mm x 2100 mm, 2500 mm x 1250 mm) with flexible vacuum zone adjustments, maximizing holding force and adaptability for diverse workpiece sizes.
Details
- Drilling Head Configuration Options: Offers flexibility with a choice of drilling heads—either vertical spindles or a combination with a grooving saw for vertical and horizontal processing. The inverter-controlled motor reaches up to 7,500 rpm, covering the entire working field for efficient drilling tasks.
- Nesting Table with Phenolic Resin: Features an optimal matrix geometry for full panel support, ensuring exact positioning. An optional high-flow nesting table with a 30 x 30 mm grid enhances hold-down effects, particularly for smaller pieces, with the phenolic resin table resisting heat and cold for consistent accuracy.
- Automatic Tool Length Measuring System: Stores tool lengths in the database with one-hundredth millimeter accuracy, eliminating operator errors and streamlining setup for precise machining.
- Adjustable Linear Tool Changer: Accommodates up to 12 tools and 3 units, with a cover protecting HSK tool adaptors from dust and chips. This height-adjustable changer minimizes changeover times, boosting productivity.
- Extraction and Labeling Systems: Includes an automatically controlled extraction connection switching between the drilling head and main spindle, an extraction bell for optimized suction, and an optional labeling unit at the out-feed table for process reliability and workpiece identification.
- Automation and Loading Options: Supports full automation with a lifting table for precise panel alignment and optional loading/unloading solutions. The labeling system and continuous fences on automatic machines ensure seamless workflow integration.
- F4®Integrate Software: Provides a state-of-the-art interface with a tool library (F4Toolbox), programming section (F4Create with CAD), and machine control (F4Operate) on one screen. Based on G-Code, it supports external programs, enhancing flexibility and productivity.
- Maintenance and Ergonomics: Features a maintenance door for easy access to the mortising unit, under-table and upper-table extraction for chip removal, and a foot switch bar along the working area for ergonomic operation without needing to reposition pedals.
- Attachments and Accessories: Includes optional automation enhancements, additional vacuum zones, and status-indicating lighting. Web context suggests compatibility with advanced aggregates (e.g., 5-axis units, labeling systems), reflecting Format4’s modular design, though not detailed here.
- Durability and Precision: Built with solid design and premium Austrian components, the profit H80I ensures uncompromised productivity, supported by a perfect service package and networked workshop capabilities.
Technical Specifications
| Category | Details |
|---|---|
| Machining Unit |
|
| General |
|
Specifications
Felder Format4 profit H80I CNC Machining Centre FAQs
What is the Format4 profit H80I CNC Machining Centre?
The Format4 profit H80I is a professional **CNC nesting machining centre** designed for efficient panel cutting, drilling, and milling — optimized especially for modern, high-efficiency furniture production workflows. :contentReference[oaicite:0]{index=0}
How does the profit H80I support furniture production?
The H80I can produce complete custom furniture components — including **holes, grooves, and connections** — in a single automated process, reducing setups and improving consistency across production runs. :contentReference[oaicite:1]{index=1}
What does “nesting” mean on the profit H80I?
Nesting refers to **optimizing the layout of multiple parts on a sheet panel** so that they are cut with minimal waste. This maximizes material usage and speeds furniture panel production. :contentReference[oaicite:2]{index=2}
What software does the profit H80I use?
It integrates **F4®Solutions**, a comprehensive software suite that supports CAD design, CAM nesting, tool libraries, and machine control in one unified interface to support efficient furniture manufacturing. :contentReference[oaicite:3]{index=3}
What is Smart Zoning and why is it important?
Smart Zoning is an **intelligent vacuum management system** that adapts vacuum zones to different panel sizes, ensuring secure holding and quick changeovers — which is critical for varied furniture parts. :contentReference[oaicite:4]{index=4}
Can the profit H80I be automated?
Yes. The machine supports **automation options** including panel loading, alignment, unloading, and labeling units to enable near-continuous production and higher throughput for furniture manufacturing. :contentReference[oaicite:5]{index=5}
What tool and spindle options are available?
The H80I can be equipped with a spindle up to **15 kW and speeds up to 24,000 rpm**, and has configurations for drilling heads with vertical spindles or combined vertical/horizontal processing tools. :contentReference[oaicite:6]{index=6}
Does the profit H80I have a C-axis?
Yes. The **C-axis is offered as an optional interpolating (360°) axis** with a compressed-air interface for aggregates, increasing flexibility for angled machining tasks. :contentReference[oaicite:7]{index=7}
How does the C-axis benefit furniture machining?
The C-axis enables **rotational tool control during machining**, making it easier to drill angled holes or machine compound features without repositioning workpieces manually. :contentReference[oaicite:8]{index=8}
What panel sizes can the profit H80I handle?
The machine supports common panel formats such as **3090 mm × 2100 mm and 2500 mm × 1250 mm**, and can quickly switch between sizes using Smart Zoning. :contentReference[oaicite:9]{index=9}
What workholding system does the H80I use?
It uses a **matrix nesting table with optimal geometry and phenolic resin surface**, providing strong and precise vacuum holding for flat panels during cutting and drilling operations. :contentReference[oaicite:10]{index=10}
How does the profit H80I improve shop productivity?
The combination of nesting optimization, automated tool management, and optional automation peripherals significantly reduces handling time, increases throughput, and improves material efficiency. :contentReference[oaicite:11]{index=11}
Can the machine generate detailed fabrication data?
Yes. F4®Solutions can produce **photorealistic 3D visualizations, detailed part drawings, and assembly data**, which improves communication between design, manufacturing, and assembly. :contentReference[oaicite:12]{index=12}
Is the profit H80I suitable for custom furniture shops?
Yes. Its ability to rapidly program and nest diverse parts makes it ideal for shops producing **custom cabinetry, bespoke furniture, and variable designs**. :contentReference[oaicite:13]{index=13}
What extraction and dust control options are available?
The H80I can be equipped with **central suction hoods, adjustable extraction bells, and above- and below-table extraction systems** to maintain clean machining and clear workspaces. :contentReference[oaicite:14]{index=14}
Why choose the Felders Format4 profit H80I CNC for furniture production?
The profit H80I combines **industry-grade nesting, intelligent vacuum control, automation readiness, flexible tool/spindle options, and integrated software** — all focused on reducing waste, lowering cycle times, and improving quality in furniture manufacturing. :contentReference[oaicite:15]{index=15}
