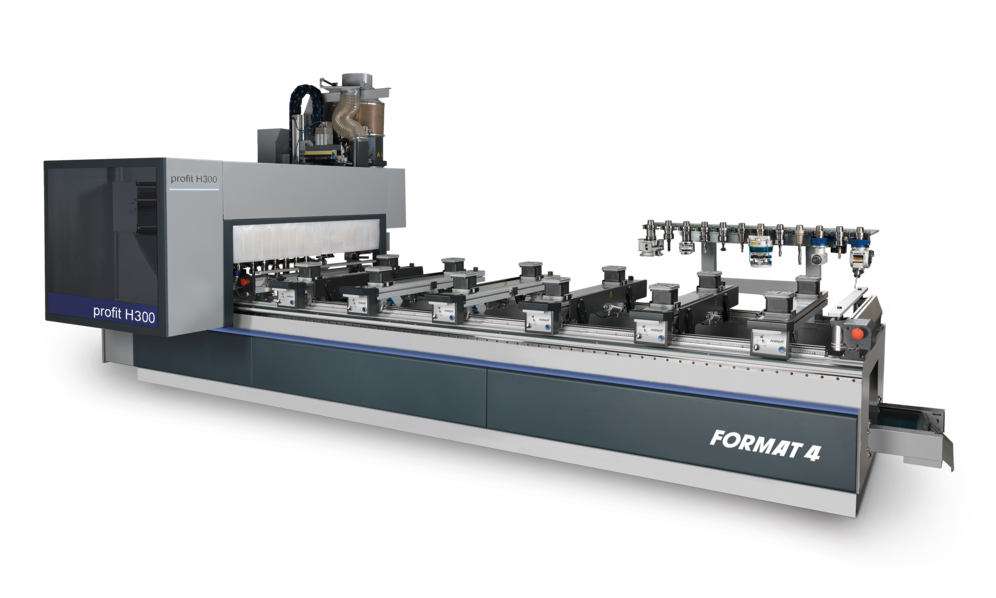

Format4 | profit H300R CNC Machine Center
The all-rounder with XL processing capacity
The increasing demand for custom-made products in furniture, door and window production is providing a challenge for all workshops, above all smaller companies: Diverse profiles have to be produced with flexibility, efficiency and in several thicknesses, to be able to keep up with larger manufacturers in the market.
With a large dimensioned working field in Y, the profit H300R offers almost limitless possibilities in panel and solid wood processing. Standard and special applications can be flexibly covered with the wide range of products and numerous configuration options available. To ensure a productive work process, the machine and software must be in perfect harmony, numerous interfaces from various suppliers often make this interaction difficult. With the “everything from a single supplier” solutions from Format4 the customer will receive a perfectly matched complete package for the highest of requirements.
The c-tech product line offers specially designed equipment options for processing plastics and composite materials.
Key Features
Highlights
- Large Working Field for Versatile Processing: Features a large Y-dimensioned working field, offering almost limitless possibilities for panel and solid wood processing, making it ideal for diverse profiles and thicknesses in custom furniture, door, and window production.
- lightPos LED Positioning System: Utilizes over 6,000 LEDs to visually position vacuum pods and consoles with millimeter precision, enhancing setup speed and accuracy, especially during alternating operations, with a sophisticated color management system for clear status indication.
- Panel Activation Technology: Enables precise control of vacuum pods for secure workpiece positioning, optimizing the machining process for efficiency and flexibility across various materials.
Details
- Working Area and Dimensions: Provides a working area of 3300 mm (X) x 1580 mm (Y) x 250 mm (Z) for the 16.33 model, and 5300 mm (X) x 1580 mm (Y) x 250 mm (Z) for the 16.53 model, with passage height from console height, supporting extensive machining capabilities.
- Powerful Main Spindle: Equipped with a 12 kW or 15 kW spindle (up to 24,000 rpm), inverter-controlled and mounted on the Z-axis carrier unit with dual vertical guide tracks and ground ball screws. The HSK F63 tool clamping is automatic, checked by sensors, and cleaned pneumatically, with a standard interpolating C-axis (360°) featuring a compressed air interface.
Offers a state-of-the-art interface with a tool library (F4Toolbox), programming section (F4Create with CAD), and machine control (F4Operate) on one screen. Based on G-Code, it supports external programs, providing intuitive and efficient operation tailored to Format4’s ecosystem. Automatically adjusts to one of three positions based on workpiece height, significantly reducing dust and noise emissions, with dust and chips routed via a tooling deflector guard during edge processing for optimal extraction. Features an ER25 collet chuck on the right and an ER32 with integrated extractor on the left, offering variable speeds up to 18,000 rpm and pneumatic swiveling from 0° to 7°, ideal for door hinge machining and lock box processing. Includes a 12-position linear tool changer (expandable to 4-position or 18-position rotary), with an optional cover protecting HSK tool adaptors from dust and chips. A pick-up station for large saw blades and compressed air-controlled frame clamping devices enhance versatility. - Utilizes compressed air-driven frame clamping devices with higher clamping force, individually deactivatable consoles for waste removal, and loading supports for easy handling of large or heavy workpieces, enabling single-person operation.
Determines tool length with one-hundredth millimeter accuracy within the machine, eliminating operator errors and improving setup precision. Includes a chip conveyor on the right side for waste and residual chip removal with a separating slide, plus safety options like light barriers, foot mats, bumpers, or combinations, and a foot switch bar for ergonomic operation. Offers optional features like template milling connections, additional stops for veneered panels, and a 3D simulator for machining time and collision checks. Web information suggests compatibility with advanced aggregates (e.g., 5-motion unit), reflecting Format4’s modular design. Built with a solid steel chassis and premium Austrian components, the profit H300R ensures uncompromised productivity, supported by a perfect service package, automation solutions, and networked workshop capabilities.
Technical Specifications
| Category | Details |
|---|---|
| Machining Unit |
|
| General |
|
Specifications
Format4 profit H300R CNC Machining Center FAQs
What is the Format4 profit H300R CNC Machining Center?
The Format4 profit H300R is a professional CNC machining center designed for high-precision woodworking applications. It is optimized for advanced 3-axis and indexed machining with pod and rail workholding, delivering flexibility and accuracy for cabinetry, furniture, and custom components.
How does the profit H300R differ from the profit H350R?
The profit H300R is an advanced CNC machining center with limited rotational capability, while the profit H350R is a true continuous 5-axis CNC. The H350R supports full simultaneous A- and C-axis machining, whereas the H300R is designed for less complex angular operations.
Is the profit H300R a true 5-axis CNC machine?
No. Unlike the profit H350R, the profit H300R is not a full simultaneous 5-axis machine. It is intended for 3-axis machining with indexed or limited angular capabilities rather than continuous multi-axis interpolation.
What is the C-axis on the profit H300R?
The C-axis on the profit H300R allows rotational positioning of the spindle around the vertical axis. This enables indexed drilling, positioning, and orientation changes but does not provide the same continuous 5-axis machining capability as the H350R.
How does the C-axis on the H300R differ from the H350R?
On the H300R, the C-axis is used primarily for indexed positioning. On the profit H350R, the C-axis works together with the A-axis for full continuous 5-axis machining, enabling complex contours and compound angles.
What type of workholding system does the profit H300R use?
The profit H300R uses a pod and rail vacuum workholding system, allowing parts to be elevated above the table for edge machining and multi-face access.
How does pod and rail machining differ from nested-based CNC machining?
Pod and rail machining supports individual part clamping for 5-sided access and edge machining. Nested-based CNCs hold full sheets flat and are optimized for panel cutting rather than complex multi-face machining.
Is the profit H300R suitable for nested-based production?
No. The profit H300R is designed for pod and rail machining, not nested sheet processing. Shops focused on high-volume panel nesting typically require a dedicated nested-based CNC.
Why choose the profit H300R instead of the profit H350R?
The profit H300R is ideal for shops that need high precision, pod and rail flexibility, and angular machining without the complexity or cost of full 5-axis continuous interpolation offered by the H350R.
What applications are best suited for the profit H300R?
The H300R excels at cabinet components, furniture parts, frame machining, drilling operations, and moderate angled work that does not require continuous 5-axis motion.
What applications require the profit H350R instead?
The profit H350R is better suited for complex 3D contours, compound-angle joinery, sculpted components, and parts requiring full simultaneous 5-axis machining.
Can the profit H300R machine solid wood and panels?
Yes. The profit H300R is designed to machine solid wood, plywood, MDF, and wood-based panels commonly used in cabinetry and furniture manufacturing.
How does the H300R compare to a standard 3-axis CNC?
Compared to a basic 3-axis CNC, the H300R offers significantly greater flexibility through pod and rail workholding and indexed angular capabilities, reducing setups and manual repositioning.
Does the profit H300R reduce setup time?
Yes. Pod and rail workholding allows access to multiple faces of a part in a single setup, reducing handling time and improving workflow efficiency.
Why choose the Format4 profit H300R CNC Machining Center?
The profit H300R delivers a balance of precision, flexibility, and efficiency for shops that need advanced CNC capabilities without the complexity of full 5-axis machining, making it a cost-effective solution for high-quality woodworking production.
