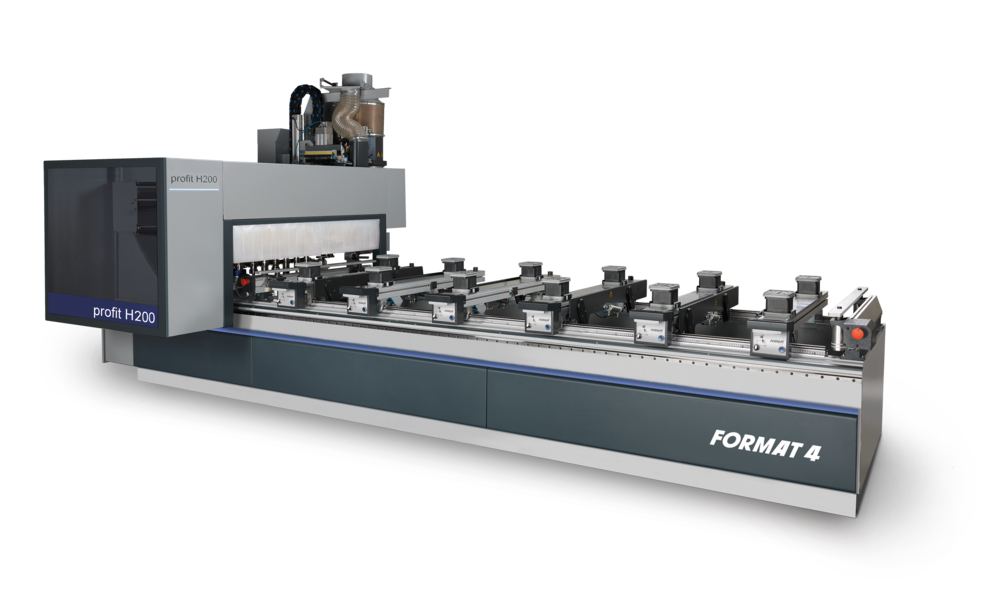

Format4 | profit H200R CNC Machine Center

High-end CNC technology at a low investment level

It is universal workshops in particular where affordable CNC technology is becoming increasingly important. Regardless of whether a series of regular standard products or individually designed one-offs are to be made, the universal Format4 profit H200R machining centre produces finished workpieces with maximum efficiency and are a real profit earner even from day one. In the new, completely reengineered design, the CNC machining centres from Format4 display dynamics, power and high end technology from the first glance. The new machine chassis with solid steel ribbing guarantees maximum stability at maximum output. With a wide selection of various tool changers and Format4 software that fits perfectly to the machine, the new FORMAT4 CNC machining centre is a reliable complete package for the production of doors, windows, staircases and solid wood furniture.

• High-end CNC technology at a low investment level
• It is universal workshops in particular where affordable CNC technology is becoming increasingly important
• Regardless of whether a series of regular standard products or individually designed one-offs are to be made, the universal Format4 profit H200R machining centre produces finished workpieces with maximum efficiency and are a real profit earner even from day one
• In the new, completely reengineered design, the CNC machining centres from Format4 display dynamics, power and high end technology from the first glance
• The new machine chassis with solid steel ribbing guarantees maximum stability at maximum output
• With a wide selection of various tool changers and Format4 software that fits perfectly to the machine, the new FORMAT4 CNC machining centre is a reliable complete package for the production of doors, windows, staircases and solid wood furniture

Key Features

Highlights

• Affordable High-End CNC Technology: Designed for universal workshops, the profit H200R offers advanced CNC capabilities at a low investment level, producing efficient and profitable workpieces from the first day, ideal for both standard and custom projects.
• Reengineered Design with Solid Chassis: Features a completely reengineered design with a machine chassis reinforced by solid steel ribbing, ensuring maximum stability and output, showcasing dynamics, power, and high-end technology at a glance.
• lightPos LED Positioning System: Utilizes over 6,000 LEDs to visually position vacuum pods and consoles with millimeter precision, enhancing setup speed and accuracy, especially during alternating operations, with a sophisticated color management system for clear status indication.

Details

• Working Area and Precision: Offers a working area of 3300 mm (X) x 1280 mm (Y) x 250 mm (Z), with a passage height from console height, supporting precise machining. The 2-circuit vacuum management with 100 mm vacuum pod height ensures secure workpiece positioning.
• Powerful Main Spindle: Equipped with a 12 kW or 15 kW spindle (up to 24,000 rpm), inverter-controlled and mounted on the Z-axis carrier unit with dual linear guides and ground ball screws. The HSK F63 tool clamping is automatic, checked by sensors, and cleaned pneumatically, with a standard interpolating C-axis (360°) featuring a compressed air interface.
• F4®Integrate Software: Provides a state-of-the-art interface with a tool library (F4Toolbox), programming section (F4Create with CAD), and machine control (F4Operate) on one screen. Based on G-Code, it supports external programs, offering intuitive and efficient operation.
• Automatically adjusts to one of three positions based on workpiece height, significantly reducing dust and noise emissions, with dust and chips routed via a tooling deflector guard during edge processing for optimal extraction.
• Includes a 12-position linear tool changer (expandable to 4-position or 18-position rotary), with an optional cover protecting HSK tool adaptors from dust and chips. A pick-up station for large saw blades and compressed air-controlled frame clamping devices enhance versatility.
• Features compressed air-driven frame clamping devices with higher clamping force, individually deactivatable consoles for waste removal, and loading supports for easy handling of large or heavy workpieces, enabling single-person operation.
• Determines tool length with one-hundredth millimeter accuracy within the machine, eliminating operator errors and improving setup precision.
• Includes a chip conveyor on the right side for waste and residual chip removal, with separating slides for extraction. Safety options include light barriers, foot mats, bumpers, or combinations, plus a foot switch bar for ergonomic operation.
• Offers optional features like template milling connections, additional stops for veneered panels, and a 3D simulator for machining time and collision checks. Web context suggests compatibility with advanced aggregates (e.g., 5-motion unit), reflecting Format4’s modular design.
• Built with solid design and premium Austrian components, the profit H200R ensures uncompromised productivity, supported by a perfect service package, automation solutions, and networked workshop capabilities.
