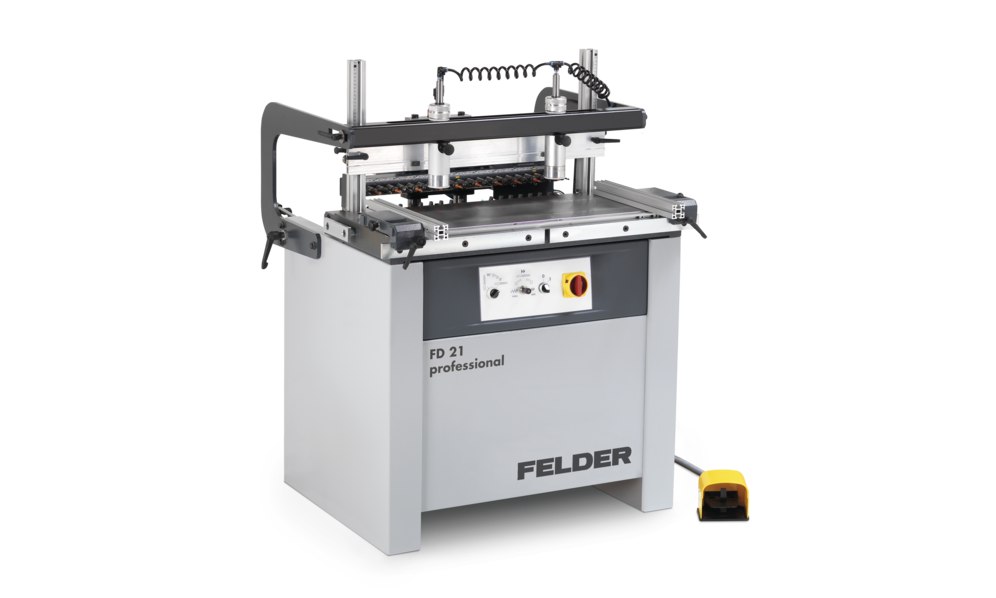

Felder | FD 21 professional Dowel Boring Machine

Precision Dowel Boring for Professional Woodworking

The Felder FD 21 Professional Dowel Hole Drilling Machine, with a 3x 400 V power supply, ensures maximum precision for dowel and line boring on wood, panel, and plastic materials. Featuring 21 high-quality drilling spindles at 32 mm intervals, a tiltable drilling unit, and a solid cast iron table, it delivers exact holes for dowels and hinges in a compact, professional-grade design.

Key Features

Highlights

• 21-Spindle Drilling Unit: High-quality spindles with 32 mm spacing and quick-change chucks support drill bits up to 35 mm for precise dowel and hinge boring.
• Tiltable Drilling Unit: Pneumatically adjustable from 0°–90° for versatile drilling angles, with 8 mm depth compensation for corner connectors.
• Pneumatic Workpiece Holders: Two pressure cylinders ensure maximum clamping force for secure workpiece stability.

Details

• Combination Drilling Segments: Optional segments for accurate hinge holes (Blum, Hettich, Grass) in one process.
• Solid Side Fences: Left and right fences with 420 mm profile and optional digital displays for 0.1 mm precision adjustments.
• Linear Fences: Two 1500 mm fences with two stops each, adjustable up to 11 3/4" (300 mm) depth with scale.
• Felder Locking System: Front-mounted, variably adjustable stops for quick, accurate positioning (non-retrofittable).
• Symmetrical Adjustment Gauge: Simplifies precise, symmetrical fence settings.
• Dust Extraction: 80 mm outlet with 434 m³/h volume flow and 470 Pa vacuum for efficient chip removal.
• Optional Accessories: Includes holders for side fences, fence extensions, and two 21-tool holders for organized equipment storage.
• Ergonomic Design: User-friendly controls and welded chassis for durability and precision.
• Optional Two-Step Motor: 1.2/1.5 kW for adjustable drilling speeds.
