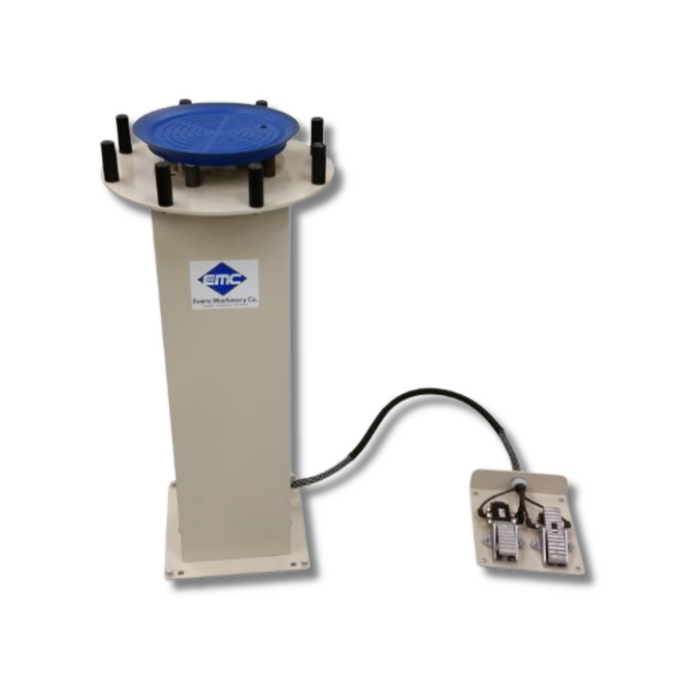

EVANS MIDWEST | EM 9100 Vacuum Stand
Standard Features:
- Venturi Style Suction Pump Produces 12 cfm at 26" HG of Vacuum Flow
- Support Ring to Support Larger Tops
- 12" Diameter Suction Cup
- Multi-Stage Pump
- Pneumatic Filter Regulator
- Reusable Style Debris Filter
- Work Height: 38"
Technical Data and Specifications:
- Electrical: N/A
- Air: 3 CFM, 80 PSI
Shipping Weight: 210 LBS
Specifications
EVANS MIDWEST EM 9100 Vacuum Stand – Frequently Asked Questions
What is the EVANS MIDWEST EM 9100 Vacuum Stand used for?
The EVANS MIDWEST EM 9100 Vacuum Stand is an industrial material handling accessory that uses vacuum hold-down technology to secure panels during machining, routing, edge banding prep, inspection, and finishing operations. It is ideal for casework shops, institutional woodworking environments, and commercial panel production facilities where panel stability and surface support are essential.
How does vacuum hold-down benefit panel processing?
Vacuum hold-down eliminates panel movement during cutting, drilling, or routing — reducing slippage, improving dimensional accuracy, and protecting delicate surfaces such as high-pressure laminate (HPL) and melamine from marking or marring.
Who should consider the EM 9100 Vacuum Stand?
Cabinet manufacturers, institutional millwork programs, school woodworking shops, and commercial panel fabrication facilities producing laminate casework, cabinets, and architectural panels will benefit from the reliable hold-down performance of the EM 9100.
What materials can the EM 9100 Vacuum Stand handle?
The vacuum stand securely holds plywood, MDF, particleboard, laminated panels, HPL, and other sheet goods during precision machining and finishing operations.
How does the EM 9100 improve machining accuracy?
By providing consistent grip and eliminating panel movement, the EM 9100 allows cutting tools and routers to maintain precise tolerances, resulting in cleaner edges, more accurate holes, and better overall surface quality.
Is the EVANS MIDWEST EM 9100 Made in the USA?
Yes. The EM 9100 Vacuum Stand is manufactured in the United States, making it suitable for government, educational, and institutional buyers with domestic procurement requirements.
Where in the production workflow does the vacuum stand fit?
The EM 9100 is typically used at routing stations, CNC infeed/outfeed tables, sanding stations, and inspection tables where secure, flat panel positioning is critical for quality and safety.
How does vacuum hold-down improve workplace safety?
Stable panel hold-down reduces the need for manual clamping or repositioning during machining, minimizing operator fatigue and risk of injury while enhancing control over power tools.
Can the EM 9100 integrate with other equipment?
Yes. The vacuum stand can be positioned inline with cutting stations, edge banders, automatic routers, and inspection tables to support a continuous workflow and improve material handling efficiency.
Does the EM 9100 help reduce scrap and rework?
Yes. By securing panels and preventing movement during precision operations, the vacuum stand minimizes errors, reduces panel defects, and helps maintain consistent quality in finished components.
Why choose EVANS MIDWEST vacuum support equipment?
EVANS MIDWEST products are engineered specifically for industrial panel handling and woodworking workflows. The EM 9100 is designed for rugged, continuous use in demanding production environments.
How do I determine if the EM 9100 is right for my shop?
If your facility uses routers, edge banders, CNCs, or precision machining stations and needs improved panel stability and surface protection, Centex Automation can evaluate your workflow to recommend the proper vacuum stand configuration.
