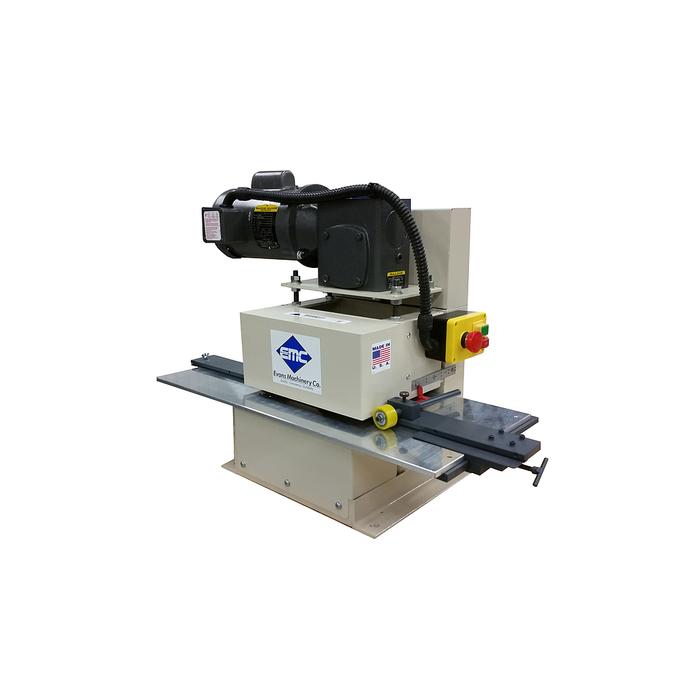

EVANS MIDWEST | EM 5010 Laminate Slitter
Standard Features:
- Bench top design
- 3-blade system for inlay quality cuts
- Adjustable self-aligning fence
Technical Data and Specifications:
- Maximum Cutting Width: 6"
- Maximum Cutting Thickness: 0.050"
- Blade Diameter: 5.75"
- Arbor Diameter: 0.875"
- Feed Rate: 70 FPM
- Motor: 0.5 HP
- Footprint: 15.25" x 23" x 22"
- Electrical: 110 Volt, 1 PH., 1/2 HP
- Air: N/A
Measuring Units
- Inches, Feet, Fahrenheit
- Millimeters, Meters, Celsius (optional)
Shipping Weight: 240 Lbs
Specifications
EVANS MIDWEST EM 5010 Laminate Slitter – Frequently Asked Questions
What is the EVANS MIDWEST EM 5010 Laminate Slitter used for?
The EVANS MIDWEST EM 5010 Laminate Slitter is a precision panel processing machine designed to slit high-pressure laminate (HPL), decorative film, veneer tape, and similar surfacing materials to exact widths. It is used by laminate casework manufacturers and commercial panel shops to prepare materials for edge banding, inlay, and finishing tasks.
Who should invest in the EM 5010 Laminate Slitter?
This slitter is ideal for laminate casework manufacturers, institutional woodworking facilities, educational millwork programs, and commercial panel fabricators that require high-accuracy laminate strip preparation for edge banding and decorative applications.
What materials can the EM 5010 process?
The EM 5010 is capable of slitting high-pressure laminate (HPL), thermally fused laminate (TFL), film-faced decorative surfacing, veneer tape, and other flexible panel surfacing materials used in cabinetry and architectural millwork.
How does the EM 5010 improve laminate processing efficiency?
By automating the slitting process, the EM 5010 eliminates repetitive manual cutting, increases throughput, and ensures consistent widths. This improves workflow efficiency and reduces material waste compared with hand-cut methods.
Why is precision slitting important in casework production?
Accurate laminate strips are essential for precise edge banding, clean seams, and professional finishes. The EM 5010 produces uniformly cut strips that minimize rejects, rework, and material waste in downstream operations.
Is the EVANS MIDWEST EM 5010 Made in the USA?
Yes. The EM 5010 Laminate Slitter is proudly manufactured in the United States, aligning with domestic procurement requirements for schools, government facilities, and institutional buyers.
Where does the EM 5010 fit in a typical production workflow?
The slitter is typically positioned after laminate storage and before edge banding preparation. It prepares strips for application to panel edges or decorative surfaces prior to assembly.
Can the EM 5010 support high-volume production?
Yes. The EM 5010 is engineered for continuous use in commercial and institutional panel fabrication environments, helping ensure repeatable quality and increased throughput across large production runs.
Does the EM 5010 reduce material waste?
Yes. Its precision slitting minimizes frayed edges and dimensional inaccuracies that lead to rejected material, improving overall yield and reducing scrap costs.
How does the EM 5010 enhance finished panel quality?
Uniform laminate strips provide better fit and adhesion during edge banding or decorative applications, leading to improved aesthetics and performance in finished cabinetry and panel products.
Is the EM 5010 compatible with other EVANS MIDWEST equipment?
Yes. The machine can integrate into laminate prep workflows alongside storage racks, glue spreaders, presses, cutters, and panel handling systems to support a seamless production line.
How do I determine if the EM 5010 is right for my shop?
If your operation requires consistent, high-precision laminate strips for edge banding or decorative applications, contact Centex Automation to evaluate panel widths, material types, and workflow requirements to recommend the optimal configuration.
