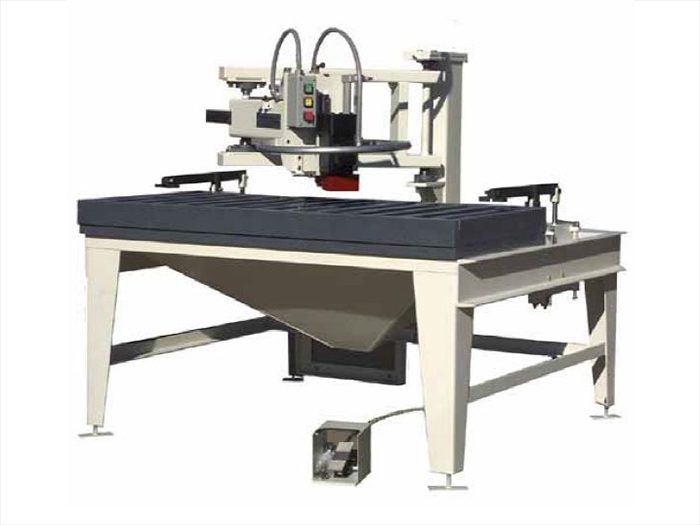

EVANS MIDWEST | EM 2480 Over Arm Sink Router GS 4R-1600
The Evans Midwest 2480 Over Arm Router is a compact, heavy-duty system for quickly cutting sink holes in countertops. The high-frequency router is rated for continuous use and cutting solid core countertops. This machine features a dual pivot joint allowing the operator to easily follow the guide template in virtually any pattern, reducing operator fatigue while maintaining product consistency and accuracy.
The 2480 Over Arm Router includes a pneumatically operated clamping mechanism for securing the countertop and template throughout the cutting process.
Features:
- Proven performance and reliability for cutting sink cutouts in all types of countertops
- High-frequency router for continuous use, and cutting solid core countertops
- Off the shelf router option available
- Cutting Surface: 30” x 48”
- Spindle Motor: 3 HP & Variable Speed
Specifications:
| Electrical: | 220 Volt 3 Phase |
| Motor: | 3 HP |
| Required Amps: | 10 |
| Max Cut: | 30” (deep) x 48” (wide) |
| Air Requirement: | 100 PSI |
| Drive: | Double V-Belt |
| Working Height: | 33” |
| Foot Print: | 65” x 70” |
| Shipping Weight: | 1180 LBS |
Specifications
EVANS MIDWEST EM 2480 Over Arm Sink Router – Frequently Asked Questions
What is the EVANS MIDWEST EM 2480 Over Arm Sink Router used for?
The EM 2480 Over Arm Sink Router is a high-precision routing machine designed to trim, shape, and profile sink cutouts and complex contours in laminated panels, countertops, and casework components. Its over-arm configuration provides enhanced access and control for routing operations that demand accuracy and repeatability.
Who should use the EM 2480 Over Arm Sink Router?
This router is ideal for laminate casework manufacturers, institutional woodworking facilities, school cabinetry programs, and commercial panel shops that require clean, precise sink cutouts and professional finishing on laminate, solid surface, and similar materials.
What materials can the EM 2480 router handle?
The machine is capable of routing high-pressure laminate (HPL), thermally fused laminate (TFL), solid surface materials, plywood, MDF, and other substrates used in cabinet and countertop fabrication.
How does the over-arm design benefit routing operations?
The over-arm design allows greater clearance and accessibility for larger panels and complex shapes, enabling operators to perform precision profiling, sink cutouts, and contour routing with enhanced visibility and control.
Why is precision important in sink routing and profiling?
Accurate routing ensures proper fit for sinks and fixtures, reduces rework, minimizes material waste, and improves overall product quality — especially important in institutional and commercial casework projects with tight tolerances.
Is the EM 2480 Made in the USA?
Yes. The EM 2480 Over Arm Sink Router is proudly manufactured in the United States, aligning with domestic sourcing requirements for schools, government facilities, and institutional buyers.
Where does the EM 2480 fit in the production workflow?
The router is typically used after panel cutting and laminate pressing to perform detailed edge profiling, sink cutouts, and precision machining before final assembly and finishing.
How does the EM 2480 improve production efficiency?
With its over-arm design and precision controls, the EM 2480 increases throughput by reducing manual handling and enabling faster, more accurate routing operations in high-volume production environments.
Can the EM 2480 reduce material waste?
Yes. Precision routing minimizes off-cuts and rework, helping preserve material yield and reducing scrap — particularly valuable when working with costly laminate and solid surface materials.
Is the EM 2480 suitable for high-volume institutional production?
Yes. The machine is engineered for continuous duty and repeatable accuracy, making it suitable for large school, healthcare, and commercial cabinetry projects.
How do I determine if the EM 2480 fits my workflow?
Contact Centex Automation to assess your routing needs, material types, and production volume. We can recommend workflow integration and configuration options tailored to your shop.
