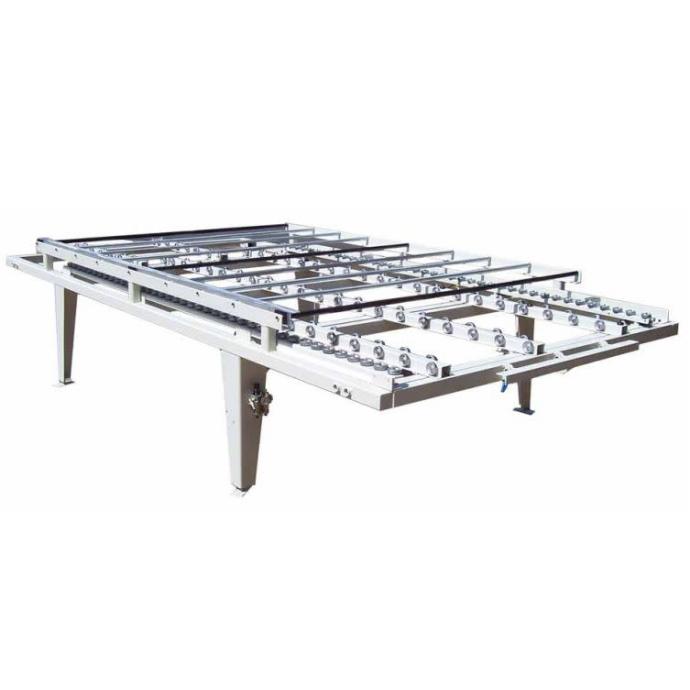

EVANS MIDWEST | EM 0366 Index Table
The Evans Midwest Model 0366 Index Table guarantees accurate and easy alignment of laminate and core stock. Its impeccable craftsmanship ensures that you can achieve the desired results effortlessly. In addition, its fully adjustable design accommodates materials up to 62″ wide and 145″ long, making it a versatile solution for your alignment needs.
The Model 0366 Index Table is an ideal complement to the 0206 Pinch Roller, providing seamless integration and optimal results. Additionally, its adjustable table guides ensure quick and accurate spacing between core stock and backslash for the cove bend, streamlining your production process.
Requiring only 80 PSI of air supply, the Evans Midwest Model 0366 Index Table offers an efficient and reliable solution for aligning laminate and core stock. Enhance your workflow with this user-friendly, versatile, and accurate alignment table.
Features:
- Saves Time, Money And Eliminates Waste
- Precise Alignment Of Laminates With Core Stock
- Maximum Length: 12’
- Adjustable To Accommodate Countertops, Wall Paneling And Other Pieces Up To 62” X 142”
- Pneumatically Operated Core Positioning
- Push Button Pneumatic Controls
- Includes Filter Regulator
Specifications:
Max Length: |
10’ |
Max Width: |
62” |
Working Height: |
30” |
Air Requirements: |
80 PSI |
Controls: |
Pneumatic Push Button |
Footprint: |
160” x 68” |
Shipping Weight: |
980 lbs |
Specifications
EVANS MIDWEST EM 0366 Index Table – Frequently Asked Questions
What is the EVANS MIDWEST EM 0366 Index Table used for?
The EVANS MIDWEST EM 0366 Index Table is a precision material handling accessory that provides controlled panel positioning and indexing during cutting, drilling, routing, and assembly operations. It enhances workflow accuracy and repeatability in high-volume casework and panel production environments.
Who should use the EM 0366 Index Table?
This machine is ideal for laminate casework manufacturers, cabinet shops, institutional woodworking facilities, school and university millwork programs, and commercial panel fabrication operations that require precise material staging and transfer between workstations.
What materials can be used with the EM 0366?
The index table supports plywood, MDF, particleboard, laminated panels, high-pressure laminate (HPL), and other sheet goods common in cabinetry, architectural millwork, and laminate casework production.
How does the index table improve workflow accuracy?
The EM 0366 provides controlled incremental positioning (indexing) of panels, enabling consistent alignment for repetitive machining tasks. This reduces setup variation, improves dimensional consistency, and enhances overall production quality.
Where does the EM 0366 fit in the casework production workflow?
The EM 0366 Index Table is typically integrated between material handling, cutting, and machining stations — such as panel saws, routers, drill presses, and edge finishing equipment — to stage and index panels for precise downstream processing.
Is the EVANS MIDWEST EM 0366 Made in the USA?
Yes. The EM 0366 Index Table is proudly manufactured in the United States, aligning with domestic procurement requirements for schools, government facilities, and institutional buyers.
How does the EM 0366 improve production efficiency?
By providing repeatable, controlled panel indexing, the EM 0366 reduces manual repositioning, minimizes operator error, and increases throughput — especially in high-volume environments with repetitive panel processing tasks.
Can the index table help reduce material waste?
Yes. Consistent positioning minimizes miscuts and rework that can lead to scrap, improving material yield and protecting profit margins on costly laminate panels and substrates.
Does the EM 0366 enhance workplace safety?
Yes. By reducing manual panel adjustments and providing a stable staging platform, the index table lowers physical strain and the risk of injury during repetitive handling tasks.
Is the EM 0366 compatible with other EVANS MIDWEST equipment?
Yes. It can be integrated into complete laminate panel production lines alongside cutting stations, vacuum stands, pinch rollers, routers, edge applicators, and finishing systems to support a continuous workflow.
How do I know if the EM 0366 Index Table is right for my shop?
If your facility performs repetitive panel processing and seeks improved positioning precision and throughput, contact Centex Automation to evaluate your workflow and recommend the appropriate configuration.
