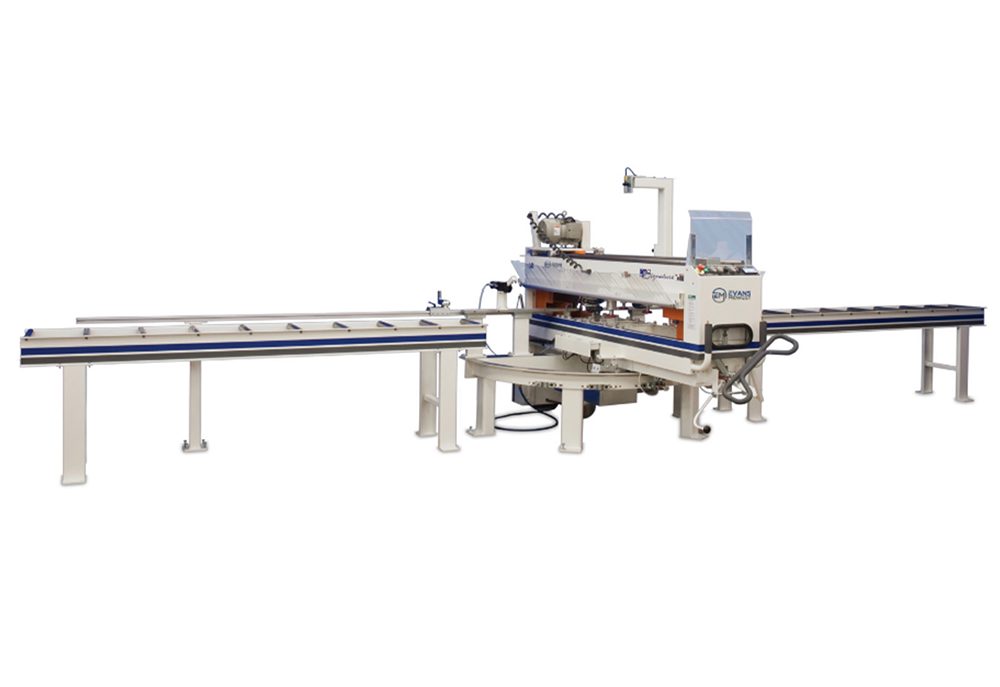

Evans Midwest CS XL Signature™ Cutting Station is a high-performance postforming miter saw engineered to accommodate a wide range of kitchen countertop and vanity sizes. The CS XL provides an overall cutting capacity of 53.5 inches (1360 mm) at 90° and 37.5 inches (950 mm) at 45°, with a maximum backsplash height of 4.875 inches (124 mm) measured from the bottom of the deck.
Evans Midwest Cutting Stations are well known for producing fast, accurate miter cuts and drawbolt mortises in postformed countertop fabrication. A single operator can complete a miter joint with integrated drawbolt mortises in under three minutes, reducing handling time, minimizing operator fatigue, and helping prevent product damage.
With more than 50 years of manufacturing experience, Evans Midwest continues to refine its equipment as fabrication technology advances. The CS XL Signature™ Cutting Station is available in both CS XL and XLT configurations, offering proven performance backed by decades of industry expertise.
Standard Features
-
Upper and lower frames machined in a single setup at Evans Midwest’s advanced manufacturing facility
-
Fixed stops at 22.5°, 45°, and 90° (right- and left-hand sides)
-
Pneumatic locking pin
-
5 HP saw motor with heavy-duty arbor assembly
-
Variable speed forward/reverse drive
-
Router system with four (4) router motors, guiding template, and rotating template pin with ball bearing
-
Two (2) pneumatic hold-down clamps per side
-
OSHA-recognized Safety Awareness Barriers
-
Heavy-duty rear fence
-
Three (3) dust collection ports
-
Plexiglass safety shield
-
Ergonomic low-profile control panel with sure-grip operator handles
-
16-inch (406 mm) saw blade and four (4) router bits
-
Safety interlocks and emergency stop
Optional Equipment
-
Standard and heavy-duty roller conveyors
-
Specialty wheel conveyors
-
Custom fences with nip-over stops
-
TigerStop electronic fence with automatic positioning
-
Laser guideline kit
-
Dust manifold
-
Variable miter kit with digital readout
-
Backsplash clamps
-
Support rings for short parts
-
Dust enclosure kit
-
Fifth router motor kit
Evans Midwest Cutting Stations are fabricated, welded, machined, assembled, and tested at the company’s 45,000-square-foot manufacturing facility in Minneapolis, Minnesota, using advanced machining and fabrication technology.
This fully integrated production process—from raw material sourcing through final shipment—ensures consistent quality control and tight manufacturing tolerances.
Precision Construction Details
King Pin & Bearing Assembly:
A large-diameter king pin with precision bearing mounted in a machined pocket provides stability and smooth rotation on the lower frame.
Saw Carriage:
Mounted on turned, ground, and polished rails with bronze bearings for long-term durability and dependable performance.
Arbor Assembly:
Heavy-duty arbor supported by two precision ball bearings housed in a machined cast iron assembly. Each unit is pre-assembled and bench-tested for vibration-free operation.
Lower Frame Weldment:
Top surface machined flat to ±0.005" for smooth, accurate operation.
Rear Fence:
Front edge machined straight to ±0.0025" to maintain precise cutting accuracy.
Mazak CNC Vertical Mill:
Upper and lower frames machined in a single setup to preserve alignment and maintain tight tolerances.
Specifications
EVANS MIDWEST CS-XL Cutting Station – Frequently Asked Questions
What is the EVANS MIDWEST CS-XL Cutting Station used for?
The EVANS MIDWEST CS-XL Cutting Station is a heavy-duty panel processing solution designed for laminate casework manufacturers and institutional cabinet shops. It provides accurate, repeatable cutting of plywood, MDF, particleboard, melamine, and laminated panels used in school casework, hospital cabinetry, and commercial millwork applications.
Who should consider the CS-XL Cutting Station?
The CS-XL is ideal for production cabinet shops, educational woodworking programs, correctional facility shops, and government institutions that require consistent throughput, dimensional accuracy, and long-term durability in panel sizing operations.
What materials can the CS-XL process?
The CS-XL is engineered to cut sheet goods commonly used in casework production, including plywood, MDF, particleboard, melamine panels, and high-pressure laminate (HPL) surfaced materials.
How does the CS-XL improve laminate casework production?
Accurate panel sizing is critical in laminate cabinet manufacturing. The CS-XL enhances workflow efficiency by reducing rework, minimizing material waste, and ensuring tight tolerances that support smooth edge banding, machining, and assembly processes.
Is the EVANS MIDWEST CS-XL Made in the USA?
Yes. The CS-XL Cutting Station is proudly manufactured in the United States, making it an excellent fit for schools, municipalities, and government buyers that prioritize domestic sourcing and long-term parts support.
What makes the CS-XL suitable for school and institutional environments?
The CS-XL features industrial-grade construction designed for daily production use. Its structural rigidity and safety-focused design make it appropriate for educational woodworking labs and institutional production facilities.
How does the CS-XL compare to standard panel saws?
Unlike general-purpose panel saws, the CS-XL functions as a dedicated cutting station engineered for repeatable, production-level casework manufacturing. It emphasizes stability, workflow integration, and consistent output.
Can the CS-XL support high-volume cabinet production?
Yes. The CS-XL is built for continuous-duty operation, making it suitable for large school projects, healthcare millwork packages, and commercial casework production runs.
How does the CS-XL help reduce scrap and material waste?
Precise cutting accuracy reduces dimensional errors that lead to scrap. For operations working with melamine and HPL panels, this improves yield and protects profit margins.
Where does the CS-XL fit in a complete casework production line?
The CS-XL serves as the foundational panel processing step. Accurate sizing at this stage ensures downstream CNC machining, edge banding, drilling, and assembly operations perform efficiently.
Is the CS-XL compatible with existing shop layouts?
Yes. The cutting station can be integrated into established material handling systems and production workflows to centralize and streamline panel processing.
Why choose EVANS MIDWEST cutting stations?
EVANS MIDWEST machines are engineered for durability, long-term reliability, and industrial-grade performance. For laminate casework manufacturers and institutional buyers, this means dependable operation and U.S.-based support.
How do I know if the CS-XL is the right size cutting station for my shop?
The CS-XL is well-suited for mid-to-high production cabinet shops producing laminate casework. Contact Centex Automation to review your production volume, material types, and workflow requirements for proper configuration.
