Quality affordable dust collection solution.

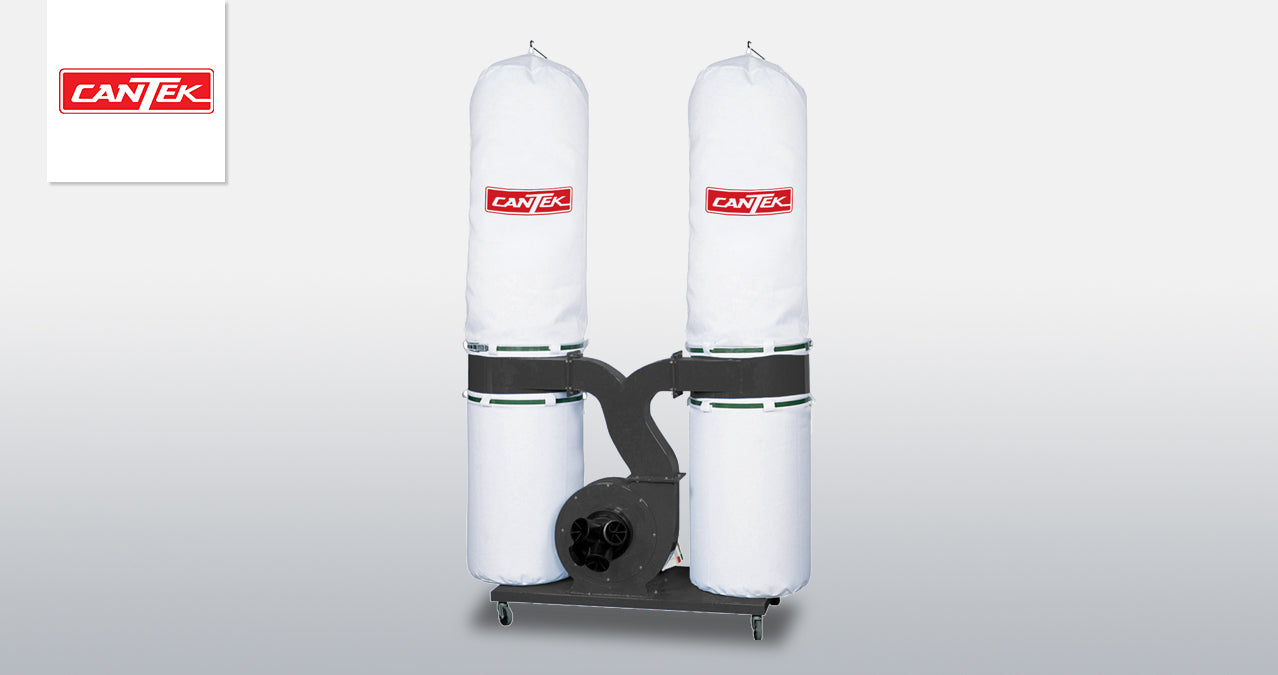

The Cantek PDC207 7HP Dust Collector is ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on casters to be taken to where it is needed in the shop.
Why Cantek PDC207 7HP Dust Collector?
- 5 HP generating 3600 CFM.
- The base is mounted on casters to be moved around the shop to where it is needed.
- Durable cotton filter bags. (Bottom plastic disposal bags are optional)
- Magnetic starter included.
Key Advantages
- 5 HP Motor
- 3600 CFM
- 10″ main inlet with removable outlet with (5) 4″ ports
- 5 micron upper filter bags and 30 micron collection bags
Specifications
CFM |
3600 CFM |
Motor |
7.5 HP |
Main inlet diameter |
10″ |
Connector inlet diameter |
(5) 4″ |
Fan diameter |
16” |
Static pressure |
17.78” of water |
Top filter bags (2) |
5 mictron (26.8” dia. x 63.8” long) |
Bottom collection bags (2) |
30 micron (26.8” dia. x 35.4” long) |
Net weight |
304 lbs |
Shipping weight |
392 lbs |
Shipping dimensions |
64″ x 33″ x 37″ |
Noise Level |
90dB |
Machine electrics |
230/3/60 = 22 amps575/3/60 = 9 amps |
Specifications
CFM | 3673 CFM |
Motor | 7.5 HP |
Main inlet diameter | 8″ |
Connector inlet diameter | (5) 4″ |
Bag Volume | 26.2 cubic feet |
Static pressure of water | 10.55 inch |
Top bags (2) | 26 ¾” x 60″ |
Bottom bags (2) | 26 ¾” x60″ |
Net weight | 506 lbs |
Shipping weight | 616 lbs |
Shipping dimensions | 68″ x 33″ x 33″ |
Noise Level | 90dB |
