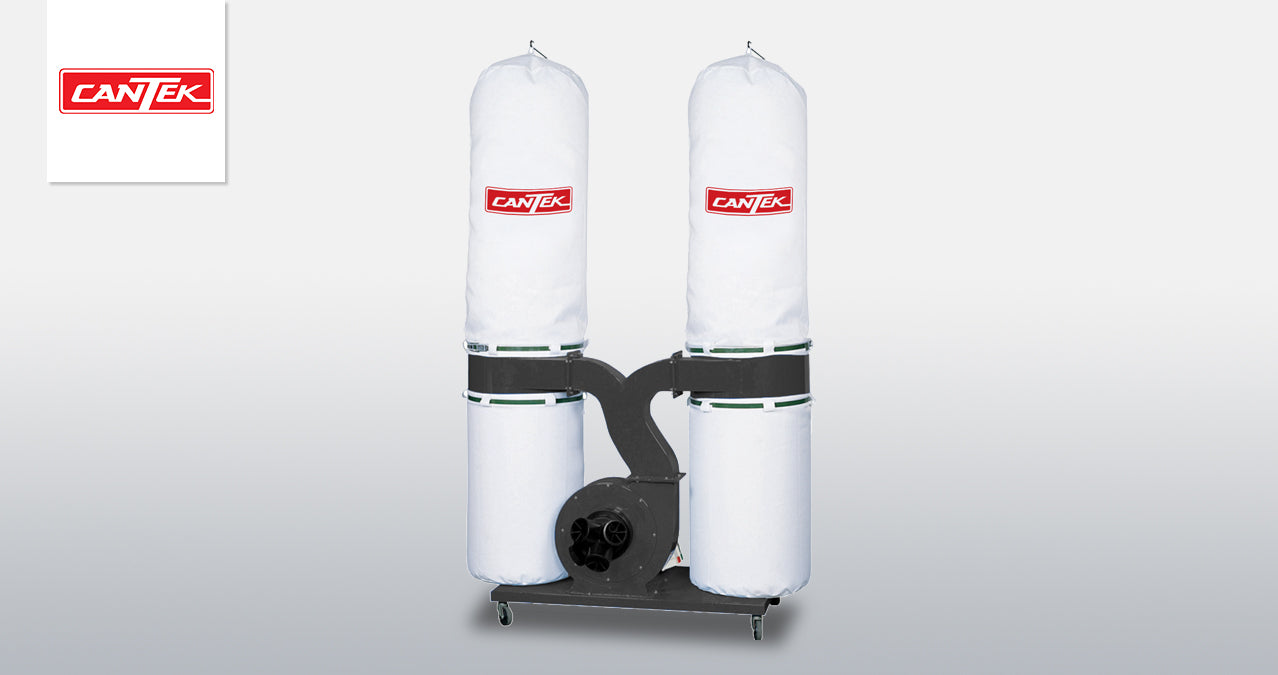

CANTEK | PDC205 5HP Dust Collector
Quality affordable dust collection solution.
The Cantek PDC205 5HP Dust Collector is ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on casters to be taken to where it is needed in the shop.
Why Cantek PDC205 5HP Dust Collector?
- 5 HP generating 3200 CFM.
- The base is mounted on casters to be moved around the shop to where it is needed.
- Durable cotton filter bags. (Bottom plastic disposal bags are optional)
- Magnetic starter included.
Key Advantages
- 5HP Motor
- 3200 CFM
- 8″ main inlet with removable outlet with (3) 4″ ports
- 5 micron upper filter bags and 30 micron collection bags
Specifications
CFM |
3200 CFM |
Motor |
5 HP |
Main inlet diameter |
8” |
Connector inlet diameter |
(3) 4″ |
Fan diameter |
14” |
Static pressure |
19” of water |
Top filter bags (2) |
5 micron (20” dia. x 48” long) |
Bottom collection bags (2) |
30 micron (20” dia. x 33.5” long) |
Net weight |
253 lbs |
Shipping weight |
363 lbs |
Shipping dimensions |
46” x 23” x 23” |
Noise Level |
90dB |
Machine electrics |
230/3/60 = 15.2 amps575/3/60 = 6.1 amps |
Specifications
CFM | 2863 CFM |
Motor | 5 HP |
Main inlet diameter | 7″ |
Connector inlet diameter | (4) 4″ |
Bag Volume | 20.97 cubic feet |
Static pressure of water | 10.55 inch |
Top bags (2) | 24″ x 42″ |
Bottom bags (2) | 24″ x 42″ |
Net weight | 253 lbs |
Shipping weight | 363 lbs |
Shipping dimensions | 57″ x 30″ x 31″ |
Noise Level | 85dB |
CANTEK PDC205 5HP Dust Collector – FAQs
What type of shop is the CANTEK PDC205 5HP dust collector designed for?
The CANTEK PDC205 5HP dust collector is designed for professional woodworking shops, cabinet manufacturers, and small-to-mid production facilities that require reliable, high-volume dust extraction for multiple machines.
What machines can be connected to the PDC205?
The PDC205 can support wide belt sanders, sliding table saws, CNC routers, jointers, planers, shapers, and edgebanders when properly ducted and sized according to airflow requirements.
How much power does the CANTEK PDC205 use?
The PDC205 is powered by a 5 horsepower industrial motor designed for consistent performance and continuous-duty operation in professional shop environments.
Is the PDC205 suitable for central dust collection systems?
Yes, the PDC205 is commonly configured as a central dust collection unit for small to medium-sized shops, supporting multiple drops with properly engineered ductwork.
What is the advantage of a 5HP dust collector in a cabinet shop?
A 5HP dust collector offers significantly greater airflow and static pressure capability than smaller portable collectors, allowing it to handle multiple machines while maintaining effective chip and fine dust capture.
What type of filtration does the CANTEK PDC205 use?
The PDC205 uses high-efficiency filtration designed to capture fine woodworking dust, helping maintain cleaner air quality and compliance with shop safety standards.
Can the PDC205 handle fine MDF and sanding dust?
Yes, when paired with proper filtration and duct sizing, the PDC205 is suitable for capturing fine MDF dust and sanding particles generated in cabinet and millwork operations.
Is the PDC205 designed for continuous operation?
Yes, the industrial-grade 5HP motor and heavy-duty construction are built for continuous operation in professional production environments.
What electrical requirements does the PDC205 have?
The CANTEK PDC205 requires three-phase electrical service appropriate for a 5HP motor. Final electrical requirements should be confirmed prior to installation.
How does the PDC205 compare to smaller 3HP dust collectors?
Compared to 3HP systems, the PDC205 provides higher airflow capacity, better multi-machine performance, and stronger static pressure for longer duct runs.
Can the PDC205 support longer duct runs?
Yes, the increased horsepower allows the PDC205 to maintain airflow across longer duct runs when the system is properly engineered.
Is the CANTEK PDC205 appropriate for growing shops?
Yes, many shops choose a 5HP dust collector to allow future expansion without immediately stepping up to a larger industrial system.
What maintenance is required for the PDC205?
Routine maintenance includes inspecting and cleaning filters, checking duct connections, and regularly emptying collection bins to maintain optimal performance.
How does the PDC205 improve shop air quality?
By capturing dust at the source and filtering fine particles, the PDC205 helps reduce airborne contaminants, improving overall shop cleanliness and working conditions.
Who should choose the CANTEK PDC205 5HP dust collector?
The PDC205 is ideal for professional woodworking operations that need dependable central dust collection capacity without moving to a larger 7.5HP or 10HP industrial system.
