CANTEK | PDC203 3HP Dust Collector
Original price
$1,330.00
-
Original price
$1,330.00
Original price
$1,330.00
$1,330.00
-
$1,330.00
Current price
$1,330.00
Quality affordable dust collection solution.

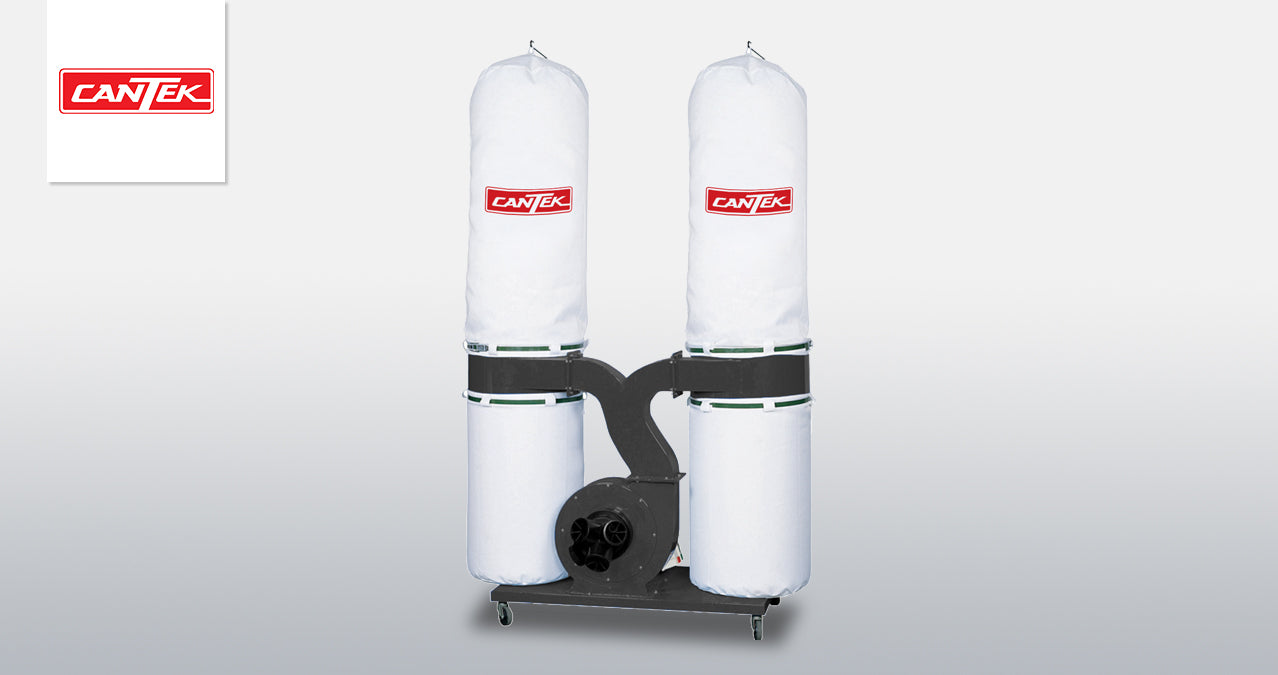

The Cantek PDC203 3HP Dust Collector is ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on casters to be taken to where it is needed in the shop.
Why Cantek PDC203 3HP Dust Collector?
- 3HP generating 2800 CFM.
- The base is mounted on casters to be moved around the shop to where it is needed.
- Durable cotton filter bags. (Bottom plastic disposal bags are optional)
- Magnetic starter included.
Key Advantages
- 3HP Motor
- 2800 CFM
- 8″ main inlet with removable outlet with (3) 4″ ports
- 5 micron upper filter bags and 30 micron collection bags
Specifications
CFM |
2800 CFM |
Motor |
3 HP |
Main inlet diameter |
8” |
Connector inlet diameter |
(3) 4” |
Fan diameter |
14” |
Static pressure |
14.4” of water |
Top filer bags (2) |
5 micron (20” dia. x 48” long) |
Bottom collection bags (2) |
30 micron (20” dia. x 33.5” long) |
Electrics |
230/1/60 = 17 Full Load Amps |
Net weight |
154 lbs |
Shipping weight |
163 lbs |
Shipping dimensions |
46” x 23” x 23” |
Noise Level |
85dB |
Specifications
CFM | 1883 CFM |
Motor | 3 HP |
Main inlet diameter | 6″ |
Connector inlet diameter | (3) 4″ |
Bag Volume | 10.48 cubic feet |
Static pressure of water | 9.26 inch |
Top bags (2) | 18.9″ x 31 ½” |
Bottom bags (2) | 18.9″ x 31 ½” |
Electrics | 230/1/60 = 17 Full Load Amps |
Net weight | 169 lbs |
Shipping weight | 180 lbs |
Shipping dimensions | 48″ x 23″ x 23″ |
Noise Level | 80dB |
