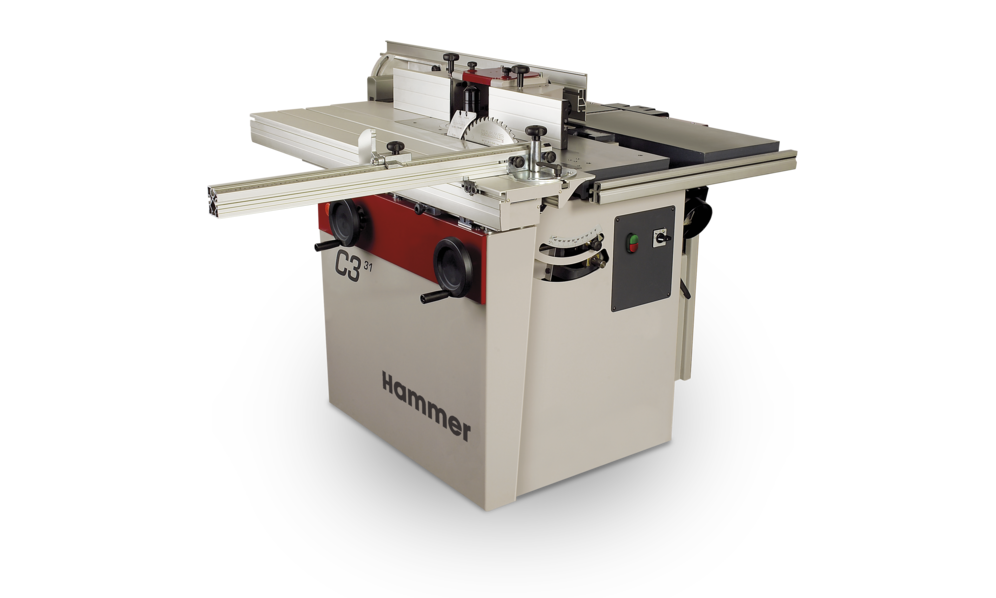

Hammer | C3 31 Combination Machine

Your Workshop on Only 1.5 m² Extremely Compact

The Hammer C3 31 Combination Machine delivers planing, cutting, moulding, and optional mortising for solid wood and panel materials in a compact 1.5 m² footprint. With a 12 13/64" planing width, 34 1/16" cutting length, and a 3-knife quick-change cutterblock, it ensures precision and quick changeovers, ideal for small workshops.

Key Features

Highlights

• 3 Knife Quick-Change Cutterblock System: Enables rapid blade changes without adjustments for excellent planed surfaces.
• X-Roll Aluminum Sliding Table: Ribbed, anodised profile ensures precision cutting with a 10-year warranty.
• Silent-Power® Spiral Cutterblock: Optional feature reduces noise by 50%, extends blade life up to 20 times, and ensures tear-free planing.

Details

• Solid Planer Tables: Ribbed cast iron tables match 12 13/64" planing width for precise workpiece guidance.
• Quick Depth of Cut Adjustment: Large handle allows up to 4 mm cut depth adjustments without locks.
• Dual Opening Planer Tables: Space-saving, ergonomic design with simultaneous table tilting and automatic locking at 0°.
• Perfect Extraction Technology: Optimized dust extraction hood ensures a clean working surface.
• Planer Fence: Aluminum fence tilts 90°–45° with fine-adjustable stops for precise joining and bevelling.
• Table Extension System: Tool-free extensions up to 62 63/64" (400 or 800 mm per side) for large workpieces.
• Maximum Thicknessing Height: 8 55/64" (225 mm) supports large workpieces, with optional digital handwheel for 0.1 mm precision.
• Stable Saw Aggregate: Supports 250–315 mm blades with 4 1/16" cutting height, easily adjustable.
• Rip Fence: Adjustable 0–600 mm with flat position for thin workpieces.
• Spindle Moulder Unit: 30 mm spindle with four speeds (3,000/6,000/8,000/10,000 rpm) and forward/reverse run for safety.
• Spindle Fence: Supports tools up to 8 21/32" diameter, with –5 to +25 mm depth adjustment and 120 mm extraction connection.
• MF Spindle Quick-Change System: Allows rapid spindle swaps (optional).
• Grooving, Slot, and Tenoning: Optional dado tooling for 8–19.5 mm wide grooves and slots.
• Scoring Unit: Optional mechanically driven unit (Ø 80 mm) for chip-free cuts in laminated workpieces.
• Saw Blade Tilt 90°–45°: Ensures precise mitre cuts with end stops at 90° and 45°.
• Crosscut Fence: 35 7/16" fence for +45° to –45° mitre cuts with precise stops.
• Mortising Unit: Optional attachment for drilling and chiselling tasks.
• Minimal Space Requirement: Efficient design with optional rolling carriage for mobility.
