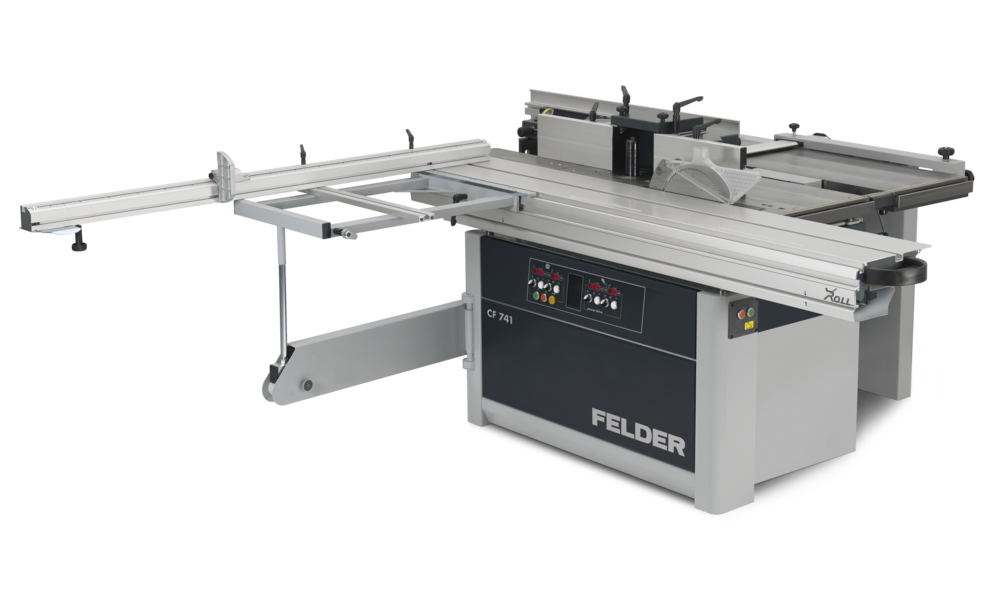

Felder | CF 741 professional Combination Machine

A Perfect Combination of 5 Stand Alone Machines

The Felder CF 741 professional Combination Machine enhances woodworking with a 16 9/64" planing width and extended 80 45/64" to 98 27/64" cutting length. Integrating planing, shaping, cutting, drilling, and optional mortising for solid wood and panel materials, it features an outrigger table and solid cast iron construction for precision and efficiency in a 2.5 m² footprint.

Key Features

Highlights

• X-Roll Precision Guiding System: High-quality format sliding table with 10-year warranty ensures smooth, maintenance-free operation.
• Silent-Power® Spiral Cutterblock: Optional feature reduces noise by 50%, extends blade life up to 20 times, and ensures tear-free planing.
• Quick-Change System for Shaper Spindle: Enables rapid spindle swaps (30, 32, 35, 40, 50 mm, or 1¼") and high-speed router spindle at 15,000 rpm.

Details

• Power-Drive (Planer, Saw, Shaper): Optional electrical height and angle adjustments with LED display for precise settings.
• Spindle Fence “230”: Supports tools up to 9 1/16" diameter, with –5 to +25 mm fine adjustment and 120 mm extraction connection.
• MULTI-Fine Adjustment System: Enables quick, parallel fence adjustments with automatic repeat settings (optional).
• Easy-Glide Tilting System: Maintenance-free, double-suspension system with 6-year guarantee for precise, backlash-free tilting.
• Table Opening 9 1/16": Supports large panel raising and slot/tenoning tools below the table surface for safety.
• Slot and Tenoning: X-Roll sliding table ensures precision and smoothness for heavy-duty tasks, with 10-year warranty.
• Safety Bar Guides: Optional guides for safe end-grain work.
• Spindle Shaper Unit “700”: 4 17/32" usable height, four speeds (3,500/6,500/8,000/10,000 rpm), and vibration-absorbing cast iron construction.
• Dual Dust Extraction: Via shaper fence and below-table chip collection for clean operation.
• Power Feeder: Ensures clean, precise shaping, with tilt-away device for accessibility.
• Felder Saw Unit “104”: 4 3/32" cutting height with 12 13/32" blade, electronically balanced arbor, and below-table extraction.
• Scoring Unit: Optional mechanically or electrically driven unit (Ø 3 15/16") for chip-free cuts in laminated panels.
• Grooving Work: Optional dado tooling for adjustable grooves up to 19.5 mm wide.
• Outrigger Table: 1,100 mm table supports large workpieces for precise cuts.
• Table Extension: Tool-free aluminum extensions for large workpieces.
• Pneumatic Workpiece Holder: Offers flexible clamping with 3 47/64" height and 661 lbs force.
• EGL 1350: Patented double cut mitre gauge for precise angle cuts with integrated computer, adjustable up to 53 5/32".
• Crosscut Fence: 102 23/64" fence for +45° to –45° cuts with precise stops.
• Planer Fence: Tilts 90°–45° with fine-adjustable stops for precise joining and bevelling.
• Planer Guard EURO Standard: Space-saving guard stabilizes workpieces during jointing and bevelling.
• Mortising Unit: Optional heavy-duty attachment with transport unit for easy mounting.
