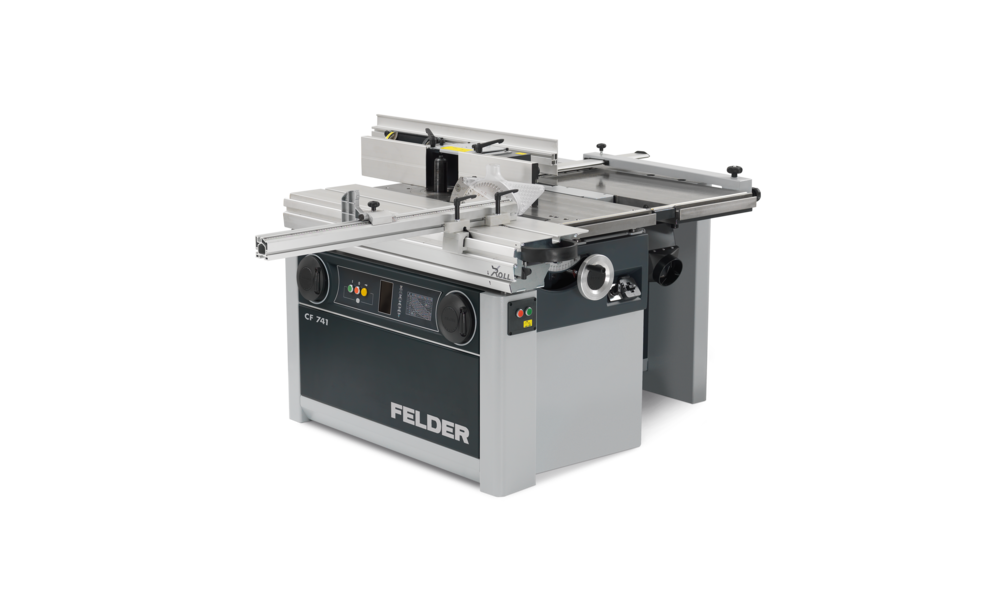

Felder | CF 741 Combination Machine

A Perfect Combination of 5 Stand Alone Machines

The Felder CF 741 Combination Machine integrates planing, shaping, cutting, drilling, and optional mortising for solid wood and panel materials in a compact 2.5 m² footprint. With a 16 9/64" planing width, 51 3/16" to 98 27/64" cutting length, and a solid cast iron table, it ensures precision and quick changeovers for professional woodworking.

Key Features

Highlights

• X-Roll Precision Guiding System: High-quality format sliding table with 10-year warranty ensures smooth, maintenance-free operation.
• Silent-Power® Spiral Cutterblock: Optional feature reduces noise by 50%, extends blade life up to 20 times, and ensures tear-free planing.
• Quick-Change System for Shaper Spindle: Enables rapid spindle swaps (30, 32, 35, 40, 50 mm, or 1¼") and high-speed router spindle at 15,000 rpm.

Details

• Power-Drive (Planer, Saw, Shaper): Optional electrical height and angle adjustments with LED display for precise settings.
• Spindle Fence “230”: Supports tools up to 9 1/16" diameter, with –5 to +25 mm fine adjustment and 120 mm extraction connection.
• MULTI-Fine Adjustment System: Enables quick, parallel fence adjustments with automatic repeat settings (optional).
• Easy-Glide Tilting System: Maintenance-free, double-suspension system with 6-year guarantee for precise, backlash-free tilting.
• Table Opening 9 1/16": Supports large panel raising and slot/tenoning tools below the table surface for safety.
• Slot and Tenoning: X-Roll sliding table ensures precision and smoothness for heavy-duty tasks, with 10-year warranty.
• Safety Bar Guides: Optional guides for safe end-grain work.
• Spindle Shaper Unit “700”: 4 17/32" usable height, four speeds (3,500/6,500/8,000/10,000 rpm), and vibration-absorbing cast iron construction.
• Dual Dust Extraction: Via shaper fence and below-table chip collection for clean operation.
• Power Feeder: Ensures clean, precise shaping, with tilt-away device for accessibility.
• Felder Saw Unit “104”: 4 3/32" cutting height with 12 13/32" blade, electronically balanced arbor, and below-table extraction.
• Scoring Unit: Optional mechanically or electrically driven unit (Ø 3 15/16") for chip-free cuts in laminated panels.
• Grooving Work: Optional dado tooling for adjustable grooves up to 19.5 mm wide.
• Outrigger Table: Optional 1,100 mm table supports large workpieces for precise cuts.
• Table Extension: Tool-free aluminum extensions for large workpieces.
• Pneumatic Workpiece Holder: Offers flexible clamping with 3 47/64" height and 661 lbs force.
• EGL 1350: Patented double cut mitre gauge for precise angle cuts with integrated computer, adjustable up to 53 5/32".
• Crosscut Fence: 43 5/16" fence for +45° to –45° cuts with precise stops.
• Planer Fence: Tilts 90°–45° with fine-adjustable stops for precise joining and bevelling.
• Planer Guard EURO Standard: Space-saving guard stabilizes workpieces during jointing and bevelling.
• Mortising Unit: Optional heavy-duty attachment with transport unit for easy mounting.
