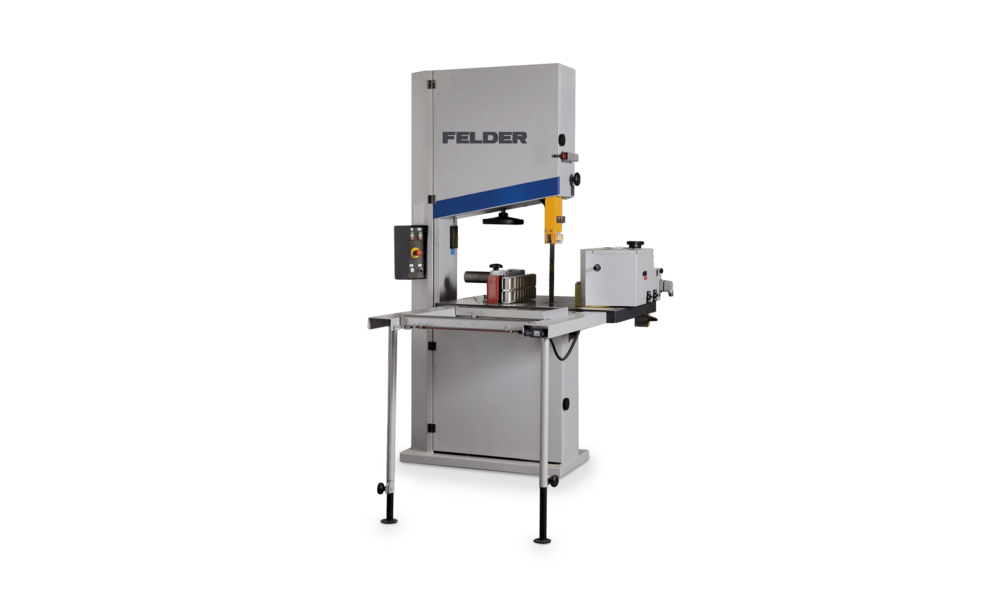

Felder | FB 740 RS Bandsaw

High-Performance Bandsawing for Industrial Precision

The Felder FB 740 RS Resaw Line Bandsaw offers outstanding performance for solid wood materials, featuring a 450 mm cutting height, 710 mm rip capacity, and a 740 mm flywheel diameter. With an enclosed steel chassis, continuous saw blade cleaning, and a tiltable table, it ensures high cutting speeds (1740 m/min) and precision for industrial applications.

Key Features

Highlights

• Large Cutting Height: 450 mm capacity handles thick workpieces like veneers and stair stringers with ease.
• Automatic Feed Options: Three power feeders (RA 21 CP, RA 200 CPM, RA 260 CPM) with speeds up to 40 m/min for continuous cutting.
• Solid Cast Iron Flywheel: Cambered design ensures stability and smooth operation for industrial use.

Details

• Table Tilt: Adjustable up to 20° for versatile cutting angles.
• Dust Extraction: Dual 140 mm connections for efficient chip removal.
• Optional Bronze Guides: Lower and upper saw blade guides enhance durability and precision.
• Feeder Flexibility: RA 21 CP offers 10 speeds (2.5–40 m/min) for 160–230 mm cutting heights; RA 200/260 CPM provide 3.5–35 m/min for varied heights.
• Band Saw Blades: Optional 5365 mm length, 80 mm width blade for heavy-duty resawing.

Technical Specifications
