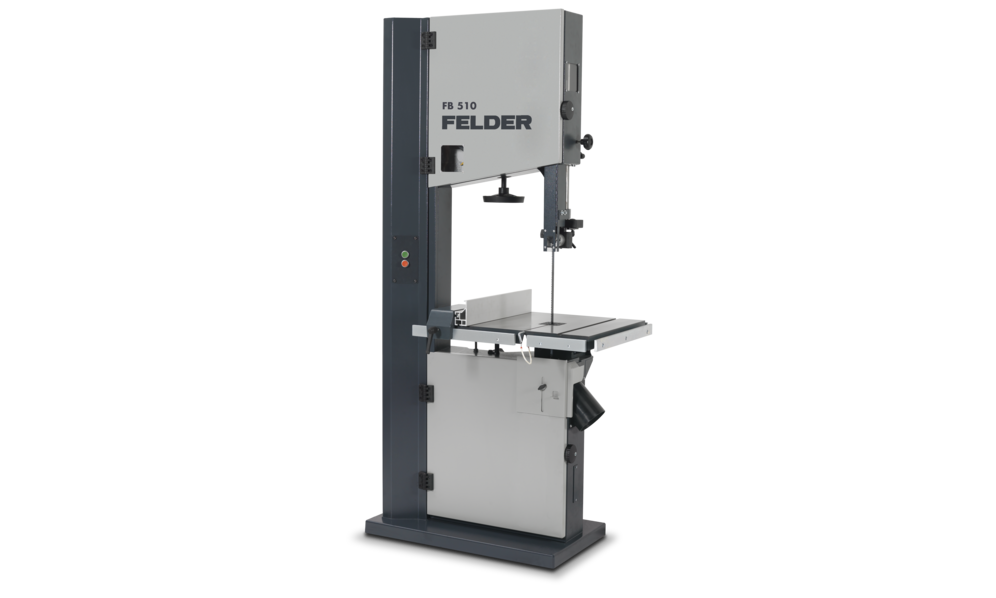

Felder | FB 510 Bandsaw

Precision Bandsawing for High-Performance Workshops

The Felder FB 510 Bandsaw with X-Life Ceramic Guides offers precise cutting for wood materials, ideal for small workshops with high-quality demands. Featuring a 16⅛" (410 mm) cutting height, 18⅞" (480 mm) rip capacity, and electronically balanced 19⅝" (500 mm) cast iron wheels, it ensures stability and smooth operation with a tiltable cast iron table (-10° to +45°).

Key Features

Highlights

• X-Life Ceramic Guides: Precision guides with ceramic rollers reduce friction and wear, ensuring consistent cutting quality and blade stability.
• Tiltable Cast Iron Table: Adjustable from -10° to +45° with a fine adjustable 90° stop for versatile cutting angles.
• High Cutting Height: 16⅛" (410 mm) capacity supports a wide range of woodworking projects.

Details

• Upper and Lower Blade Guides: Finely adjustable side and rear rollers enhance blade control and cutting accuracy.
• Aluminum Fence Plate: Provides precise and adjustable rip fence support, enhancing workpiece handling.
• Saw Blade Tension Indicator: Allows precise tension adjustment based on blade width (¼"–1⅛").
• Dust Extraction: Dual 4¾" (120 mm) connections for efficient chip removal.
• Optional Accessories: Includes a combination circle cutting and sanding device, and a mitre fence with adjustable angles (-45° to +45°).

Technical Specifications
