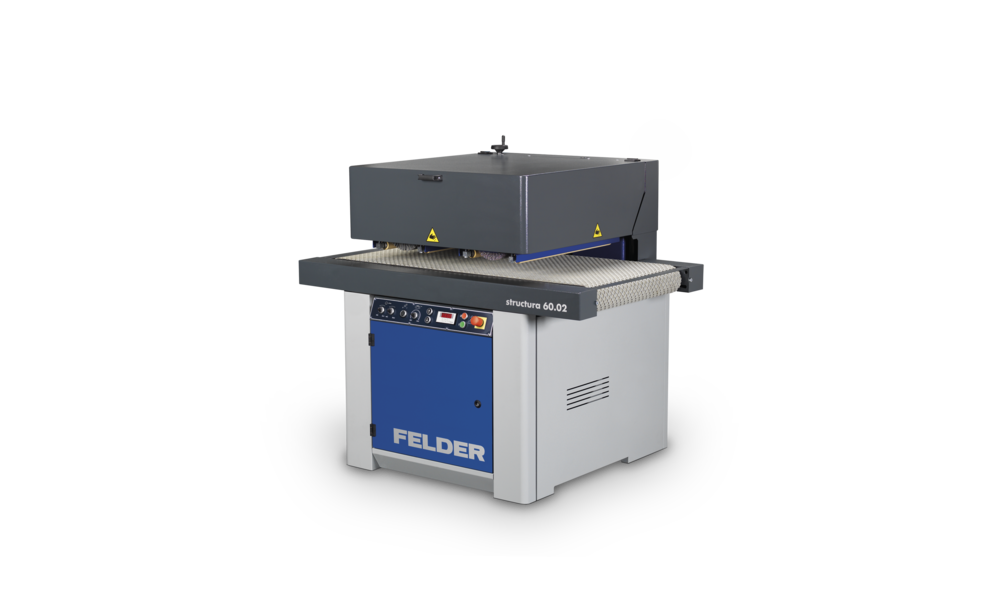

Hammer | structura 60.02 Brushing Machine

Robust Brushing for Enhanced Workpiece Finishes

The Felder structura 60.02 Brushing Machine delivers professional brushing for solid wood, panel, and plastic materials, enhancing surface texture and finish. With a 25 19/32" (650 mm) working width, a variable infeed height of 1/8" to 7 7/8" (3–200 mm), and dual brushing aggregates (steel and Tynex brushes), it handles large and oversized workpieces with precision and stability.

Key Features

Highlights

• Dual Brushing Aggregates: Powered by 4 kW (5.5 HP) motors, with a steel brush (D=7 7/8") and a Tynex brush (D=7 7/8", K60) for versatile surface structuring.
• Single-Sided Aggregate Mounting: Enables processing of extra-wide workpieces with a robust, stable chassis.
• Intuitive 7" Touchscreen Control: Optional control panel with 100 program memory spaces, plain text error messages, and maintenance intervals for maximum productivity.

Details

• Steel Brush Aggregate: First unit with 7 7/8" (200 mm) diameter steel brush, counter-rotating to workpiece feed, with electrical height and manual fine adjustment for precise depth of cut.
• Tynex Brush Aggregate: Second unit with 7 7/8" (200 mm) K60 Tynex brush, counter-rotating, with separate electrical height and manual fine adjustment.
• Optional Oscillation: 12 mm stroke, 60 oscillations/min, ideal for smooth transverse wood structuring and special effects.
• Variable Feed Speed: Adjustable from 2.5–10 m/min via control panel inverter for optimal results across wood types.
• Dust Extraction: Two 120 mm connections for efficient chip removal.
• Fold-Away Tables: Optional 39 3/8" infeed and outfeed tables with motorized function and repeat control for multiple passes.
• Automatic Feed Belt Centring: Ensures consistent workpiece alignment with a joint-free conveyor belt.
• Optional Upgrades: 5.5 kW motor, variable cutting speed (250–1500 rpm), and extended 9 27/32" (250 mm) opening height.

Technical Specifications
