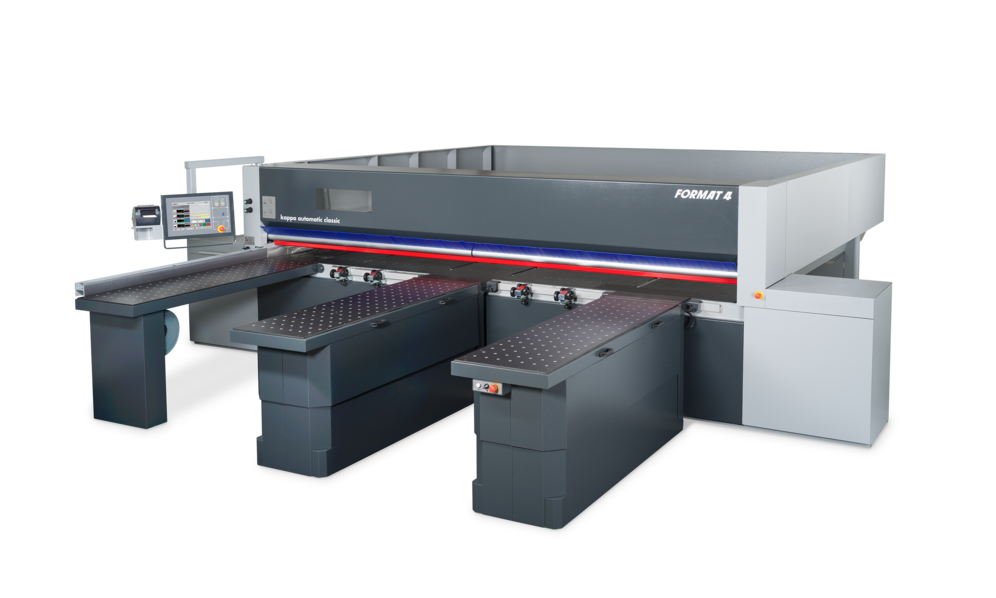

Format4 | kappa automatic classic Beam Saw

Efficient Precision Cutting for Panel Processing

The Format4 kappa automatic classic Horizontal Pressure Beam Saw with a 125 63/64" (3200 mm) cutting length offers precise panel sizing for wood and plastic materials. Equipped with a 12 19/32" (320 mm) main saw blade, a 2 43/64" (68 mm) blade projection, and a 7.5 kW motor, it ensures efficient cutting with a variable feed speed of 1–40 m/min, supported by an intuitive 15" touchscreen control.

Key Features

Highlights

• Innovative Front Lifting Table: Optional system replaces side tables with automated scissor lifting tables for enhanced efficiency.
• Double Measuring System: Solid steel panel pusher with magnet measurement band ensures maximum repeatability.
• Touchscreen Control: 15" TFT display with Windows 10 for quick, intuitive operation and software integration.

Details

• Scoring Unit: 1.1 kW motor with a 5 29/32" (150 mm) scoring blade, adjustable during operation for chip-free cuts.
• Pneumatic Pressure Beam: Adjustable up to 3 bar, secures workpieces and extracts dust/chips during cutting.
• Air Cushion Tables: Two moveable support tables with individually controllable fans for easy panel handling.
• Material Pusher: 25 m/min forward and 40 m/min return speed, with 6–7 roller tracks and clamps (opening height 3 5/32").
• Optional Extensions: Additional 165 23/64" (4200 mm) material pusher travel distance available.
