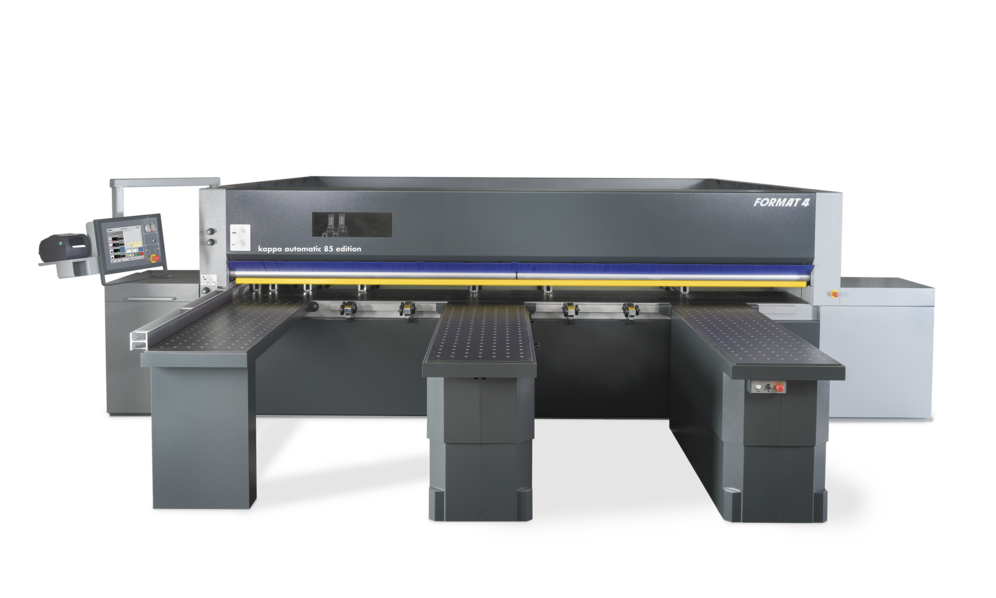

Format4 | kappa automatic 85 edition Beam Saw

High-Performance Precision Cutting for Panel Stacks

The Format4 kappa automatic 85 edition Horizontal Pressure Beam Saw delivers precise cutting for panel materials with a cutting length up to 169 19/64" (4300 mm) and a 3 11/32" (85 mm) saw blade projection. Featuring a 12 19/32" (320 mm) main saw blade, a 9 kW motor, and a variable feed speed of 1–60 m/min, it ensures high-quality cuts with a 15" TFT touchscreen control and robust steel construction.

Key Features

Highlights

• Innovative Front Lifting Table: Optional automated scissor lifting tables enhance efficiency for panel stack processing.
• Double Measuring System: Solid steel panel pusher with magnet measurement band ensures maximum repeatability.
• Touchscreen Control: 15" TFT display with Windows 10 for intuitive operation and software integration.

Details

• Scoring Unit: 1.1 kW motor with a 5 29/32" (150 mm) scoring blade, adjustable during operation for tear-free results.
• Pneumatic Pressure Beam: Adjustable up to 3 bar, secures workpieces and extracts dust/chips during cutting.
• Air Cushion Tables: Two support tables with individually controllable fans for easy panel handling.
• Material Pusher: 25/40 m/min forward/back speed, with 6–9 single-finger clamps (opening height 3 5/32") for secure clamping.
• Optional Extensions: Material pusher travel extendable to 169 19/64" (4300 mm).
