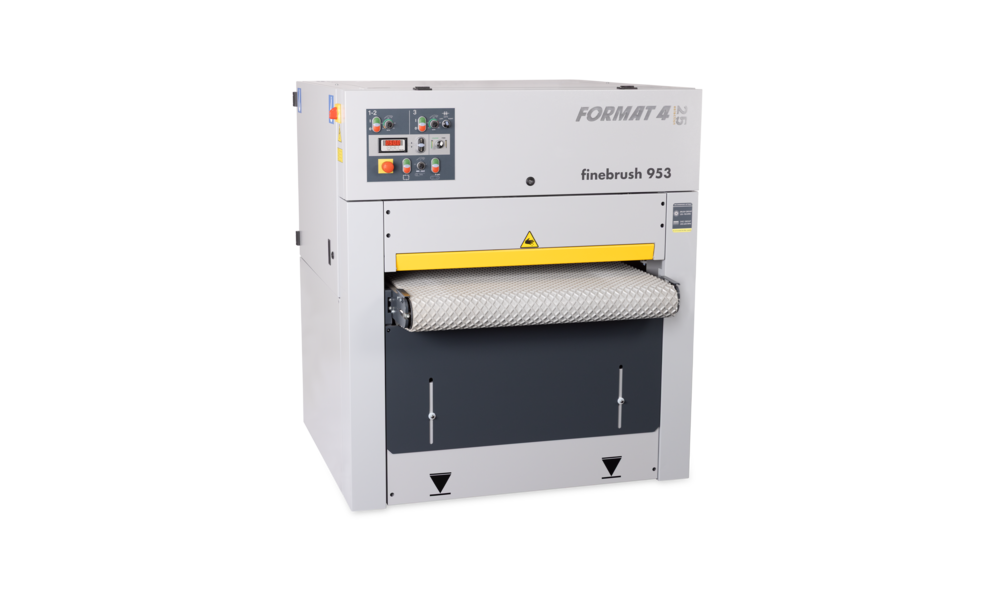

Format4 | finebrush 953 Brushing & Brush Sanding Machine

Efficient Brushing for Versatile Surface Finishing

The Format4 finebrush 953 Brushing Machine offers efficient surface finishing for wood and panel materials, eliminating time-consuming manual sanding. With a 1350 mm working width, 3–140 mm grinding height, and three brush units (two longitudinal, one disc), it provides homogeneous results for panelled doors, profiles, frames, and textured surfaces, featuring dual-grit brushes for fine and lacquer sanding.

Key Features

Highlights

• Three Brush Units: Two longitudinal brushes and one disc brush (250 mm diameter) with dual grits (180/320 and 180/360) for seamless fine and lacquer sanding without grit changes.
• Compact Footprint: Small space requirement ideal for any workshop size, with optional roller table extensions for larger workpieces.
• Intuitive Control Panel: Manual control with digital display for precise height adjustment in 0.1 mm increments and variable feed speed (1–5 m/min).

Details

• Longitudinal Sanding Brushes: 200 mm diameter brushes sand in longitudinal and transverse directions, with adjustable speed (150–600 rpm) and handwheel height adjustment.
• Disc Brush Unit: Two oscillating brushes (250 mm diameter) round sharp edges and clean internal corners, with adjustable speed (250–750 rpm) and standard oscillation control.
• Quick-Change Grinding Inserts: Easily exchangeable inserts reduce setup times significantly.
• Feed Table: Continuously vulcanized belt with honeycomb structure, adjustable height via control panel for 3–140 mm workpieces.
• Optional Cleaning Nozzles: Installable at the outfeed for dust-free preparation of workpieces.
• Roller Table Extensions: Optional 300 mm extensions on infeed and outfeed ends for enhanced workpiece support.

Technical Specifications
