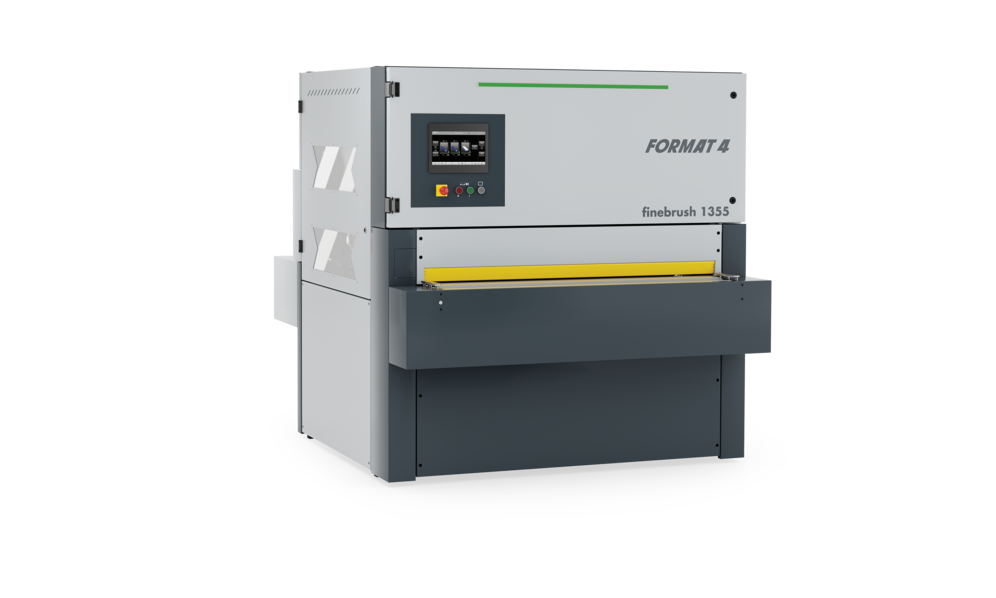

Format4 | finebrush 1355 Brushing & Brush Sanding Machine

Versatile Brushing for Universal Woodworking Applications

The Format4 finebrush 1355 Wide Belt Sander provides advanced brushing and sanding for solid wood and panel materials in industrial settings. With a 1350 mm working width, 3–140 mm grinding height, and five brush units (two longitudinal, two disc, one cleaning), it delivers homogeneous finishes for profiled or structured workpieces, optimized for fine sanding and lacquer preparation.

Key Features

Highlights

• Five Brush Units: Two longitudinal brushes, two disc brushes (240 mm diameter), and a Tampico cleaning brush, with dual grit sizes (180/320 and 180/360) for versatile sanding without grit changes.
• Fixed Infeed Table: 900 mm height for easy integration into processing lines and effortless operation.
• Touchscreen Control: 15" touchscreen with 100 program memory spaces, plain text error messages, and precise adjustments for maximum productivity.

Details

• Disc Brush Unit: Two units with 6 pads each, 240–250 mm diameter, for rotary grinding to round edges and clean internal corners.
• Oscillation Control: Standard 130 mm stroke, 8–55 rpm, ensures uniform brush utilization for consistent finishes.
• Quick-Change Grinding Inserts: Longitudinal and disc brush inserts (K180–K320) swap easily to minimize setup times.
• Vacuum Table: Optional 4 kW (5.5 HP) fan with vacuum feed belt secures smooth, small, or thin workpieces.
• Tampico Cleaning Brush: 280 mm diameter for dust-free finishes, ideal for profiled workpieces before lacquering.
• Optional Oscillating Cleaning Fan: Installable at machine outfeed for dust-free preparation in automatic painting systems.
• Automatic Feed Belt Centring: Joint-free conveyor belt with honeycomb structure for stable workpiece handling.
• Optional Roller Table Extensions: 300 mm infeed and outfeed extensions for larger workpieces.
• Network and Conveyor Integration: Optional preparation for conveyor systems and network connectivity.

Technical Specifications
