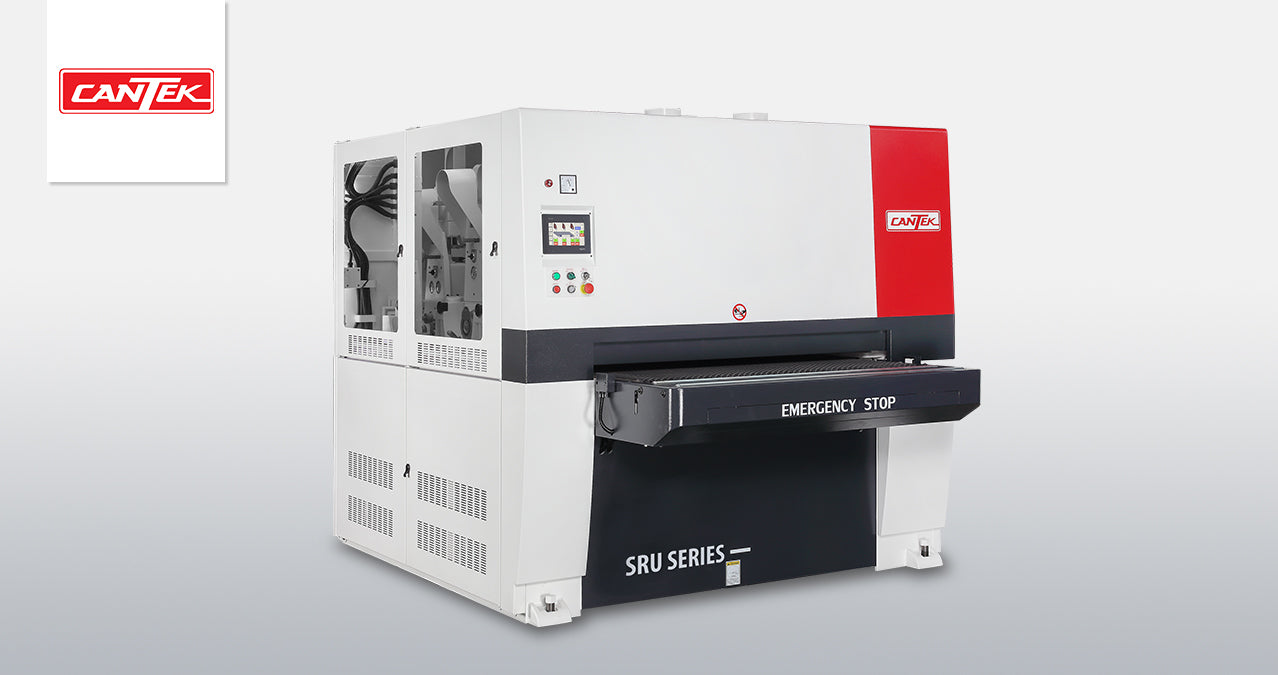

CANTEK | SRU SERIES Fixed Table Widebelt Sander
Whether you need an in-line or stand-alone solution, the SRU series is the ideal choice.
The Cantek SRU Series Fixed Table Wide Belt Sander incorporates a fixed table along with upper moving sanding units. This makes it ideal for in-line sanding or for use with conveyors as they do not need to be adjusted when changing material thickness. The digital thickness control will program the sanding units in accurately and precisely each time. The SRU series is available with 1-3 sanding units and in widths of 24”, 36”, 43”, and 51”. Sanding units can be rubber or steel contact drums, or combination sanding units (drum/platen). In additional the machine can be configured with a spiral insert knife cutterhead for a planer sander combination. No matter the application we have the solution to your sanding requirements.
Why Cantek SRU Series Fixed Table Widebelt Sander?
- Constant pass line allows for in-line integration to a sanding or finishing line or for use with conveyor systems
- Heavy duty machine frame and sanding units for optimum sanding results
- Wide range of configurations available to suit your productions needs
- User friendly controls for fast setups and changeovers between various jobs and sanding grits
- Variable feed speed by frequency inverter for optimum stock removal to finish ratio
- Digital readout PLC touchscreen controller
- Air Jet Cleaners
Key Advantages
- Electronic belt tracking
- Disc brakes for the sanding heads
- High quality conveyor belt with superior grip and durability
- Quick release outboard supports for fast belt changes
- Safety interlock switches on access doors
- Pneumatic disc brakes for stopping the sanding heads
Specifications
INCH |
METRIC |
|
Working widths available |
24” / 36” / 43” / 51” |
610 / 915 / 1100 / 1300mm |
Number of sanding units |
1 to 4 |
1 to 4 |
Material thickness capacity (standard) |
0.079” ~ 4.7” |
2~120mm |
Sanding belt length available |
75” / 103” |
1905 / 2620mm |
Specifications
What is the Cantek SRU Series Fixed Table Widebelt Sander?
The Cantek SRU Series uses a fixed table with upper moving sanding units, making it a strong candidate for in-line sanding or conveyor-fed setups that should not re-level when thickness changes.
Why does a constant pass line matter?
A constant pass line supports in-line integration to a sanding or finishing line or use with conveyor systems without adjusting conveyors for every thickness change.
How is thickness programmed?
Digital thickness control is described to program the sanding units accurately and precisely for each set point.
What configuration range is mentioned for the series?
The series is described as available with 1-3 sanding units and widths of 24, 36, 43, and 51 inches. Confirm the exact configuration on this listing with Centex Automation before you Request a Quote.
What sanding unit styles are possible?
Sanding units can be rubber or steel contact drums, or combination drum/platen units. A spiral insert knife cutterhead planer-sander combination is also described as a possible configuration.
Who should consider fixed-table sanding?
Shops integrating a sander into a conveyor line or finishing cell where pass-line consistency matters. Centex Automation can help evaluate stand-alone vs in-line needs.
How do I price an SRU machine?
Request a Quote from Centex Automation. Quote-based equipment does not use a placeholder dollar amount as a real price.
Can Centex help pick heads and width?
Yes. Centex Automation can review your width, head count, and whether you need a planer-sander combination before quoting.
Is installation included?
Install, training, service, or financing may be available. Confirm inclusions on your quote rather than assuming packages.
What details should a quote request include?
Share whether the machine is in-line or stand-alone, max width, desired head count, and any planer-sander requirement.
Are all series widths stocked as this one SKU?
This product page represents the SRU series offering. Exact width and head configuration must be confirmed on your quote.
What controls are highlighted?
User-friendly controls are described for fast setups and changeovers between jobs.
What brand support applies?
Centex Automation — Built by People Who Know the Shop Floor — supports SRU series selection and quoting.
Should I invent capacity numbers not on the page?
No. Use listed series options and Request a Quote for configuration-specific confirmation.
How do I proceed?
Contact Centex Automation to Request a Quote on the Cantek SRU Series Fixed Table Widebelt Sander.
