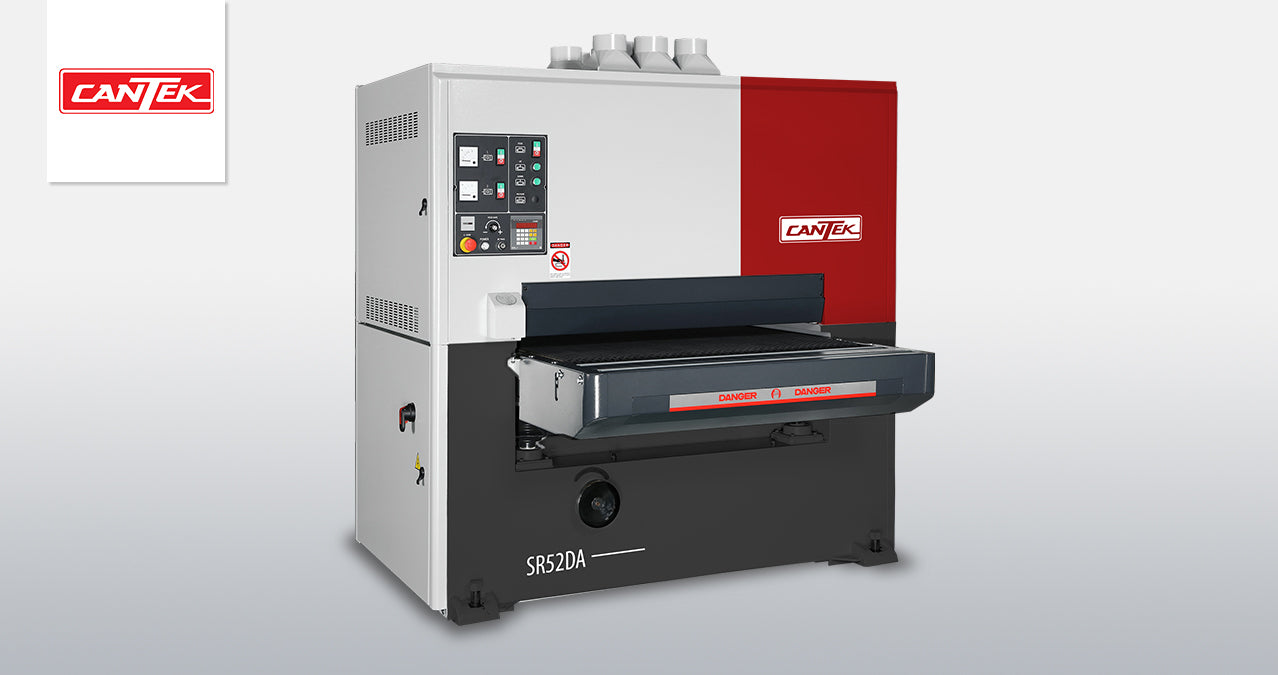

CANTEK | SR52DA 52″ Two Head Widebelt Sander
A sander that is not only capable but thrives in multiple-shift environments.
The Cantek SR52DA 52″ two head widebelt sander combines a solid machine frame with unparalleled machine features resulting in superior sanding quality and reliability. The dual sanding heads result in fewer passes through the sander resulting in increased efficiency and throughput. The first sanding head is a rubber contact drum with calibration capacities and durability. The second head consists of a versatile combination head with a rubber contact drum and adjustable sanding platen to perform further calibration or finish sanding with finer sanding grits. The 75″ long belts allow for longer runs between belt changes. The quick setting digital thickness control allows for accurate, automatic table adjustment for precise sanding results.
Why Cantek SR52DA 52″ Widebelt Sander?
- Robust machine structure with cast iron head assemblies for superior sanding results
- Dual sanding heads for increased productivity.
- Accurate digital thickness control with both Inch and Metric settings allows the operator to key in the desired thickness and the table will automatically move into position.
- Caliper thickness setting unit for fast setup to your workpiece.
- “D” sanding unit = 10” diameter rubber contact drum.
- “A” Sanding Unit = 5 1/2” diameter Combination head with rubber contact drum and adjustable 3” sanding platen ideal for calibrating and finish sanding.
Key Advantages
- Heavy-duty welded steel frame with cast iron sanding head assemblies for vibration-free sanding.
- Dual rubber-covered pressure rollers on infeed and outfeed for consistent material hold down.
- High-quality rubber conveyor with automatic pneumatic belt tracking.
- Extended infeed bed with two table rollers.
- The table is adjusted using four heavy-duty jackscrews driven by a robust chain system.
- Automatic caliper thickness setting.
- Electronic sanding belt tracking.
- Pneumatic belt tensioning & quick release outboard support for fast belt changes.
- Automatic disc brakes for the sanding heads allow for fast belt changeover.
- Safety switches on all access doors.
- High-quality Schneider electrical controls and top quality pneumatics
Specifications
INCH |
METRIC |
|
Abrasive belt size |
52” x 75” |
1320 X 1905 mm |
1st Main motor |
25 HP |
|
2nd Main motor |
20 HP |
|
Feed motor |
3HP |
|
Table rise/fall motor |
1/2 HP |
|
Working width |
52″ |
1320 mm |
Minimum part length |
16.9″ |
430 mm |
Maximum thickness opening |
4.7″ |
120 mm |
Feed speed: variable |
13 to 59 FPM |
4 to 18 m/min |
Pass line height |
37″ |
950 mm |
Dust outlet |
8 @ 5” |
8 @ 127 mm |
Compressed air pressure |
PSI 85 |
6 Kg/cm2 |
Compressed air volume |
12 CFM |
0.35M3/Min |
Dust collection requirements |
5356 CFM |
9100 M3/HR |
Net weight |
7716 lbs |
3500 kgs |
Machine dimensions |
84” X 82” X 79” |
2150 x 2100 x 2025 mm |
Shipping weight |
8487 lbs |
3850 kgs |
Shipping dimensions |
89” X 90” X 82” |
2275 x 2300 x 2090 mm |
Specifications
What is the Cantek SR52DA Widebelt Sander?
The Cantek SR52DA is a 52 inch two-head widebelt sander positioned for multi-shift environments with a solid frame and dual heads for fewer passes.
What is the head layout?
The first head is a rubber contact drum for calibration; the second is a combination head with a rubber contact drum and adjustable sanding platen for further calibration or finish sanding.
How long are the belts described?
75 inch long belts are described to support longer runs between belt changes.
How is thickness controlled?
Quick-setting digital thickness control with inch and metric settings lets the operator key a thickness so the table moves automatically into position. Caliper thickness setting is also referenced on the page.
What construction details are emphasized?
A robust machine structure with cast iron head assemblies is described for superior sanding results.
Who should consider the SR52DA?
Shops that need a production-minded 52 inch two-head widebelt for calibration and finish sanding. Centex Automation can confirm fit for your volume.
How do I get a price?
Request a Quote from Centex Automation. Do not treat any placeholder amount as a real price.
Can Centex compare two-head vs three-head 52 inch models?
Yes. Centex Automation can compare the SR52DA with the SR52DDA based on grit stages and throughput goals.
Is install included by default?
Install, training, service, or financing may be available. Confirm inclusions on your quote.
What quote details help most?
Share max width, grit sequence, calibration vs finish needs, and whether you run multiple shifts.
Does dual head always mean fewer passes?
Dual heads are described as increasing productivity by reducing passes, but actual pass count depends on your grit plan and stock condition.
What brand support applies?
Centex Automation — Built by People Who Know the Shop Floor — supports selection and quoting for Cantek widebelts.
Should I assume unpublished platen specs?
No. Use listed features and Request a Quote for configuration confirmation.
Is this a metal sander?
No. This page is a woodworking widebelt sander. Metal models are listed separately.
How do I proceed?
Contact Centex Automation to Request a Quote on the Cantek SR52DA.
