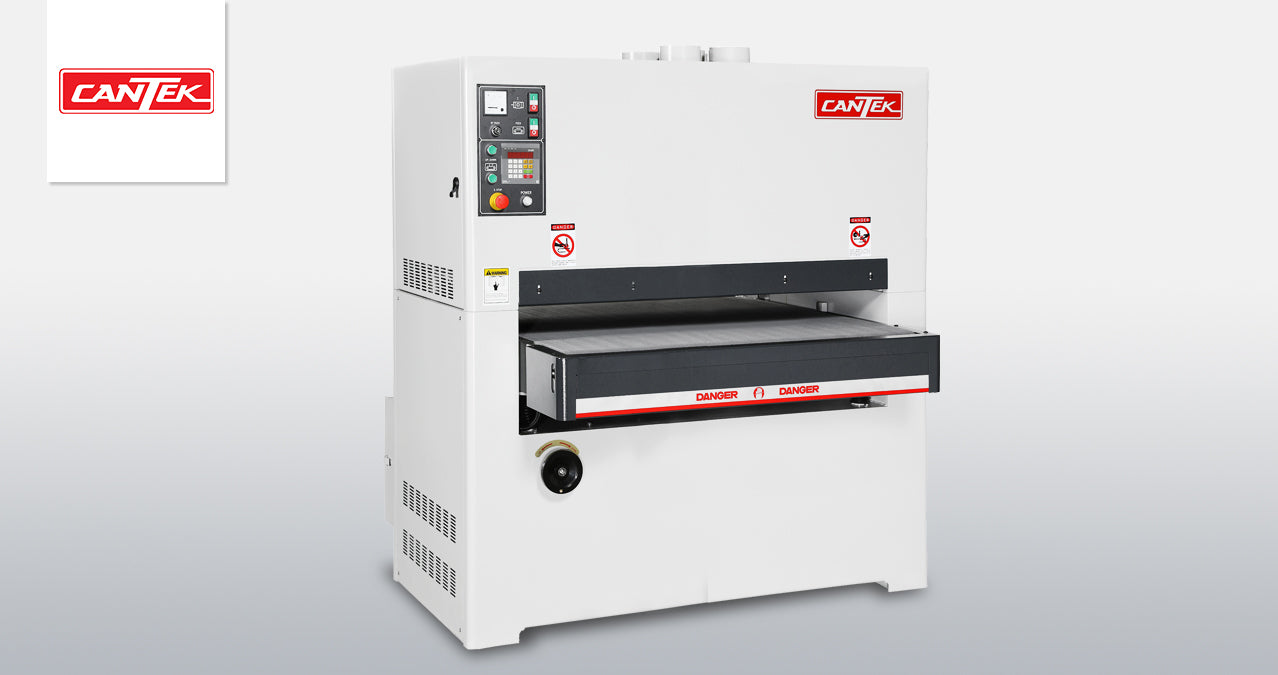

CANTEK | S432 43″ Two Head Widebelt Sander
Accomplish your tasks without worrying about the performance of your sander.
The Cantek S432 43″ Two Head Wide Belt Sander is perfect for any small to mid-sized shop looking to achieve outstanding results. Its robust construction is the best in its class and provides superior sanding results. The flexibility with quick-change abrasive belts allows for more applications in a shorter time frame, helping to assist and meet deadlines. In addition, the S432 has a relatively small footprint providing greater access for smaller shops to accomplish bigger results. Equipped with motorized thickness adjustment with digital input control with settings to 0.001″ / 0.01mm for precise table setting without compromise.
Why Cantek S432 43″ Widebelt Sander?
- Dual sanding heads increase efficiency by reducing the number of passes.
- Rubber contact drum for calibration sanding.
- Combination sanding unit with 5″ rubber contact drum and 2″ wide adjustable sanding platen for a wide range of sanding applications.
- Adjustable platen produces superior sanding results with finer sandpaper grits.
- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and table will automatically move into position.
- Small footprint.
Key Advantages
- Two sanding heads:
- First Head: Rubber contact drum with 7″ diameter drum.
- Second Head: Combination head with 5″ diameter drum and 2″ wide platen.
- Electronic belt tracking for optimum belt life and sanding results.
- Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit.
- Disc brake on the main motor allows for faster belt changes.
- Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
- Table raising jackscrews.
- Interlocks are located on all access doors.
Specifications
DESCRIPTIONa |
INCH |
METRIC |
Abrasive belt size |
43” x 60” |
1092 X 1524 mm |
First main motor |
25 HP |
|
Feed motor |
2HP |
|
Table rise/fall motor |
0.25 HP |
|
Working width |
42″ |
1066 mm |
Minimum part length |
12.5″ |
320 mm |
Maximum thickness opening |
5.9″ |
150 mm |
Feed speed: variable |
15 to 49 FPM |
4 to 15 m/min |
Pass line height |
37″ |
920 mm |
Dust outlet |
8 @ 4” |
8 @ 101 mm |
Compressed air pressure |
PSI 70 |
5 Kg/cm2 |
Compressed air volume |
12 CFM |
0.35M3/Min |
Dust collection requirements |
3825 CFM |
6500 M3/HR |
Net weight |
3086 lbs |
1400 kgs |
Machine dimensions |
60” X 61” X 64” |
1540 x 1555 x 1630 mm |
Shipping weight |
3500 lbs |
1587 kgs |
Shipping dimensions |
62” X 64” X 76” |
1600 x 1640 x 1940 mm |
Electrical requirements |
230/3/60 = 70 amps |
|
Specifications
What is the Cantek S432 Two Head Widebelt Sander?
The Cantek S432 is a 43 inch two-head widebelt sander for small to mid-sized shops seeking robust construction and strong sanding results in a relatively compact footprint.
How do dual heads help production?
Dual sanding heads increase efficiency by reducing the number of passes through the machine.
What is the sanding head layout?
The listing describes a rubber contact drum for calibration sanding and a combination sanding unit with a 5 inch rubber contact drum and a 2 inch wide adjustable sanding platen.
How is thickness controlled?
Motorized thickness adjustment with digital input control is described with settings to 0.001 inch / 0.01 mm, with inch and metric entry so the table can move to the keyed thickness.
Why mention quick-change belts?
Quick-change abrasive belts are positioned to support more applications in less time and help shops meet deadlines.
Is the S432 meant for smaller floor space?
Yes. A relatively small footprint is highlighted so smaller shops can still pursue larger sanding results.
What does the adjustable platen support?
An adjustable platen is described for superior sanding results when running finer sandpaper grits.
How do I price the S432?
Request a Quote from Centex Automation. Quote-based Cantek sanders do not use a placeholder dollar figure as a real price.
Can Centex help compare C432 vs S432?
Yes. Centex Automation can review your calibration and finish goals and help you choose between related 43 inch two-head models before you Request a Quote.
Are install and training automatic?
Install, training, service, or financing may be available. Confirm inclusions on your quote with Centex Automation.
What shop conditions suit the S432?
The page targets small to mid-sized shops that need reliable widebelt performance without oversized equipment. Share your volume and grit plan when you inquire.
What facts should drive my quote request?
Provide max part width, thickness range, species, and whether you need calibration, finish sanding, or both.
Does Centex Automation support after the sale?
Service may be available through Centex Automation. Ask what service options apply to your machine and region.
Is this page inventing horsepower or feed rates?
No. Use the configuration details on this product page and Request a Quote for full commercial terms and any unpublished options.
How do I move forward?
Contact Centex Automation — Built by People Who Know the Shop Floor — to Request a Quote on the Cantek S432.
