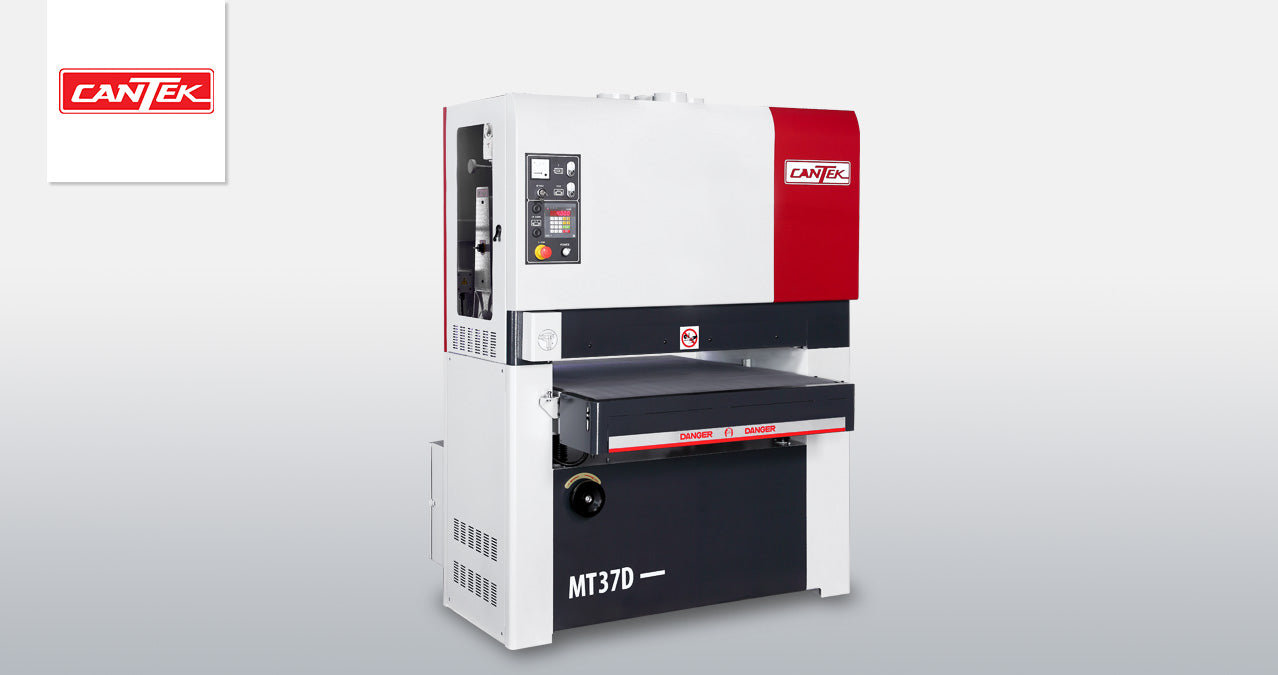

CANTEK | MT37D 36″ Single Head Metal Widebelt Sander
Compact Metal Wide Belt Sander for increased efficiency during oxidation and slag removal.
The Cantek MT37D 36” Single Head Metal Widebelt Sander is designed to be easy to use and durable for the removal of oxidation, deburring, and slag. It comes equipped with a single rubber contact drum with efficient material removal capabilities. The 7” contact drum is equipped with pneumatic belt tensioning for fast belt changeovers. The precision digital thickness control allows the operator to accurately enter the desired thickness which moves the table precisely in to position for repeatable results. The industrial welded steel frame and powerful features all come in a compact package making ideal for smaller to midsized shops.
Why Cantek MT37D 36″ Single Head Metal Widebelt Sander?
- Accurate digital thickness control with both Inch and Metric settings allows the operator to key in the desired thickness, and the table will automatically move into position.
- Single-head sanding unit with a 7″ rubber contact drum for oxidation, slag removal and deburring metal sanding applications.
- Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes.
- Small footprint making it ideal for a small to mid-sized production shop
Key Advantages
- Electronic belt tracking for optimum belt life and sanding results.
- Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit.
- Disc brake on the main motor allows for faster belt changes.
- Double infeed and outfeed pressure rolls for superior part hold down.
- Table raising jackscrews.
- Material over-height limit switch.
- Interlocks are located on all access doors.
Specifications
INCH |
METRIC |
|
Abrasive belt size |
37” x 75” |
939 x 1905 mm |
Main motor, shared |
20 HP |
|
Feed motor |
1HP |
|
Table rise/fall motor |
½ HP |
|
Maximum width stock |
36″ |
910 mm |
Minimum part length |
13″ |
330 mm |
Maximum thickness opening |
5″ |
127 mm |
Feed speed: variable |
13 to 52 FPM |
4 to 16 m/min |
Passline height |
33″- 38″ |
838 – 965 mm |
Infeed table |
11 ½” |
292 mm |
Dust outlet |
1 @ 5” |
1 @ 127 mm |
Compressed air usage |
2 CFM @ 90 PSI |
2 CFM @ 90 PSI |
Shipping weight |
2530 lbs |
1150 kgs |
Shipping dimensions |
52” X 57” X 86” |
1320 x 1447 x 2184 mm |
Electrical requirements |
230/3/60 |
|
Specifications
What is the Cantek MT37D Metal Widebelt Sander?
The Cantek MT37D is a 36 inch single-head metal widebelt sander positioned for oxidation, deburring, and slag removal in a compact package for smaller to midsized shops.
How many sanding heads does the MT37D have?
It is a single-head machine with a rubber contact drum described for efficient material removal.
What drum size is listed?
A 7 inch contact drum with pneumatic belt tensioning is described for fast belt changeovers.
How does thickness control work?
Accurate digital thickness control with inch and metric settings lets the operator key in the desired thickness so the table moves into position for repeatable results.
What frame construction is described?
An industrial welded steel frame is described as part of the compact, durable package.
Who is the MT37D for?
Shops that need a compact metal widebelt for oxidation, slag removal, and deburring without a large machine footprint.
Does pneumatic tensioning matter day to day?
Yes. Pneumatic belt tensioning with quick-release outboard support is described to facilitate fast belt changes.
How do I get a price?
Request a Quote from Centex Automation for pricing, freight, and lead time. Do not treat any placeholder figure as the price.
Can Centex help decide single-head vs two-head metal sanders?
Yes. Centex Automation can compare the MT37D single-head layout with two-head metal models based on your throughput and grit plan.
Is training included?
Install, training, service, or financing may be available. Ask Centex Automation what is included on your quote.
What should I share on a quote request?
Share part width, metal process goals (oxidation, slag, deburring), and whether you need one grit pass or multiple.
Is this a wood widebelt?
No. This page is for a metal widebelt application focus. Wood widebelts are listed separately.
What brand support channel should I use?
Work with Centex Automation — Built by People Who Know the Shop Floor — for selection and quote support on Cantek metal sanders.
Are capacities beyond the listing guaranteed?
Only rely on details stated on this product page. Request a Quote for configuration confirmation rather than assuming unpublished capacities.
How do I start?
Contact Centex Automation to Request a Quote on the Cantek MT37D.
