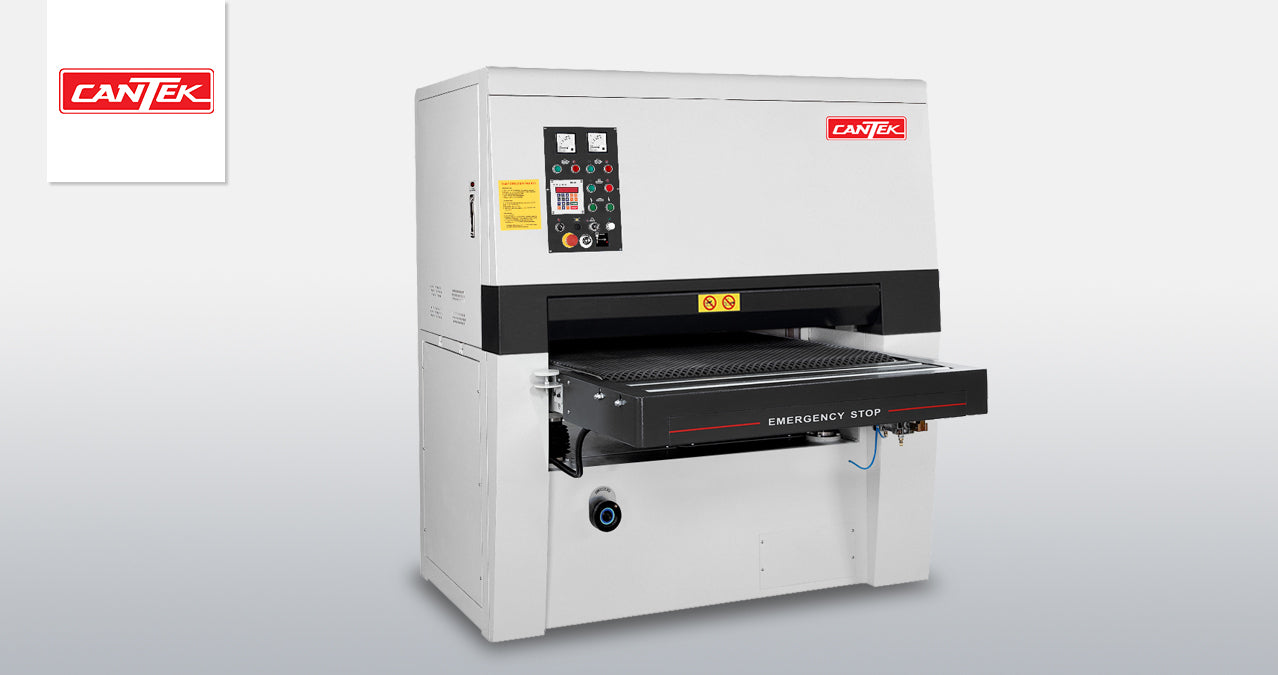

CANTEK | C432 43″ Two Head Widebelt Sander
Accomplish your calibration and fine sanding without compromise.
The Cantek C432 43″ Two Head Widebelt Sander is perfect for any small to mid-sized shop looking to achieve outstanding results. Its robust construction is the best in its class and provides superior sanding results. The highly versatile design includes a quick-change abrasive belt system which results in greater production efficiencies. The C432 has a relatively small footprint providing greater access for smaller shops to achieve bigger results. Equipped with motorized thickness adjustment with digital input control with settings to 0.001” / 0.01mm for precise table setting without compromise!
Why Cantek C432 43″ Two Head Widebelt Sander?
- Dual sanding heads increase efficiency by reducing the number of passes.
- Rubber contact drum for calibration sanding
- Combination sanding unit with 5” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications
- Adjustable platen produces superior sanding results with finer sandpaper grits.
- Solid cast iron sanding heads and mounting base for superior vibration damping resulting in an optimum sanding result.
- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness and the table will automatically move into position.
- Small footprint
- Available with 60″ or 75″ long belts
Key Advantages
- Two sanding heads
- First Head: Rubber contact drum with a 7” diameter drum
- Second Head: Combination head with 5” diameter drum and 2” wide platen
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.
- The disc brake on the main motor allows for faster belt changes.
- Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes.
- Double infeed and outfeed pressure rolls for superior part hold down.
- Four table-raising jack screws
- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine.
- Interlocks located on all access doors.
Specifications
DESCRIPTION |
C432 |
C432-75 |
Abrasive belt size |
44″ x 60″ |
44″ x 75″ |
Main motor (First Head) |
20 HP |
20 HP |
Main motor (Second Head) |
15 HP |
15 HP |
Feed motor |
2HP |
2HP |
Table rise/fall motor |
½ HP |
½ HP |
Maximum width stock |
43” |
43” |
Minimum thickness opening |
13” |
13” |
Maximum thickness opening |
5” |
5” |
Feed speed: variable |
13 to 52 FPM |
13 to 52 FPM |
Infeed table |
11.5” |
11.5” |
Dust outlet |
4 @ 4” |
4 @ 4” |
Compressed air usage |
2 CFM @ 90 PSI |
2 CFM @ 90 PSI |
New weight |
4200 lbs |
4500 lbs |
Machine dimensions |
80″ x 70″ x 67.5″ |
80.5″ x 70.5″ x 74.5″ |
Shipping weight |
5,070 lbs. |
5500 lbs |
Shipping dimensions |
83” X 83” X 87” |
83” X 83” X 94” |
Electrical requirements |
230/3/60 = 112 amps |
|
Specifications
What is the Cantek C432 Two Head Widebelt Sander?
The Cantek C432 is a 43 inch two-head widebelt sander aimed at small to mid-sized shops that need calibration and fine sanding in a relatively compact footprint.
Why use two sanding heads?
Dual sanding heads increase efficiency by reducing the number of passes compared with a single-head machine.
What sanding units does the C432 use?
It uses a rubber contact drum for calibration sanding plus a combination sanding unit with a 5 inch rubber contact drum and a 2 inch wide adjustable sanding platen.
How precise is thickness setting?
Motorized thickness adjustment with digital input control is described with settings to 0.001 inch / 0.01 mm for precise table setting.
What construction details support sanding quality?
Solid cast iron sanding heads and mounting base are described for vibration damping and an optimum sanding result.
Is the C432 suited to smaller shops?
Yes. The listing highlights a relatively small footprint so smaller shops can still pursue stronger sanding results.
Does belt change matter on the C432?
A quick-change abrasive belt system is described to support production efficiencies.
What materials or jobs is this page focused on?
The product page positions the C432 for calibration and fine sanding workflows in woodworking shops. Confirm your species, grit plan, and part sizes with Centex Automation.
How do I get pricing for the C432?
This machine is quote-based. Request a Quote from Centex Automation for current pricing, freight, and lead time. No placeholder dollar amount is a real price.
Can Centex Automation help with selection?
Yes. Centex Automation — Built by People Who Know the Shop Floor — can help you compare two-head widebelt options and confirm whether the C432 fits your throughput.
Is installation included?
Install, training, service, or financing may be available. Ask what applies to your quote rather than assuming they are included.
What should I prepare before requesting a quote?
Share target width capacity, typical part thickness range, grit sequence, and whether you need calibration, finish sanding, or both.
How does the adjustable platen help?
The adjustable platen is described as helping produce superior sanding results with finer sandpaper grits.
Is this the same machine as the S432?
No. The C432 and S432 are related Cantek two-head 43 inch widebelt models with overlapping themes but separate product pages. Confirm differences with Centex Automation before you Request a Quote.
Who should I contact?
Contact Centex Automation to Request a Quote and discuss configuration, freight, and lead time for the Cantek C432.
