BARBARIC | Solid Wood Storage SWS
The system

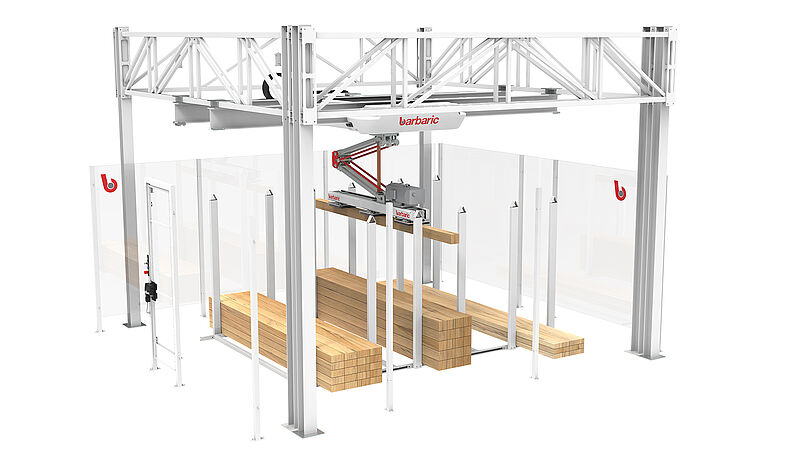

The SWS solid wood storage system is the optimal system for the storage of glulam and solid construction wood poles.
Solid wood logs are stored in stanchion compartments and can then be fed to cross-cut saws or joinery lines. Furthermore, there is the possibility of simple commissioning of customer packages or complex package formation after joinery.
These systems impress with their high flexibility. The stanchion compartments can easily be adapted to the desired log widths. Several logs can be stored in one layer per stanchion compartment. This significantly increases the performance of the system compared to conventional one-dimensional storage.
The integration of heavy conveyor technology is essential for this type of plant. Chain conveyors or roller conveyors can be easily integrated into the system.
The suction beam
The suction traverse has been designed in such a way that several bars can be picked up at the same time. Depending on the dimensions of the individual bars, one bar or up to 5 bars can be suctioned at the same time.
The individual suction circuits are automatically controlled according to the requirements or the dimensions and number of bars. With only one stroke several bars can be transported and thus also a lot of energy is saved.
With this solution, the system achieves a significant increase in performance. Cracked bars can also be picked up and transported with the specially developed suction cups.
Technical details
| Load capacity: | 500 kg (optional 700 kg & 1000 kg) |
| Length min: | 1500 mm |
| Length max: | 16 m |
| Width min: | 80 mm |
| Width max: | 400 mm |
| Height min: | 40 mm |
| Height max. | 260 mm |
| Stacking height: | 1800 mm / 2500 mm or more |
| Multidimensional stacking |
Other dimensions possible after consultation and technical inspection.
Simple or multi-level solutions
The solid wood storage system SWS can be realized as a floor storage system but also as a two-storey version. The standard solution is a warehouse on one level. Depending on the required performance of the system, one or two manipulators can be used.
The next step is a two-level facility. High hall heights are optimally used by adding an intermediate floor to the system and the resulting upper area can also be used for storage.
This area can be used mainly for B&C goods or also for residual bars. The lower stacking heights even allow storage without stanchions.
Interlinking with machines & ERP system
Depending on the desired application, a wide variety of machines can be linked. Whether simple cross-cut saws or complex joinery centers - everything is possible. Not only the feeding of the system, but also the further handling with finished individual parts is possible. Depending on the set-up, residual parts can also be stored again. The connection of the machines is realized via modern interfaces. The open interfaces can also be used by ERP systems. All storage and material data are available to other systems.
The green idea
This machine is not only a warehouse but also helps the environment with the chosen technology. The drive and vacuum technology was chosen so intelligently that the required electricity was reduced to a minimum. The vacuum is generated directly where it is needed. Any losses are avoided. The compact yet stable design allows the use of comparatively low drive power. By accommodating several bars, the number of travel movements is drastically reduced.
Specifications
What is the BARBARIC Solid Wood Storage SWS?
The Solid Wood Storage SWS is a high-performance storage system designed specifically for glulam beams and solid construction wood poles.
What materials can the SWS Solid Wood Storage system handle?
It is optimized for glulam beams, solid construction wood poles, and similar large solid wood elements.
How are logs stored in the SWS system?
Solid wood logs are stored in stanchion compartments, allowing organized and accessible multi-layer storage.
Can stored logs be fed directly into processing equipment?
Yes. The system enables feeding to cross-cut saws or joinery production lines.
Is the system suitable for joinery operations?
Yes. Logs can be routed to joinery lines for further processing or machining.
Can the system support customer-specific package commissioning?
Yes. It allows simple commissioning of customer packages as well as complex package formation after joinery.
How flexible are the stanchion compartments?
The compartments can easily be adapted to accommodate different log widths.
Can multiple logs be stored per layer?
Yes. Several logs can be stored in one layer per stanchion compartment, increasing storage density.
How does this system compare to conventional one-dimensional storage?
By allowing multi-log storage per layer, it significantly increases storage performance and efficiency compared to traditional one-dimensional systems.
Is the SWS Solid Wood Storage system suitable for high-volume operations?
Yes. It is designed for industrial-scale handling of glulam and structural timber materials.
Does the system integrate with heavy conveyor technology?
Yes. Integration of heavy conveyor systems is an essential part of the plant design.
What types of conveyors can be integrated?
Chain conveyors and roller conveyors can be easily integrated into the system.
Does the SWS system improve material flow efficiency?
Yes. Integrated conveyors and organized storage compartments streamline feeding and retrieval processes.
Is the system suitable for prefabricated construction facilities?
Yes. It supports efficient storage and handling of structural timber components used in prefabrication.
Can the system improve throughput in timber processing plants?
Yes. Increased storage density and automated feeding improve operational performance.
Does the system reduce manual handling?
Yes. Automated storage and conveyor integration minimize manual intervention.
Is the SWS Solid Wood Storage customizable?
Yes. Stanchion compartments can be adapted to suit various timber dimensions and operational needs.
Can the system handle long structural beams?
Yes. It is designed specifically for glulam and solid construction wood poles commonly used in structural applications.
Does the system support complex package formation?
Yes. After joinery processing, logs can be grouped into complex customer-specific packages.
Why choose the BARBARIC Solid Wood Storage SWS?
Its flexible stanchion storage design, multi-log layer capability, conveyor integration, and optimized performance for glulam and structural timber make it a powerful solution for modern wood processing facilities.
