BARBARIC Nesting Picker FAQs

1. What is the BARBARIC Nesting Picker?

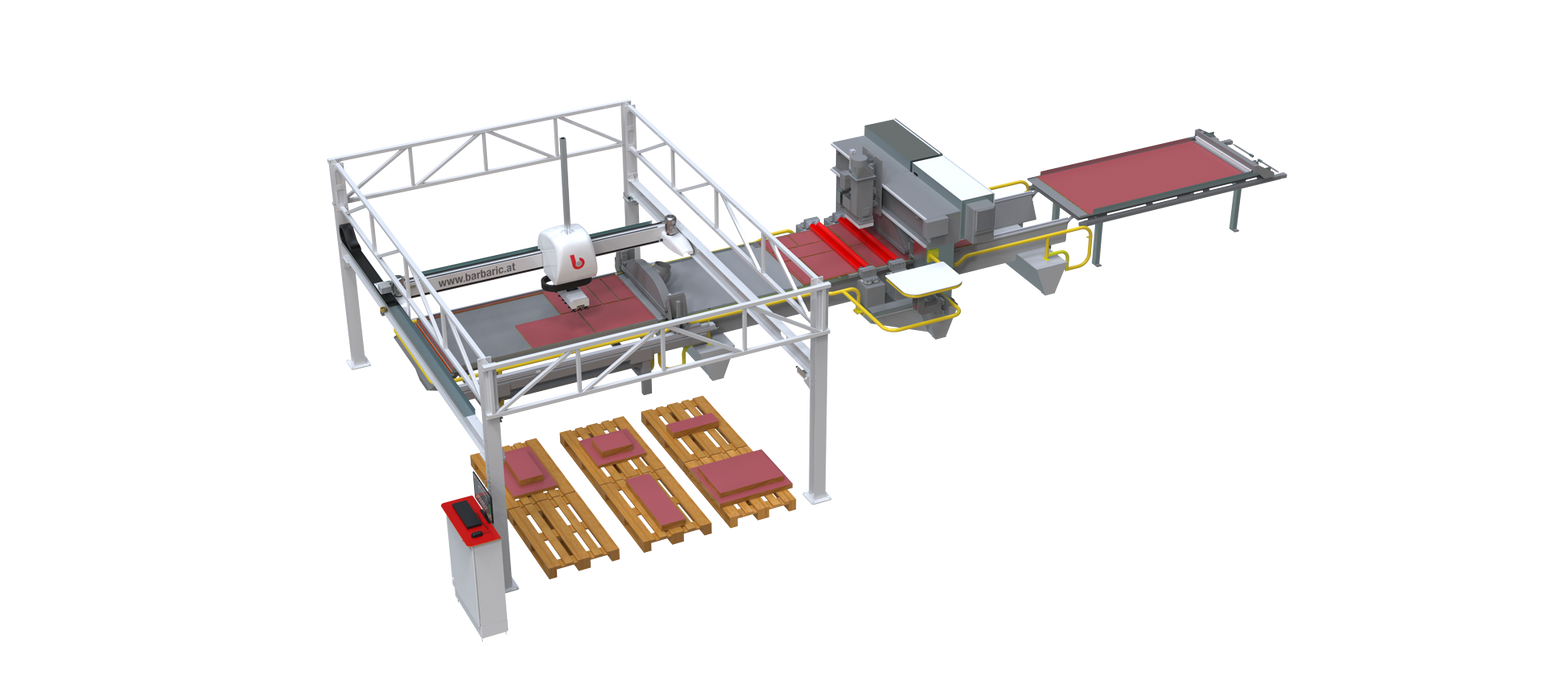

The BARBARIC Nesting Picker is an automation system that performs fully automatic de-stacking of machined parts after CNC or nested machining, increasing productivity and reducing manual handling. :contentReference[oaicite:1]{index=1}

2. How does the Nesting Picker work?

After CNC processing, the finished nested sheet is pushed onto a pick-up conveyor. The Nesting Picker analyzes the nest, identifies individual part positions, and then automatically picks and stacks the parts. :contentReference[oaicite:2]{index=2}

3. What kinds of machines can the Nesting Picker integrate with?

The Nesting Picker can be integrated with nested CNC machines (new or existing) that have a sufficiently long removal belt to allow proper part analysis. :contentReference[oaicite:3]{index=3}

4. Does the Nesting Picker work with existing CNC equipment?

Yes. It can be retrofitted to existing nested CNC output conveyors as long as the conveyor length allows the system to analyze and access the full nest. :contentReference[oaicite:4]{index=4}

5. How does the system recognize parts?

Part recognition is achieved using a camera system with additional light sources. The software checks the real position of parts and corrects positioning if pieces are shifted or rotated within the nest. :contentReference[oaicite:5]{index=5}

6. Can the Nesting Picker handle misaligned parts?

Yes. The vision system detects part orientation and position variation and mathematically corrects the reference for reliable pickup. :contentReference[oaicite:6]{index=6}

7. Can it handle different part shapes and sizes?

Yes. Parts within the machine’s specified panel size range can be individually picked and stacked, with sorting options according to configured criteria. :contentReference[oaicite:7]{index=7}

8. What panel sizes can the Nesting Picker process?

The system accommodates a panel size range from approximately 80 × 300 mm up to 2800 × 1300 mm. :contentReference[oaicite:8]{index=8}

9. What panel thickness can it handle?

Panel thickness processed ranges from about 8 mm to 60 mm, depending on configuration and handling options. :contentReference[oaicite:9]{index=9}

10. What is the maximum part width?

The applicable part width range is typically 8–60 mm for nested parts stacked by the system. :contentReference[oaicite:10]{index=10}

11. What is the working load capacity of the Nesting Picker?

The Nesting Picker is designed for parts up to 60 kg per individual piece. :contentReference[oaicite:11]{index=11}

12. How fast can the Nesting Picker process parts?

Typical throughput performance can achieve up to approximately 10 parts per minute on output conveyors such as those used for edgebanders. :contentReference[oaicite:12]{index=12}

13. How are residual and scrap parts handled?

After picking valid parts, remaining residual or edge pieces can be automatically pushed into a box or designated scrap area to maintain a clean production flow. :contentReference[oaicite:13]{index=13}

14. What stacking configurations are supported?

Parts can be stacked on single or multiple pallet locations or transferred to further conveyor systems depending on system configuration. :contentReference[oaicite:14]{index=14}

15. Does the Nesting Picker support sorting by criteria?

Yes. Sorting and stacking can be selected based on defined criteria (e.g., part type, destination, or production sequence). :contentReference[oaicite:15]{index=15}

16. Is chaotic de-stacking possible?

Yes. In addition to structured stacking, the Nesting Picker also supports chaotic de-stacking where parts are sorted without strict pallet organization. :contentReference[oaicite:16]{index=16}

17. Does the Nesting Picker improve CNC machine utilization?

Yes. By automating the unloading process, it reduces operator downtime and increases the effective utilization of the upstream CNC or nesting machine. :contentReference[oaicite:17]{index=17}

18. Can the Nesting Picker be used for multiple product lines?

Yes. The system’s flexible stacking and sorting logic allows it to serve several production lines or stacking workflows in a multi-product environment. :contentReference[oaicite:18]{index=18}

19. How does the Nesting Picker reduce labor requirements?

By replacing manual de-stacking operations with fully automated vision-guided handling and stacking, it significantly reduces physical labor and operator involvement. :contentReference[oaicite:19]{index=19}

20. Is technical service and support available for the Nesting Picker?

Barbaric and Centex Automation provide after-sale service and support, ensuring that the handling systems remain reliable and optimized over the long term. :contentReference[oaicite:20]{index=20}
