BARBARIC | Labeling Printer LPS
The Labeling Printer LPS perfectly completes Barbaric's range of products in the field of panel handling and offers an optimal extension of our storage or feeding systems for part cutting. With this unit, boards can be labelled even before they are cut to size. Manual labelling after cutting and problems with part identification are now a thing of the past.
Features

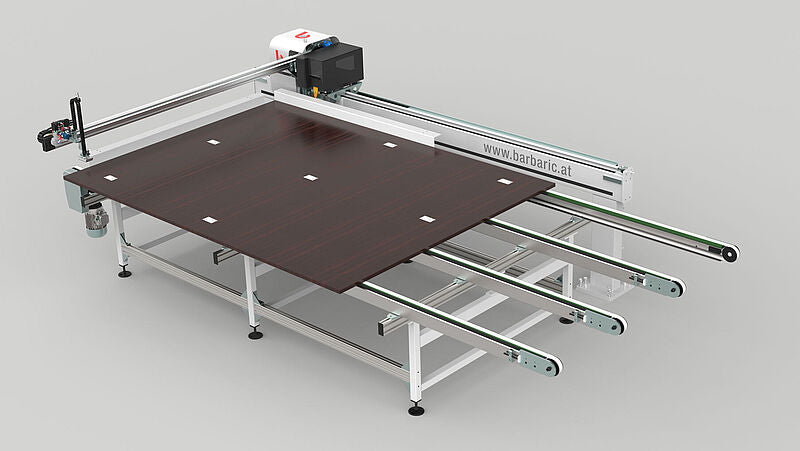

The Labeling Printer LPS can be implemented in a wide variety of set-up variants: as a stand-alone printer in a panel storage system, behind a pressure beam saw with direct feeding by means of a toothed belt conveyor or in front of a nesting machine with the corresponding conveyor unit. The same printer or applicator unit is used for all variants, only the lengths of the axes are different.
The communication to higher-level controllers is very simple. The LPS label printer only requires the finished generated labels in JPG or BMP image format and a position file for each cutting plan. Thus the creation of the labels is purely on the side of the cutting plan or nesting optimization.
All benefits at a glance
- Fully automated labelling without operator intervention
- Human error when applying labels is eliminated
- Labelling before cutting or nesting
- Part identification with unique and unambiguous part number
- One printer for several processing machines (only for the standalone version)
- Effective and trouble-free cutting
- Alternatively also with manual labelling after cutting for small parts
- Standard label sizes but also customized labels can be used
Technical data
- Max. 10 cycles per minute
- Panel sizes from 2000 x 600 mm to max. 5600 x 2100 mm (depending on the model)
- Application accuracy up to +/- 1 mm
- Standard labels in 98 x 55 mm format
- 104 mm max. print width
- Axes controlled by frequency converter
- Standardized interface for cutting plan or nesting optimization
Other solutions
In addition to the standard LPS machine, Barbaric also offers other customized printer solutions:
- Manual labelling stations
- Stack labelling
- Continuous labellers
- Label stations with two printers for different label sizes (simultaneous application of large and small labels possible)
Specifications
What is BARBARIC | Labeling Printer LPS?
BARBARIC | Labeling Printer LPS is a Barbaric labeling printer for panel handling. The page states it completes Barbaric's range in panel handling and extends storage or feeding systems for part cutting so boards can be labelled before they are cut to size.
What set-up variants are listed?
Stand-alone printer in a panel storage system; behind a pressure beam saw with direct feeding by a toothed belt conveyor; or in front of a nesting machine with the corresponding conveyor unit. The same printer or applicator unit is used for all variants; only axis lengths differ.
What label input format is listed?
The LPS label printer requires finished generated labels in JPG or BMP image format and a position file for each cutting plan. Label creation is on the cutting plan or nesting optimization side.
What automation benefits are listed?
Fully automated labelling without operator intervention; human error when applying labels is eliminated; labelling before cutting or nesting; part identification with unique and unambiguous part number; effective and trouble-free cutting.
Can one printer serve several machines as listed?
One printer for several processing machines is listed only for the standalone version.
What small-parts alternative is listed?
Alternatively also with manual labelling after cutting for small parts is listed.
What label size and print width are listed?
Standard labels in 98 x 55 mm format; 104 mm max. print width. Standard label sizes but also customized labels can be used.
What cycle rate and accuracy are listed?
Max. 10 cycles per minute; application accuracy up to +/- 1 mm.
What panel size range is listed?
Panel sizes from 2000 x 600 mm to max. 5600 x 2100 mm (depending on the model).
What axis control and interface notes are listed?
Axes controlled by frequency converter; standardized interface for cutting plan or nesting optimization.
What other Barbaric printer solutions are listed?
Manual labelling stations; stack labelling; continuous labellers; label stations with two printers for different label sizes (simultaneous large and small labels possible).
How do I get pricing on this equipment?
Request a Quote from Centex Automation for current availability, freight, and commercial terms. Do not use invented dollar amounts.
What brand support applies?
Centex Automation - Built by People Who Know the Shop Floor - helps shops evaluate Barbaric panel handling and labeling solutions.
Is install, integration, training, freight, or warranty included?
Barbaric Labeling Printer LPS setup, training, or service may be available; do not assume they are included. Ask Centex Automation.
Who typically looks at LPS?
Shops adding automated pre-cut labelling to Barbaric storage/feeding, beam-saw, or nesting lines.
What should I confirm before ordering?
Confirm integration variant (storage / beam saw / nesting), axis lengths, label size, optimization interface, and panel size range for your model.
Should I invent dollar amounts, ROI, or unlisted throughput?
No. Do not invent prices or dollar amounts. Only use page-stated technical facts and Request a Quote for commercial terms.
Should I invent that storage systems or saws are included?
No. This listing is the Labeling Printer LPS; storage, saw, and nesting machines are integration contexts, not stated inclusions.
Can Centex help compare LPS variants and other labelling solutions?
Yes. Centex Automation can help compare stand-alone vs in-line LPS variants and other Barbaric labelling options listed on the page.
