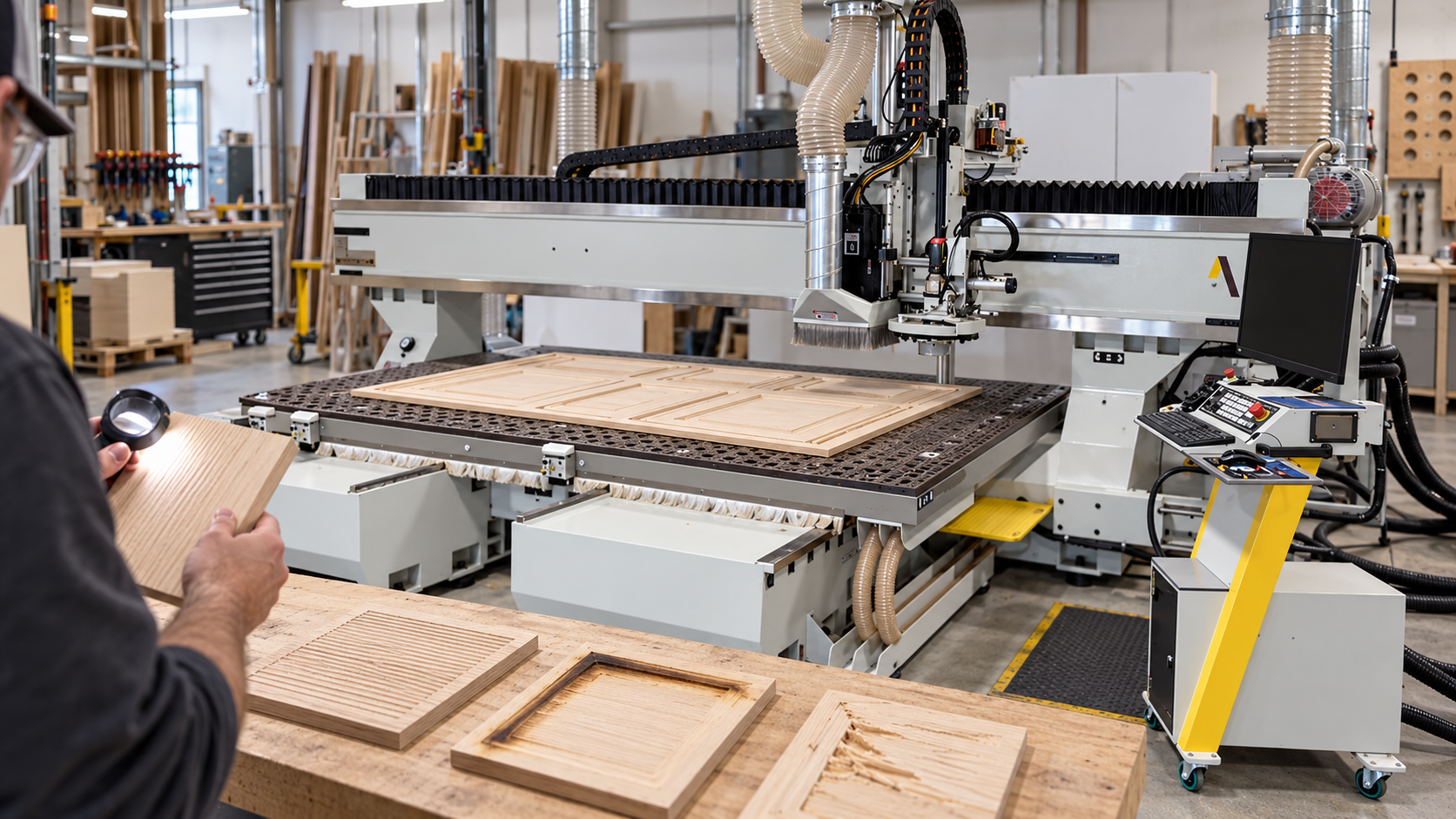

Surface Defect Troubleshooting: How to Trace Root Causes Across Your Production Line

Every Surface Defect Is a Diagnostic Signal — Start Reading Them

Surface defects are not random. Every burn mark, chatter line, and torn grain patch carries a visual fingerprint pointing back to a specific machine, tooling condition, or parameter setting. Shops that learn to read these fingerprints like a diagnostic language catch root causes faster and stop blaming the wrong station.

The business stakes are real. Quality-related costs run 15–20% of sales revenue at many manufacturers, and scrap and rework carry hidden costs 3–5x their visible price tag when you factor in lost capacity, rework labor, and customer relationship damage. According to NIST's 2024 manufacturing economy report, defects cost U.S. discrete manufacturers an estimated $32.0–$58.6 billion annually.

This article lays out a structured, multi-station tracing methodology, not a single-machine fix list. We walk from defect symptom back upstream to the true origin. That rough patch on your cabinet door probably didn't start at the sander. It started two stations earlier.

The Defect Fingerprint Guide: What Each Defect Type Is Telling You

Machining-induced defects (chatter, burn marks, torn grain, fuzzy grain, snipe, ridges) are entirely attributable to process variables. They don't exist until the wood has been machined. That distinction matters because every one of them is traceable and fixable.

Chatter Marks on Wide Belt Sanders

Not all chatter is the same. Wide belt sander chatter marks fall into three distinct types, each with different spacings and different corrective actions:

• Machine chatter: 1/8" to 1/4" spacing, mechanical origin (bearings, platens, or drum imbalance)
• Abrasive belt chatter: approximately 1/2" spacing, caused by belt joint irregularities or belt tension issues
• Feed chatter: irregular spacing tied to the feed drive system (worn conveyor belt, inconsistent feed roller pressure)

Each type requires a separate corrective action. Replacing the abrasive belt won't fix machine chatter, and adjusting feed speed won't solve a belt joint problem.

Burn Marks on CNC-Routed Parts

Burn marks signal a spindle RPM that's too high relative to feed rate. The bit lingers in the cut and overheats the material. The fix is a feed rate increase or RPM reduction, not a new bit. Swapping tooling without correcting the ratio just burns through more bits.

Raised Grain

Raised grain is a cross-coupled defect. Dull tools compress earlywood more than latewood during cutting, and the differential springback produces a ridged surface. The biological wood characteristic only becomes a visible defect when machining parameters are wrong.

Torn or Fuzzy Grain

These surfaces don't occur until the wood has been machined, making them directly traceable to tooling geometry, tool sharpness, or grain direction relative to cut direction. The material didn't arrive fuzzy.

Wavy Surfaces from Wide Belt Sanders

Wavy finishes often trace to a roller that's too soft, a damaged roller, incorrect grit selection, or excessive feed speed. The abrasive belt itself is rarely the culprit.

Moulder Snipe and Chatter

Snipe and chatter on moulders frequently trace to floor structure vibration, feed pressure inconsistency, or cutter geometry. Blaming the cutterhead alone misses the most common causes.

The Three-Layer Diagnostic: Machine, Tooling, or Parameter?

Before adjusting anything, determine whether the defect originates at the machine level (mechanical alignment), the tooling level (geometry, wear, runout), or the parameter level (feed rate, spindle speed, depth of cut). Running through this decision tree in order saves hours of trial-and-error adjustments.

Machine-Level Check

Inspect for spindle runout first. Runout greater than 0.001" is unacceptable for high-speed spindles and causes inconsistent surface finish, dimensional inaccuracy, and premature tool wear across an entire production run. A simple dial indicator test takes minutes and should be part of every troubleshooting sequence.

Before addressing mechanical wear, check for contamination. Chips, fines, and residue at the spindle-toolholder interface can cause runout and inconsistent finishes even when the spindle itself is in perfect condition. Cleaning the interface is a zero-cost first step that solves the problem more often than most operators expect.

Tooling-Level Check

Assess tool wear and geometry. Dull tools generate heat and compression rather than clean shear. Tool life drops dramatically when spindle runout exceeds 20% of the programmed chip load. To put a number on it: reducing runout from 0.0006" to 0.00008" can triple tool life. That's not a marginal improvement; it's a fundamental shift in your tooling cost structure.

Parameter-Level Check

Chip load is the hidden dial most woodworking shops never calculate. Too thin a chip load generates friction and heat, leading to poor finish and premature wear. Too thick a chip load causes excessive cutting force, part movement, and edge quality failure. Most shops adjust spindle speed when they see finish problems but never calculate the actual chip load their parameters produce.

Feed rate controls chip load, heat generation, and surface quality independently of spindle speed. Treating feed rate and RPM as a ratio, rather than separate settings, is the key diagnostic shift. When you adjust one, you must recalculate the other.

The diagnostic sequence: observe defect pattern, identify defect type, check machine alignment and runout, inspect tooling condition and geometry, then evaluate feed rate and chip load ratio. Work this sequence in order, every time.

Multi-Station Traceability: Why the Last Machine Is Rarely the Guilty One

The most common diagnostic mistake in production woodworking is blaming the last machine a part touched. A wavy or rough surface appearing after wide belt sanding may have originated at the moulder or CNC router two stations earlier. The sander revealed the defect; it didn't create it.

Here's how defect propagation works across stations: a slight snipe from the moulder creates a thickness variation of just a few thousandths. When that part hits the wide belt sander, the contact roller telegraphs that variation as a wavy surface. The sander operator sees the problem, but the moulder operator never does.

Chip recutting on CNC routers is another upstream problem that shows up downstream. When the tool repeatedly crushes existing chips against the workpiece, it mars the surface and accelerates tool wear. This defect often only becomes visible after sanding, when the compressed fibers spring back and reveal the damage.

Practical tracing protocol: when a defect appears at the final station, pull a part before it enters that station and inspect it. If the defect is already present, the source is upstream. Work backward one station at a time until you find clean parts. That's your origin point.

Nearly one-quarter of industrial companies still use paper-based quality processes, meaning defect patterns can repeat dozens of times before anyone connects them to a root cause. A structured tracing log, even a simple spreadsheet, eliminates this blind spot.

How Tooling Quality Directly Controls Surface Finish Outcomes

Tooling selection is not a commodity decision. Geometry, coating, and quality grade have a direct, measurable impact on surface finish in solid wood, composites, and laminates.

The choice between up-cut, down-cut, and compression spiral bits matters more than most shops realize. Up-cut spirals pull chips away from the cut efficiently but can cause tearout on the top face. Down-cut spirals push chips down for a clean top surface but can trap heat in deep cuts. Compression spirals produce clean faces on both sides of sheet goods, making them the go-to for laminated panels and melamine. The right choice depends entirely on your material and application.

Coated carbide tooling reduces friction and heat buildup compared to uncoated options, extending tool life and maintaining surface finish quality longer into the tool's life cycle. This is particularly important when cutting abrasive composites and MDF, which wear uncoated edges fast.

CTX Industrial CNC Tooling, available through Centex Automation, is engineered to tighter tolerances that reduce runout at the source, maintain edge geometry longer, and deliver consistent surface finish across extended production runs. Shops experiencing chronic surface finish inconsistency should evaluate their tooling grade before adjusting machine parameters. A premium bit that lasts 3x longer and produces fewer rejects costs less per part than a cheap bit that degrades quickly and generates rework. The visible price difference understates the actual value when you account for total cost of ownership.

Ready to eliminate surface quality issues at the tooling level? Browse CTX Industrial CNC Tooling and see the difference industrial-grade tooling makes on your line.

Maintenance Cadence as a Surface Quality Strategy

Most maintenance content focuses on machine uptime. Machine maintenance also has a direct, measurable impact on surface finish outcomes, and that connection deserves more attention than it gets.

NIST data shows that manufacturers heavily reliant on reactive maintenance had 16 times as many defects as those using predictive maintenance approaches. Facilities using preventive and predictive maintenance experience 78.5% fewer defects overall. Those numbers aren't about uptime; they're about part quality.

Proactive maintenance on CNC routers and wide belt sanders (spindle bearing inspection, roller condition checks, feed drive system calibration) directly prevents the mechanical conditions that produce chatter, runout, and wavy surfaces. Aging equipment is the top cause of unexpected failures at 29% of incidents. A worn spindle bearing or degraded feed roller will produce surface defects long before it causes a breakdown. Catching it early is a quality intervention, not just a maintenance task.

Furniture plants that shift from reactive to preventive maintenance typically see unplanned downtime drop 30–50% within the first year, with the biggest wins on CNC routers and edge banders.

Build a surface-quality-focused maintenance checklist that includes spindle runout measurement, roller hardness and condition inspection, feed drive calibration, and toolholder interface cleaning. Schedule it at fixed intervals, not just when defects appear. By the time you see the defect, you've already produced a batch of bad parts.

Put the Diagnostic Framework to Work on Your Line

Here's the framework in sequence:

1. Read the defect fingerprint to identify the defect type
2. Run the three-layer diagnostic: machine, tooling, or parameter
3. Trace upstream before adjusting the last machine in the line
4. Evaluate tooling grade and chip load calculations
5. Build a maintenance cadence that prevents recurrence

The business impact of this approach is significant. Increasing your quality rate from 83% to 93% can boost OEE from 59.9% to 67.2%. Surface defect reduction is one of the highest-leverage moves a production manager can make, and most of these defects are both preventable and repeatable in their root causes. The goal is to stop treating them as inevitable and start treating them as diagnostic data.
