Panel Processing Line Design for Cabinet Shops: The 5-Step Sequence That Maximizes Throughput

The Hidden Throughput Killer in Most Cabinet Shops

Most cabinet shops are running their machines in the wrong order, costing hours every day in rework, waiting, and wasted material. The real bottleneck is not a slow machine. It is poor sequencing.

The most common mistake: drilling before edgebanding. When you drill into a raw panel edge, you get chip-out at drill entry points and misaligned hole patterns because the reference edges are not square yet. That single sequencing error cascades through the entire production line.

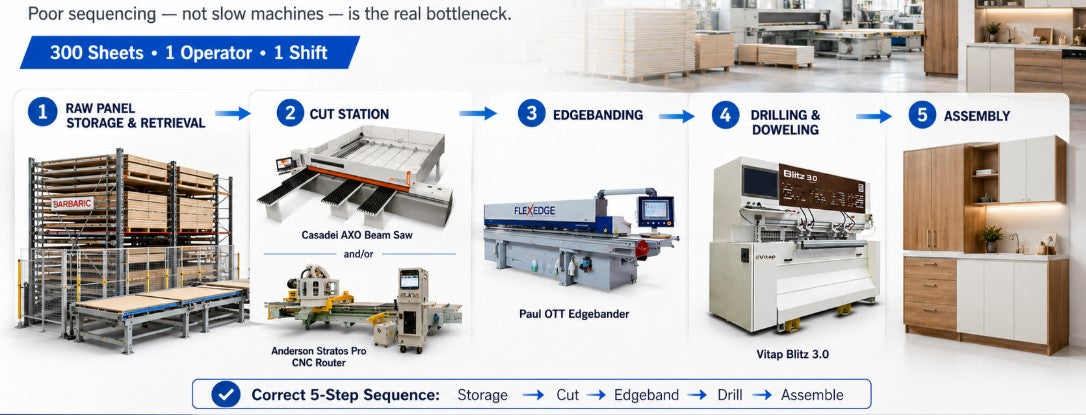

The correct 5-step sequence is straightforward: raw panel storage and retrieval → beam saw or CNC nesting cut → edgebanding with return conveyor → dedicated drilling and doweling → assembly. A properly sequenced line can process 300 full sheets per shift with a single operator, cut, edgebanded, drilled, and ready for hardware.

At Centex Automation, we design entire panel flows for cabinet shops. We do not just sell individual machines; we engineer the sequence that connects them.

Step 1: Raw Panel Storage and Retrieval — The Missing First Link

Most guides on panel line design skip straight to the saw. If your first cut station is starving for material because someone is wrestling 4x8 sheets off a stack with a forklift, your entire line runs at the speed of manual handling.

Manual panel retrieval creates three problems at once: inconsistent feed rates to the saw, mislabeled or misoriented sheets, and physical fatigue that slows the operator before the first cut is even made. Every minute the saw sits idle waiting for material is a minute of lost throughput you never recover.

Automated storage and retrieval systems (AS/RS), such as Barbaric panel storage systems, solve this by feeding the beam saw or CNC nesting router with precisely labeled sheets. These systems enable batch sequencing by job or material type, so the right panel arrives at the right machine at the right time.

Your saw or CNC router can only run at capacity if material is delivered consistently. AS/RS eliminates the upstream constraint entirely. This is a core Lean principle: eliminate waste at every step, starting before the first cut. If you are designing a panel line and ignoring what happens before the saw, you are building a bottleneck into the foundation.

Step 2: The Cut Station — Beam Saw, CNC Router, or Both?

Once panels are staged and ready, the cut station determines both the quality and pace of everything downstream. You have two primary options here, and increasingly, the smartest shops are using both.

Beam Saw: The Casadei Busellato AXO Series

The Casadei Busellato AXO series (AXO 200 through AXO 500 HD) are automatic horizontal beam saws built for high production rates. The rear-loading table models, specifically the AXO 400T and AXO 500T HD, handle very high-volume rectangular panel cutting with speed and precision. Intelligent beam saw controls that eliminate unnecessary blade-stop delays can deliver 20 to 30% more productivity compared to conventional operation.

CNC Nesting Router: The Anderson Stratos Pro Full Auto

The Anderson Stratos Pro Full Auto is a different animal. With its 18 HP 4-pole air-cooled spindle, automatic tool changer, multi-spindle boring unit, automatic vacuum zone table, and moving gantry design, it functions as a high-throughput nesting center. It handles shaped parts and complex machining that a beam saw simply cannot do. Automated nesting routines on machines like these boost material yield by 30 to 40% compared to sliding or panel saws.

The Hybrid Approach

The trend in mid-to-large cabinet shops is hybrid modular manufacturing: use the beam saw for rectangular panels and the CNC router for shaped parts and complex machining. This frees the router from rectangular cutting and protects it as the throughput bottleneck. Over 135,000 CNC woodworking machines were sold globally in 2024, a 19% increase from the prior year, confirming that CNC automation is now industry standard, not a niche investment.

One critical point: cutting accuracy at the saw or CNC directly affects edgebanding quality, drilling alignment, and final cabinet appearance. The cut station is the quality-critical first step. Errors here are amplified at every downstream station.

Step 3: Edgebanding with Return Conveyor — One Operator, All Four Sides

This is where sequencing discipline pays off. Edgebanding must come before drilling. The edgebander squares up the reference edges that the drill station uses for hole placement. Drilling first produces chip-out at drill entry points and holes that do not align because the reference edges were not finished.

The Paul OTT edgebander with TRANSlift return conveyor system handles panels up to 1300 x 3000 mm, with vacuum-lifter rotation of +/- 90° or 180°, fully integrated with the edgebander's control system. The TRANSlift returns panels automatically to the operator after each pass, enabling a single-operator edgebanding cell for all four sides with no second person needed at the infeed.

The pre-milling function is critical when a beam saw is the upstream cut station. Beam saws leave a rougher edge profile than CNC-routed parts, and pre-milling eliminates saw-mark cleanup that typically adds 30 to 45 minutes of manual labor per shift — real time recovered every day.

For premium cabinet shops, PUR adhesive and zero-glue-line technology through the Paul OTT Combimelt system is becoming a baseline expectation, not a luxury upgrade. Consumers expect invisible seams in custom cabinetry, and this technology delivers them consistently.

The beam saw and edgebander should be treated as one connected process, not two separate machines. In a labor market where finding skilled operators is a constant challenge, a single-operator edgebanding cell directly addresses that constraint.

Step 4: Dedicated Drilling and Doweling — Protect Your CNC Router

In a beam saw plus point-to-point line, the CNC machining center is typically the bottleneck. It produces fewer parts per minute than other stations. Using it for drilling compounds that constraint and chokes overall throughput.

The solution is a dedicated CNC drilling and doweling machine. The Vitap Blitz 3.0 features laser measurement and 3 vertical plus 3 horizontal spindles, making it a precise, fast, dedicated drilling station. The Vitap Blitz 4.0 adds a horizontal router for machining fastener pockets for systems like Lamello Clamex and Cabineo, making it the ideal final machining station before assembly.

Separating drilling from the CNC router protects the router as the true bottleneck and increases overall line throughput. More shops are adopting this approach as they recognize that combining operations on a single machine creates a compounding constraint.

The sequence logic reinforces itself here: edgebanded panels arrive at the drill station with square, finished reference edges. Hole placement is accurate. Rework drops to near zero. The Vitap Blitz series serves as the final machining station before assembly in a properly designed panel line.

Protecting Your Bottleneck: Lean Buffers and Line Balancing

Identifying your bottleneck is only half the job. You need to protect it. The Lean principle is straightforward: place a WIP (work-in-process) buffer before the bottleneck station so upstream downtime does not starve it, then place a buffer after the bottleneck so it keeps running even if a downstream machine goes down.

This matters more than most shops realize. Production bottlenecks cost U.S. manufacturers an estimated $50 billion per year. Over 70% of manufacturers that adopted Lean principles in 2024 saw approximately a 15% increase in operational efficiency. Proper sequencing and buffer design directly address both problems.

Floor layout plays a role too. Linear, U-shape, and L-shape arrangements each affect WIP travel distance and operator ergonomics differently. CAD/CAM and MES software integration across the panel line enables near-lights-out processing and reduces setup time between jobs. Centex Automation's Lean throughput consulting and line assessment services help shops design the entire flow, from physical layout to software integration, not just individual machine selection.

Design Your Panel Line with Centex Automation

The correct 5-step sequence, and the machines that power each step:

1. Barbaric AS/RS for automated panel storage and retrieval
2. Casadei Busellato AXO beam saw and Anderson Stratos Pro Full Auto CNC router (or both) at the cut station
3. Paul OTT edgebander with TRANSlift return conveyor for single-operator, all-four-sides edgebanding
4. Vitap Blitz 3.0 or 4.0 for dedicated drilling and doweling
5. Assembly

300 sheets. One operator. One shift. That benchmark is achievable with the right sequence and the right equipment.

As an authorized dealer and service provider for over 20 leading industrial woodworking brands, Centex Automation offers the full package: machine sales, technical repair, preventative maintenance, process improvement consulting, and financing options for machinery purchases.

Ready to stop losing throughput to poor sequencing? Contact Centex Automation at www.centexautomation.net for a panel line assessment and throughput consultation. We are not here to sell you a machine and move on. We are here to be your long-term production partner as your shop grows.
