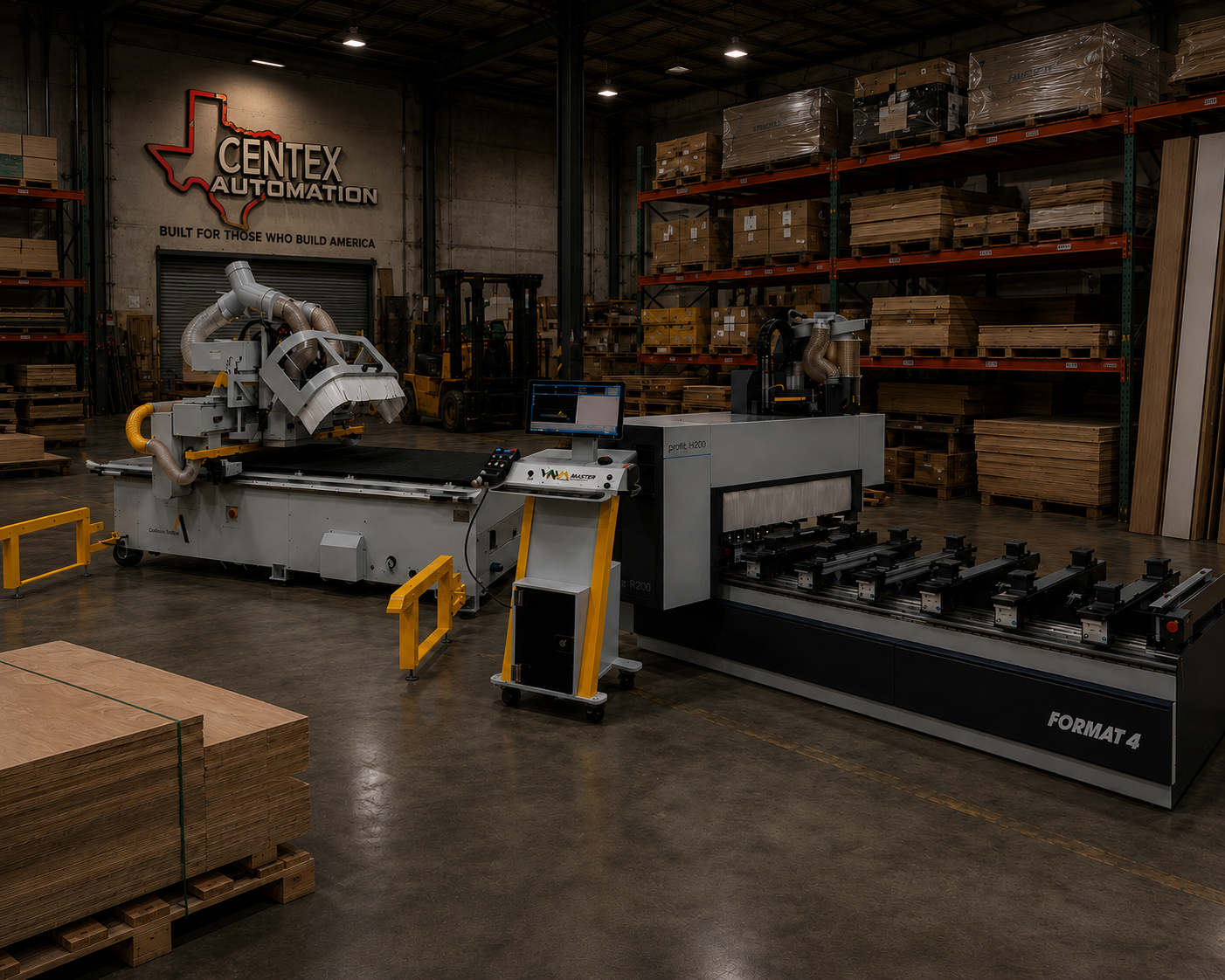

Nesting vs. Point-to-Point CNC: Which Architecture Maximizes Panel Throughput?

You're Not Buying a CNC Router — You're Buying a Production Architecture

When shops compare the Anderson America Selexx to the Format4 profit H200R, the conversation usually starts with spindle specs and axis speeds. That's the wrong starting point. What you're actually choosing between is two fundamentally different production architectures: flat-table nesting versus pod-and-rail point-to-point machining.

This distinction matters more than ever. CNC routers held 36.1% of the woodworking machinery market in 2025 and are growing at a 5.8% CAGR, with panel processing as the dominant use case fueling that expansion. For cabinet shops and panel furniture manufacturers, the central question isn't which machine has the better spec sheet. It's which architecture actually maximizes throughput per shift.

We carry both brands. We'll give you an architecture-first answer, not a sales pitch.

How Nesting Architecture Works: The Anderson America Selexx

Flat-table nesting is straightforward in concept: a full sheet of material loads onto the table, the CNC router cuts every part from that sheet in a single cycle, and the completed nest of parts is offloaded. No pre-cutting. No individual part handling during machining. One sheet in, dozens of parts out.

The Anderson America Selexx is purpose-built for this workflow. It's available in three table sizes to match your sheet requirements: the MATE (4×8'), PAL (5×10'), and CHIEF (5×12'). The cast iron gantry, HSK electro-spindle, and onboard 8-position tool changer with multi-spindle boring head allow drilling, routing, and grooving in a single uninterrupted cycle.

One standout feature is the ride-along tool changer, which eliminates up to 500 unnecessary rapid traverses per shift. That directly reduces cycle time and cuts down on machine wear over the long haul.

For shops ready to push automation further, the Selexx Full Line adds a scissor lift indexing table with a 3-ton capacity, a 6-cup auto-loader, an integrated vacuum cleaning system, automatic conveyor offload, and an optional label printer. The result is a true single-operator nesting cell.

In production environments, the Selexx Series can process up to 50 sheets of nested cabinet parts per day. Each sheet cycles in roughly 5 to 8 minutes. While the machine runs the current sheet, the operator can edgeband parts from the previous batch. That parallel workflow is a throughput multiplier you cannot replicate on a point-to-point setup, where the operator must handle each part individually.

How Point-to-Point Architecture Works: The Format4 Profit H200R

Pod-and-rail architecture works differently. Parts are pre-cut to size (typically by a beam saw) and then individually loaded onto vacuum pods and consoles for machining. The machine works one part at a time. Between different part sizes, the operator must reposition vacuum pods, a process that adds setup time to every batch change.

The Format4 profit H200R is a well-engineered machine built for universal workshop use, targeting doors, windows, staircases, and solid wood furniture. It features a 12-position linear tool changer, a 12 to 15 kW main spindle running up to 24,000 RPM with HSK F63 clamping, and a vertical drilling unit with 12 spindles (7 in X, 5 in Y). An optional 4-spindle horizontal drill unit rounds out the boring capability.

Where the H200R genuinely excels is its optional C-axis, a 4th interpolating axis with 360° rotation and an aggregate interface. This enables angled drilling, edge machining, and solid wood joinery that a flat-table nesting router cannot replicate without additional setups. For staircase fabricators and door manufacturers, this is a critical capability.

The optional Performance Package boosts X and Y axis speeds by up to 30% and optimizes positioning and rotation speeds by up to 80%, with jerk control to maintain surface quality. The F4®Integrate software suite and LightPos LED pod-positioning system help reduce setup errors, though pod placement remains a manual process.

To be direct: the H200R is an exceptional machine for solid wood, doors, windows, and staircases. Shops evaluating it primarily for flat panel cabinet production may be mismatching the machine's architecture to their actual workflow needs.

Throughput Showdown: Panel Processing Head-to-Head

Consider a realistic scenario: a cabinet shop running 25 to 30 sheets per day of standard carcass parts. Here is how these two architectures compare.

Cycle Time

The Selexx processes an entire sheet (all nested parts) in 5 to 8 minutes, with automatic load and unload on the Full Line version. The H200R requires individual part loading, pod repositioning between sizes, and per-part machining. The cycle time per equivalent sheet of output is significantly higher on the point-to-point, because parts run sequentially rather than being cut all at once.

Labor

This is where the gap widens. Nested-based manufacturing with the Selexx Full Line can be run by a single operator. Industry benchmarks consistently show that a process requiring 4 to 5 people using a panel saw and point-to-point combination can be accomplished with 2 to 3 people on a nesting router. That's a 40 to 50% labor reduction. With labor scarcity remaining the top pain point for cabinet shops across North America, this is not a minor consideration.

Material Yield

Advanced true-shape nesting software can push material yield from roughly 70% up to 95% or higher. Shops routinely report a 10 to 15% reduction in total material consumption after switching from manual or rectangular nesting layouts. A beam saw and point-to-point workflow generates rectangular blank waste on every non-rectangular part. For a shop processing 50 sheets per day, even a 10% yield improvement can save tens of thousands of dollars annually.

The Kerf Objection

Some shops raise the concern that router kerf wastes more material than a beam saw blade. Modern compression tooling and high-feed cutting strategies have largely neutralized this trade-off for flat panel work. The yield gains from true-shape nesting far outweigh the marginal kerf difference.

Software Ecosystem

The Selexx runs on a FANUC OiM-F control with broad CAD/CAM compatibility, including Cabinet Vision, Microvellum, and Mozaik. The H200R uses Format4's proprietary F4®Integrate and F4®Solutions platform. Shops should carefully evaluate software lock-in implications before committing. The screen-to-machine pipeline is increasingly a buying decision driver, not an afterthought.

Floor Space and Infrastructure

The Selexx Full Line requires a larger footprint to accommodate the scissor lift, auto-loader, and conveyor. The H200R has a smaller machine footprint, which matters for shops with constrained facilities. The H200R also requires 8 bar compressed air at 350 Nl/min and draws 18 kW total power. Factor infrastructure costs into your total investment calculation.

Which Architecture Is Right for Your Shop?

The Selexx is built for: cabinet shops, flat-panel furniture manufacturers, and millwork firms running 20 to 50+ sheets per day of mixed SKU panel parts. If you're facing labor scarcity and want a single-machine production cell with automated material handling, this is the architecture designed for your workflow.

The H200R is built for: solid wood shops, door and window manufacturers, staircase fabricators, and custom joinery operations that need C-axis aggregate machining and work primarily with pre-dimensioned solid wood or MDF components. It is not primarily a flat sheet nesting platform.

The broader industry trend reinforces this distinction. Mass customization is pushing cabinet shops away from high-volume identical-part runs and toward mixed, custom jobs. The Selexx's sheet-by-sheet flexibility is built for exactly this shift. Meanwhile, high-throughput shops are increasingly adopting hybrid workflows, pairing a nesting router for machined parts with a beam saw for simple rectangular cuts. The Selexx fits naturally as the CNC core of that hybrid cell.

At Centex, we offer lean management and throughput consultation to help shops map their actual part mix, volume, labor situation, and floor space before selecting an architecture. The right machine depends on your workflow, not on a brochure. We also offer financing options for both machine types to help you invest in the right production architecture on a timeline that works for your business.

Make the Architecture Decision Before You Make the Machine Decision

The machine is the output of the workflow decision, not the starting point. For panel-dominant shops, nesting architecture offers a clear throughput advantage: single-operator capability, automated load and unload, true-shape nesting software, and up to 50 sheets per day of production capacity.

The Format4 profit H200R is a legitimately excellent machine for its intended applications. We carry both brands across our 20+ brand portfolio, and we'll recommend the right fit based on your actual production requirements, backed by full-service support including repair, spindle service, and software consultation.

Fully automatic CNC is the fastest-growing woodworking machinery segment at 6.1% CAGR. U.S. housing starts reached 1.487 million units (annualized) in January 2026, up 9.5% year-over-year. Demand for cabinet and millwork panel processing is not slowing down. Shops that invest in the right architecture now will be positioned to capture that growth.

Ready to determine which architecture fits your shop? Contact Centex for a throughput consultation, or explore the Anderson America Selexx and Format4 profit H200R lines with our team. We're your partner in this decision, not just a vendor.
