Guffey PivotLine Quick-Start Kits: The Complete Guide to Vertical Finishing for Cabinet Shops
Why Your Finishing Room Is the Bottleneck — And What to Do About It
If your shop is struggling to keep up with demand, the problem probably isn't your CNC router or your edgebander. For most cabinet and millwork operations, the finishing department is the single biggest throughput constraint on the floor. In an industry valued at over $131 billion, the competitive pressure to push more product out the door has never been higher.
Traditional flat finishing is slow, labor-intensive, and physically punishing. Operators hunch over parts for hours, flipping and repositioning pieces one at a time. The alternative — a six-figure automated flatline system — is out of reach for many shops. The Guffey Systems PivotLine Quick-Start Kit fills that gap: a modular vertical finishing system that delivers serious throughput gains without the capital commitment of full automation.
What Is the Guffey Systems PivotLine System?

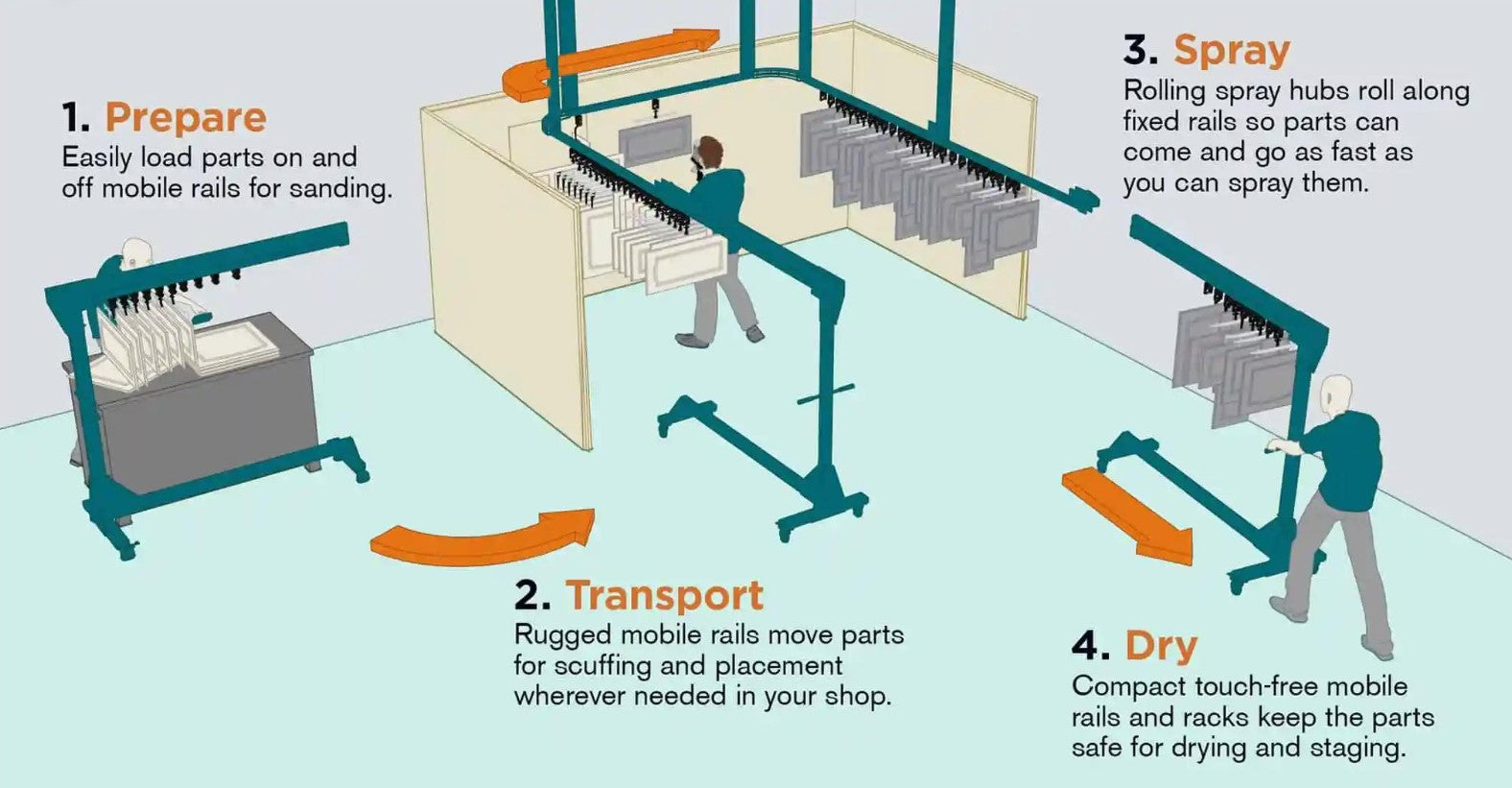

The PivotLine is a manual-rail finishing system built around several core components: stationary rails, mobile rails, rolling spray hubs, hangers (offset and universal), T-bars in three sizes, and EFC Spring Clips. Together, these parts create a rail-based workflow where cabinet doors, drawer fronts, and other components hang vertically while being sprayed.
The rolling spray hubs are the heart of the system. Each hub pivots in 90° increments, allowing the finisher to rotate a part and spray all sides without ever touching the finished surface. This eliminates the wait-and-flip cycle that bogs down flat finishing.
Ergonomics matter here, too. Finishers spray at eye level while standing upright, rather than bending over a flat table for an entire shift. For shops dealing with labor shortages and retention challenges, reducing physical strain on skilled employees is a real operational advantage.
All hangers attach only to non-visible surfaces, so there are no attachment marks on finished components. The system is fully patented, manufactured in Seymour, TN, and ships fully assembled within 48 hours of ordering. Guffey Systems earned IWF 2022 Challengers Awards finalist recognition for both the PivotLine and PivotPoint systems, and Nathan Guffey was named to Woodworking Network's 40 Under 40 class of 2022.
All 8 Quick-Start Kit Variants: Configurations and Mount Types Explained
Buyers choose along two axes: four layout configurations and two mount types (floor and ceiling), giving you eight total kit variants. Every kit is designed to process approximately 40 parts at a time and is expandable as your production volume grows.
The Four Layout Configurations
18 ft. Straight: The largest footprint and highest capacity option. Ideal for shops with linear spray booth runs. The 6 ft. rail sections can be cut shorter if your booth requires it.
12 ft. Straight: Creates a directional flow from the infeed mobile rail, across the stationary rail, and onto the outfeed mobile rail. A solid mid-size option for shops that don't need the full 18 ft. run.
6'x6'x6' U-Shape: Best suited for open-face or enclosed booths with a square footprint. This configuration enables continuous directional flow through the spraying area and is a strong choice for shops that want to keep everything compact.
6'x12' L-Shape (including reversible variant): A flexible corner configuration for shops with irregular booth layouts or limited straight-run space. The reversible option lets you mirror the layout to match your workflow direction.
Floor Mount vs. Ceiling Mount: Which Is Right for Your Shop?
Floor mount kits work best in shops with low ceilings, concrete floors with solid anchor points, or spray booths that lack overhead structural support. They're straightforward to install and don't require any assessment of ceiling load capacity.
Ceiling mount kits free up valuable floor space and are ideal for shops with taller booths and accessible overhead structure. If your booth floor is already crowded with carts, turntables, or other equipment, going overhead can simplify your workflow.
Both mount types are available for all four configurations, so you're never locked out of a layout based on your mounting preference. Before ordering, run through this quick checklist:
- What is your booth ceiling height?
- What type of ceiling structure do you have (open joists, steel framing, drywall)?
- Can your floor accept concrete anchors?
- What is your preferred workflow direction (linear, U-turn, corner)?
If you're unsure which mount type fits your setup, our team at Centex Automation can help you evaluate your booth and select the right option.
What's Inside a Quick-Start Kit: Component Breakdown
Using the 18 ft. Straight Floor Mount Kit (part number PL-18FLS) as a reference, here's what's included:
- 1 PivotLine Stationary Rail Kit, 18' Straight
- 2 Mobile Rails
- 20 Rolling Spray Hubs
- 4 Twist Stops
- T-Bars: Short (17"), Medium (34"), and Large (46")
- 20 Offset Hangers
- 10 Universal Hangers
- 60 EFC Spring Clips
Each component type has a specific role. The stationary rail anchors the system to your booth structure. Mobile rails move loaded parts in and out of the spray zone. Rolling spray hubs hold and pivot individual parts during finishing. T-bars, hangers, and EFC Spring Clips work together to secure components of varying sizes to the hubs.
Every kit arrives fully assembled — no fabrication, welding, or custom machining required on your end. The Quick-Start Kits were featured in the January 2025 issue of Woodshop News, which highlighted their expandability; you can add rails, hubs, and hangers incrementally as your finishing volume increases.
Quick-Start Kit Pricing and ROI Potential
Pricing across the eight variants ranges from $7,653.80 for the 18' Straight Floor Mount to $13,964.00 for the 6'x6'x6' U-Shape Floor Mount. Ceiling mount variants fall between $10,056.20 and $11,301.40. The 12 ft. Straight Floor Mount sits at $12,085.70.
For context, a fully automated flatline finishing system can easily run $100,000 or more before installation and integration costs. The PivotLine Quick-Start Kit gets you into vertical finishing at a fraction of that investment.
The throughput gains are where the ROI story gets compelling. Guffey Systems reports that the PivotLine makes finishing operations up to 2.5x faster and can double or triple throughput compared to traditional flat methods. Consider Pig House Cabinets in Ringgold, GA: a 15-employee shop operating in 10,000 sq. ft. They previously sprayed 60 to 120 parts per day flat with two operators. After adopting the PivotLine, they converted to all-vertical finishing and now complete both sides of all parts in a 6-hour day with significantly less wasted movement and rework.
Industry data backs up the broader principle: well-organized production spaces that minimize material handling can increase output by up to 30%. The PivotLine directly attacks unnecessary handling, flipping, and repositioning. Centex Automation also offers financing options for shops that want to spread the investment over time.
Installation and Getting Up and Running in Under a Day
One of the most practical advantages of the PivotLine Quick-Start Kit is installation speed. The system can be installed and operational in less than one day — compare that to automated flatline systems that often require days or weeks of setup, calibration, and integration.
The general installation sequence is straightforward:
- Mount the stationary rail to your booth structure (floor or ceiling).
- Attach the mobile rails.
- Hang the rolling spray hubs on the stationary rail.
- Attach hangers and EFC Spring Clips to the hubs.
- Load your first batch of parts and start spraying.
No professional installation crew is required. Your shop staff can complete the setup with standard tools. With Guffey Systems' 48-hour ship time from Seymour, TN, a shop can realistically order a kit and be finishing vertically within the same week.
One more detail worth noting: every component purchased for a PivotPoint entry-level setup is fully compatible with the PivotLine system. If you start with PivotPoint and later upgrade to PivotLine, your existing hardware carries over. Nothing gets scrapped.
Is a Guffey PivotLine Quick-Start Kit Right for Your Shop?
The ideal buyer is a cabinet shop, furniture manufacturer, millwork firm, or composite fabricator that's currently finishing flat and hitting a wall on throughput or wearing out finishers physically. If your finishing room is the constraint holding back the rest of your production line, the PivotLine is built to solve that specific problem.
The modular design means you don't have to commit to a massive system on day one. Start with a single Quick-Start Kit, add rails and hubs as volume grows, and upgrade from PivotPoint to PivotLine without losing your initial investment. Every kit is USA-made and ships within 48 hours.
Ready to figure out which configuration and mount type fits your shop? Contact Centex Automation for help selecting the right kit, planning your layout, and exploring financing options for your operation.
