FORMAT4 profit H150: 5-Axis CNC Nesting Explained

By: Terrence Lewis

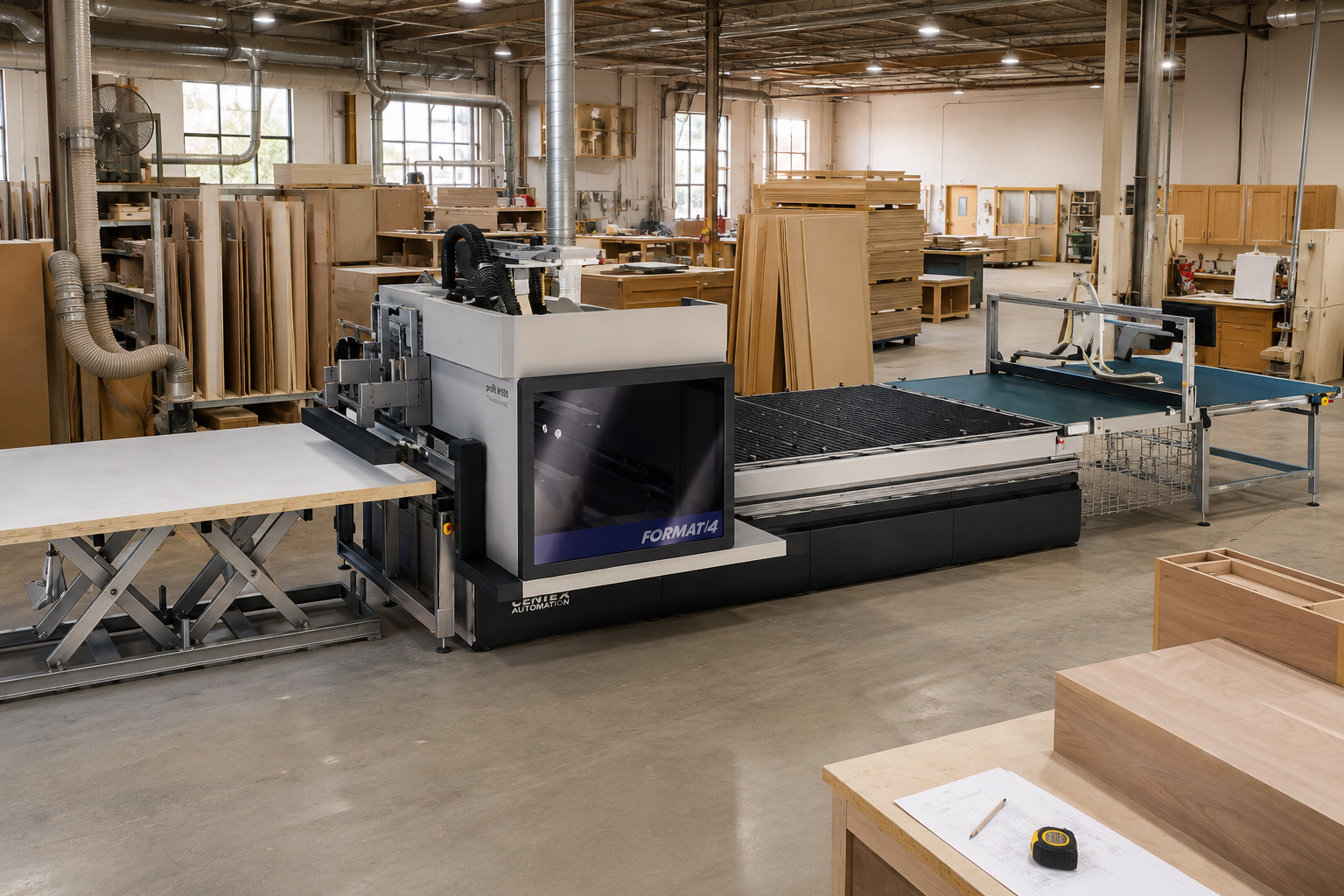

What Makes the FORMAT4 profit H150 a Different Class of CNC Nesting Machine

Every hole, groove, and connection completed in a single operation. That is the "done-in-one" promise of the FORMAT4 profit H150, and it fundamentally changes how shops approach panel processing. Where a conventional 3-axis nesting machine limits you to vertical tool paths (drilling straight down and routing flat profiles), the profit H150 adds full 5-axis capability: angled cuts, compound miters, and complex joinery all happen on the same table, in the same cycle, with zero secondary setups.

Developed by Felder Group at their headquarters in Hall in Tirol, Austria, the profit H150 is the flagship 5-axis CNC nesting machining centre in the FORMAT4 lineup. FORMAT4 has served as Felder Group's premium CNC division since 2001, with machines and software engineered together under one roof.

At the heart of the H150 sits a high-performance moulder spindle: 12 kW standard (15 kW optional), liquid-cooled with ceramic bearings, spinning up to 24,000 RPM and capable of machining at any angle. The C and A axes lock mechanically during operation, a technical detail that extends spindle service life and produces noticeably better surface finishes compared to systems relying on servo pressure alone. This is a machine built for shops that need precision across every axis, not just X, Y, and Z.

Key Specifications and Table Configuration Options

The profit H150 is available in four table sizes: 16.38, 22.32, 22.43, and 22.61. These map directly to the panel formats your shop actually uses. The 16.38 handles standard 4×8 sheets, the 22.32 and 22.43 cover 5×10 panels, and the 22.61 accommodates oversized 7×10 formats. Choosing the right table size means you are not paying for capacity you do not need, and you are not constrained when jobs call for larger stock.

Felder Group's SMART ZONING vacuum management system is integrated into every table configuration. In practical terms, SMART ZONING lets you switch between panel formats quickly, run pendulum operation (loading one side while the spindle machines the other), and process mixed-size workpieces in a single run without manually reconfiguring vacuum zones.

The table itself is a phenolic resin matrix surface. It will not corrode and is unaffected by thermal expansion or contraction. It also supports vacuum block pods for shops that need additional fixturing variability. A generous 200 mm Z passage accommodates tall workpieces, and the set-back front stop row ensures unrestricted 3-, 4-, or 5-axis spindle access when machining individual parts.

The tool changer system holds up to 36 tool positions through a combination of the standard changer, an optional moving rotary tool changer, and a dedicated pick-up space for a large saw blade. That tool capacity means fewer interruptions during complex nested runs.

Performance Package: Speed, Precision, and Surface Quality

The optional Siemens-based performance package pushes the profit H150 further. It delivers up to 30% faster axis speeds in the X and Y directions and up to 80% optimized positioning and rotation speeds. For a cabinet shop running multiple nested sheets per shift, those gains translate directly into additional panels processed per day.

Multitouch control and jerk control work together to produce superior surface finishes. Jerk control smooths acceleration and deceleration curves, reducing vibration marks on finished surfaces. For furniture and architectural millwork where surface quality is non-negotiable, this matters. Across the industry, CNC automation deployments consistently deliver 40 to 70% cycle time gains. The H150's performance package positions operations at the upper end of that range.

Ideal Applications for the FORMAT4 profit H150

Cabinet shops represent the largest single segment of CNC tool usage in North America, accounting for roughly 40% of the market. The profit H150 handles complete cabinet component machining (drilling, routing, grooving, and shaping) in a single nested run. No secondary drilling station. No offline edge detail work. One machine, one cycle.

Custom furniture manufacturers benefit from the H150's ability to produce one-off bespoke designs at production speeds. Mass customization demand continues to grow, and this machine lets you respond to it without sacrificing throughput on standard product lines.

Architectural millwork firms regularly encounter complex angled cuts, compound profiles, and tall workpieces that 3-axis machines cannot process without secondary operations. The H150's 5-axis spindle and 200 mm Z passage handle these jobs in a single setup.

Composite fabricators will appreciate that the profit H150 processes wood, plastics, and aluminum composite panels. Shops diversifying their material mix gain a single platform for multiple substrates.

If your operation currently runs a FORMAT4 H08, H80I, or H100 (all 3-axis nesting machines), the step up to the H150 makes sense when you are consistently running into limitations on angled machining, compound joinery, or secondary operation bottlenecks. We have published a detailed FORMAT4 nesting CNC comparison guide that walks through best-fit use cases for each model.

Nested-Based Manufacturing, Automation, and Industry 4.0 Integration

Nested-based manufacturing (NBM) is the practice of arranging all required parts for a job onto full sheets and machining them in a single pass. The efficiency gains are significant. Intelligent nesting software achieves 85 to 95% sheet utilization, compared to 60 to 75% with manual layout. That difference saves 20 to 40% on raw panel costs. For shops spending six figures annually on sheet goods, the math is compelling.

There is also a sustainability angle. NBM can reduce overall materials usage by up to 30%, which alone can generate a positive return on the machine investment. Lean manufacturing and waste reduction are not just operational goals; they are increasingly tied to customer expectations and green certifications.

The F4®Solutions software ecosystem turns the profit H150 into a true Industry 4.0 platform. It covers the entire production chain: CAD design and photorealistic 3D rendering, nesting optimization, machine data transfer, and final assembly documentation. Everything comes from a single supplier, eliminating the compatibility issues that arise when shops stitch together software from multiple vendors.

At the core is F4®Integrate, a G-Code based system that connects with external industry programs while unifying F4Toolbox (tool library), F4Create (CAM/CAD), and F4Operate (machine control) in one interface. Your programming team works in a single environment from design through production.

One feature that deserves specific attention is the automatic pre-labeling system. Mounted on the loading table, it places component labels in the correct position before processing begins. This eliminates post-processing labeling errors and improves downstream assembly efficiency. If your shop has ever lost time sorting unlabeled or mislabeled parts on the assembly floor, you understand why this matters.

The profit H150 also supports a modular automation upgrade path. Loading and unloading solutions, pendulum operation, and progressive automation additions let mid-size operations move toward lights-out manufacturing at their own pace, without requiring a full factory overhaul on day one.

Reducing Labor Dependency and Calculating ROI

The labor picture in woodworking is not improving. More than 25% of skilled tradespeople in the industry are nearing retirement, and fewer young workers are entering the trade. For cabinet shops and millwork firms, this is a current constraint on growth, not a future concern.

The profit H150 directly addresses this by allowing one operator to manage complex multi-axis operations. Instead of running a single machine, that operator supervises a cell. The machine handles the precision work. The operator manages workflow, material loading, and quality checks.

When calculating ROI on a 5-axis nesting investment, combine these factors: material savings (up to 30% reduction through optimized nesting), labor reduction (fewer operators, fewer secondary stations), cycle time gains (40 to 70% improvement), and the elimination of secondary operations that previously required separate machines and additional handling.

A real-world example: a 15-person architectural millwork shop that invested $300,000 in CNC equipment and software integration reported full ROI in 24 months. The payback was driven by labor cost reduction and increased production capacity. That is a concrete benchmark for shops evaluating a similar investment.

We offer financing options to make this kind of capital investment accessible. The timing is also worth noting: fully automatic CNC is the fastest-growing segment of the woodworking machinery market at a 6.1% CAGR. Shops investing now are positioning ahead of competitors who wait.

Why Manufacturers Choose Felder Group USA and Centex Automation

Centex Automation is a consultative partner, not a box mover. We provide full-service support including repair, maintenance plans, spindle service, custom upgrades, and software consultation. When you invest in a profit H150, you get ongoing technical support from a team that knows the machine inside and out.

Our portfolio spans 20+ industrial woodworking brands, with FORMAT4 as the premium CNC offering. We also provide lean management and throughput consultation services, helping shops optimize floor layout and workflows around their new equipment. The goal is not just to sell a machine; it is to ensure that machine delivers the production gains your operation needs.

Our published FORMAT4 nesting CNC comparison guide is one example of the buyer guidance we provide. Felder Group USA backs this with machines and software from a single supplier in Austria, giving you unified accountability for both hardware and software performance.

Is the FORMAT4 profit H150 Right for Your Operation?

The ideal buyer is a cabinet shop, furniture manufacturer, millwork firm, or composite fabricator running complex custom work at production volumes where 3-axis nesting has become a bottleneck. If you are spending time on secondary setups, losing material to inefficient nesting, or struggling to staff skilled positions, the H150 addresses all three problems.

The core value drivers are clear: material efficiency (85 to 95% sheet utilization), labor independence (one operator managing a multi-axis cell), and Industry 4.0 integration (the F4®Solutions digital thread from design through assembly).

If you are evaluating where the H150 fits relative to the FORMAT4 H08, H80I, or H100, our FORMAT4 nesting CNC comparison guide breaks down the differences in detail.

Ready to talk specifics? Contact Centex Automation to discuss your production requirements, walk through the specifications, and explore financing options. We will help you determine whether the profit H150 is the right fit for your shop floor.
