What a nested CNC does best (and why it wins ROI)

A nesting CNC is a panel cutting, drilling, and milling center designed to process a full sheet and produce finished parts in one workflow—often with drilling, grooves, and connection machining completed in the same cycle.

For most shops, nesting CNC ROI comes from four levers:

1. Material yield optimization (nesting reduces waste)

2. Labor reduction (fewer touch points than saw → drill → router workflows)

3. Repeatability (holes, grooves, and joinery are consistent run to run)

4. Schedule control (parts output becomes more predictable and scalable)

The three models: where each one fits

1) FORMAT4 profit H08

“Professional nesting in the smallest footprint”

If you need true nesting capability but your floor space is tight, the profit H08 is positioned as professional nesting applications in the smallest of spaces.

It’s also notable for the range of materials it calls out explicitly for efficient processing, including:

• wood

• plastics

• aluminum composite panels

• plasterboard

That makes the H08 a practical option for shops that aren’t purely wood—think architectural interiors, exhibit builders, sign/plastics, and certain composite panel applications.

Key highlights called out by Felder include:

• matrix table “optimized grid geometry” for nesting

• gantry-style portal design with rack-and-pinion motion for speed and repeatability

• safety via light beam sensor control and emergency stop

• “machines and software from one supplier” + barcode connection for networked shops

Best-fit buyer profile:
Entry-to-mid nesting buyer, limited space, mixed materials, wants professional capability without building a full automation cell.

2) FORMAT4 profit H80I

“Connected ‘4.0’ furniture production + automation-ready”

The profit H80I is positioned around “4.0 furniture production” in the context of Felder’s F4Solutions workflow—design, nesting, production, and even assembly documentation as a continuous process.

Felder’s emphasis here is not just the machine—it’s the system:

• design in a CAD environment

• consistent data flow to integrated machines

• economic nesting optimization

• assembly documentation support

Production features called out include:

• Smart Zoning for quick switching between common sheet formats (4×8, 5×10, 7×10)

• automation options up to fully automated cells (loading/unloading solutions)

• spindle options listed as 10/12/15 kW up to 24,000 rpm (series-dependent), HSK F63 clamping with sensor checks

• drill head configuration choices, including a version with a grooving saw for vertical and horizontal processing

• an “extraction bell” concept to optimize suction results and reduce required extraction volume

Best-fit buyer profile:
Shops that want high-efficiency nested production plus a stronger digital workflow story—cabinet/furniture/millwork operations that need consistent output and want to scale without chaos.

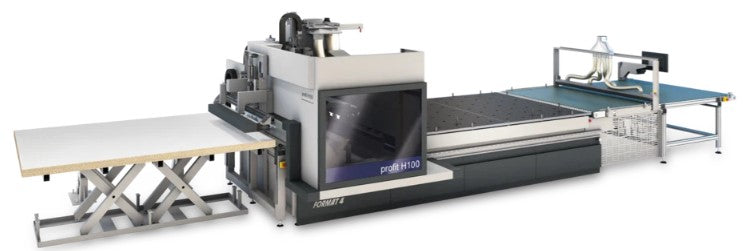

3) FORMAT4 profit H100

“Scalable nesting platform with larger formats + high tool capacity + automation paths”

The profit H100 is positioned as the nesting CNC machining center for future-proof shops producing complete furniture in one operation (holes, grooves, connections), with emphasis on material/time savings.

Where H100 differentiates is scalability and capacity:

• Four sizes are listed: 16.38, 22.32, 22.43, 22.61

• SMART ZONING vacuum management is integrated

• options for high automation levels and new safety concepts

• large Z passage size of 200 mm for flexible machining of higher workpieces

• tool capacity: standard tool changer + optional moving rotary tool changer + pickup space for a large saw blade, with up to 35 tool places

• automatic pre-labeling on the loading table to reduce errors and processing time

• position-controlled extraction connection that shifts extraction between drilling head and main spindle based on what’s active

• extended automation via different loading/unloading solutions

Best-fit buyer profile:
Higher-output cabinet/furniture/millwork production that wants more format options, higher tool capacity, and a clear upgrade path into automation.

Comparison: which one should you buy?

Choose profit H08 if…

• You need professional nesting in a compact footprint

• Your material mix includes plastics and panel products beyond wood (including aluminum composite panels)

• You want a strong entry point into nested CNC workflows without building a large cell

Choose profit H80I if…

• You want a connected production workflow that supports efficient “4.0” furniture/cabinet manufacturing

• You value Smart Zoning sheet flexibility and broader drill head + grooving options

• You want a machine that can grow into automation solutions over time

Choose profit H100 if…

• You want size options, higher automation ceilings, and high tool capacity (up to 35 tool places)

• You want features designed for higher productivity and reduced error (pre-labeling, extraction control)

• You’re building a future-proof nested production line, not just adding a CNC

In conclusion, buying a nesting CNC is a production decision, not a spec-sheet decision.

Centex Automation supports customers with:

• workflow layout planning (material in → machining → labeling → downstream)

• software/workflow integration strategy

• dust collection and vacuum planning

• service-first support after installation

The goal is predictable throughput and dependable uptime—not just machine delivery.
