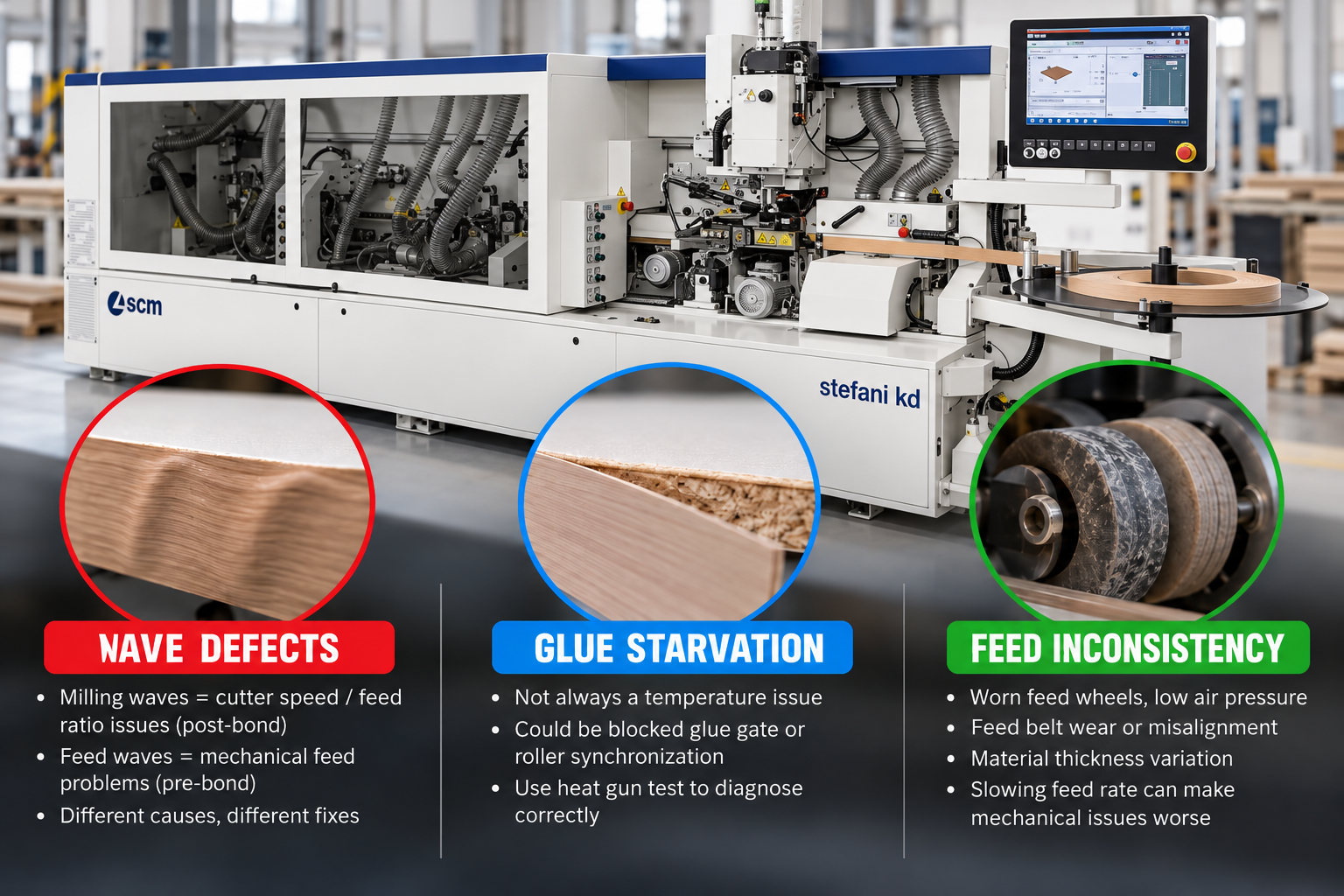

Edgebanding Wave Defects, Glue Starvation & Feed Inconsistency: A Systematic Troubleshooting Guide

Why Three Problems Usually Share One Root Cause

Your glue pot reads 195°C and the adhesive is still starving the joint. That is not a contradiction. It is a symptom of a system where temperature, feed mechanics, and adhesive chemistry interact in ways that single-variable fixes cannot resolve.

Wave defects, glue starvation, and feed inconsistency are routinely misdiagnosed in isolation. An operator sees a wavy edge and slows the feed rate. A supervisor sees delamination and bumps the glue pot temperature. Both fixes can make the actual problem worse if the root cause lives in a different category entirely.

The diagnostic principle is straightforward: triage by category before you touch a setting. The three root-cause categories are (1) feed-rate/cutter-speed ratio errors, (2) mechanical feed path failures, and (3) adhesive system misconfiguration. Applying the wrong fix to the wrong category costs you production time you will not get back.

Commercial casework buyers now expect a zero glue line aesthetic. What passed as acceptable glue line visibility five years ago is a rejection trigger today. Systematic troubleshooting is no longer optional; it is a competitive requirement.

Wave Defects: Milling Waves vs. Feed Waves Are Not the Same Problem

The first step in resolving any wave defect is identifying which type you are looking at. Milling waves and feed waves have completely different root causes, and conflating them sends you down the wrong diagnostic path.

Milling Waves

Milling waves are post-bond trimming defects. They appear after the edge tape is applied and the trimming and profiling cutters have done their work. The root cause is almost always a feed-rate/cutter-speed ratio error: the panel is moving too fast relative to the cutter RPM, or the router bit has too few cutters to produce a clean finish at the current speed.

Corrective actions are direct: reduce the feed rate, increase cutter RPM, or switch to a bit with more cutting edges. Scraper blade chip thickness must stay within 0.1 to 0.2mm. Exceeding that range causes stress whitening on thick edgebanding materials, which creates a secondary defect that looks like a material problem but is actually a tooling setup issue.

Tooling choice matters here more than most operators realize. Diamond pre-mill cutters can last over a year in continuous production. Carbide cutters wear significantly faster, especially at laminate edges. The longer your carbide cutters run without replacement, the more frequently milling waves will appear. Tooling wear is a direct variable in wave defect frequency.

Feed Waves

Feed waves are pre-bond defects caused by mechanical issues in the feed path. They show up as inconsistencies in the tape position or surface before the adhesive has even cured. Common root causes include worn feed wheels, feed air pressure below 0.5 MPa, worn feed belts, pressure beam misalignment, and adhesive build-up on the feed path itself.

Here is the counterintuitive trap: if you see waves and instinctively slow the feed rate, but the problem is actually mechanical (a worn feed wheel, for example), slowing down can make the defect worse. The panel spends more time in contact with the faulty component, amplifying the error.

One frequently overlooked driver of feed waves is edge band material batch variation. Roll-to-roll thickness inconsistency from the supplier creates feed irregularities that operators blame on machine settings. Before recalibrating anything, verify the incoming material against its thickness specification.

Glue Starvation: The Heat Gun Triage Protocol

Glue starvation is one of the most misdiagnosed problems on an edgebander because operators assume it is always a temperature issue. It often is not. Before you adjust anything, run the heat gun reactivation test.

The Test

Apply localized heat from a heat gun to a delaminated edge. If the tape rebonds under heat, you are dealing with a temperature or pressing issue. If the tape does not rebond and the substrate feels dry to the touch, the root cause is a blocked glue gate or incorrect application roller synchronization. The adhesive never reached the joint in sufficient quantity. That is a mechanical problem, not a thermal one.

The Three Root Causes of Bond Failure

Jowat's technical documentation identifies three primary drivers of edgebanding bond failure: incorrect adhesive temperature, insufficient adhesive application, and inadequate edgeband pressing. Each requires a different corrective action, and the heat gun test helps you identify which category applies before you start changing settings.

Temperature Verification

The glue pot display and the actual adhesive temperature at the application roller are frequently different. This is not a rare calibration drift; it is common. Operators must verify roller temperature with an infrared thermometer. Relying on the machine set-point readout alone produces repeated bond failures.

The EVA-to-PUR Trap

EVA hot melt operates at 180 to 220°C. PUR reactive adhesive glue pots should be set at 120 to 150°C. That is a 60 to 70°C difference. Shops transitioning from EVA to PUR mid-production without recalibrating frequently run PUR at EVA temperatures. The result is thermal degradation of the PUR adhesive that mimics starvation but is actually thermal overrun. The adhesive breaks down before it can bond.

This failure mode is absent from most legacy troubleshooting guides, and it is becoming more common as shops adopt PUR for its superior moisture and heat resistance.

Roller Gap and Application Volume

The application roller gap should be set 0.1 to 0.2mm from the board edge. Exceeding this tolerance causes both glue starvation (insufficient adhesive reaches the joint) and contamination of the glue pot with substrate fiber (excess gap allows panel dust into the system).

PUR cures through moisture-activated chemical crosslinking, not by cooling. It is applied at roughly 50% less volume than EVA due to its superior bonding strength. This changes the visual appearance of a correct application. Operators trained on EVA often see a PUR glue line and assume it is starved, then over-apply, creating a different set of problems.

Pressure Beam Issues

Inconsistent clamping pressure from the pressure beam causes board shift during glue application. The result is glue misalignment that looks like a glue pot or adhesive problem but is actually a mechanical clamping issue. Check the pressure beam before blaming the adhesive system.

Feed Inconsistency: The Zero-Point Sensor and the Cascade Failure Nobody Checks

If your edgebander is producing defects that seem random and intermittent (a bad edge here, a clean edge there, no obvious pattern), look at the zero-point sensor at the feed inlet before anything else.

The Zero-Point Sensor

This sensor triggers timing for every downstream processing unit: gluing, trimming, scraping. When it is contaminated with dust or adhesive residue, or when it malfunctions, the entire timing sequence drifts. Glue application starts a fraction of a second too early or too late. Trimming cutters engage at the wrong position. The defects look random because the timing offset varies with each panel, but the root cause is a single sensor.

Zero-point sensor failures are underdiagnosed because they produce symptoms that mimic multiple unrelated problems simultaneously. If you are chasing three different defects at once and none of your fixes are holding, check this sensor first.

Mechanical Feed Path Checklist

Beyond the sensor, work through the mechanical feed path systematically. Inspect feed belts for wear. Check pressure rollers for flat spots. Verify guide fence alignment. A small misalignment at the start of the feed path multiplies into a visible, measurable error by the end of a production run.

Adhesive build-up on the feed path compounds any mechanical misalignment. Feed path cleaning is part of the diagnostic sequence when troubleshooting active defects, not just a routine maintenance task.

Air Pressure and Material Qualification

Feed air pressure must be maintained at 0.5 MPa or above. Verify with a gauge, not by feel. Pressure below this threshold is a primary cause of wavy banding and intermittent feeding defects.

Roll-to-roll thickness inconsistency from the edge band supplier is a legitimate feed inconsistency driver. Establish incoming material thickness verification as part of your supplier qualification process, not just your machine calibration routine.

Chipped Edges

Chipped edges at the banding and panel interface remain the number one quality issue in production edgebanding. The causes are dull router bits, warped saw blades, misaligned scoring blades, or out-of-square pressure rollers. These are tooling and alignment problems, not feed setting problems. Do not chase feed rate adjustments when the real issue is a router bit that needs replacing.

Shift-Start Verification Checklist: Integrating All Three Defect Categories

Most operator guides address wave defects, glue starvation, and feed consistency as separate topics. In practice, you need a single integrated checklist that covers all three before the first panel hits the machine each shift.

Wave Defect Checks

• Confirm cutter RPM and feed rate ratio matches the material being run
• Inspect router bit cutter count and edge condition
• Verify scraper blade chip thickness is within 0.1 to 0.2mm

Glue System Checks

• Verify actual roller temperature with an infrared thermometer (not the machine display)
• Confirm roller gap is set to 0.1 to 0.2mm from the board edge
• Inspect glue gate for blockage
• Confirm adhesive type matches the temperature profile (EVA: 180 to 220°C; PUR: 120 to 150°C)

Feed Path Checks

• Verify feed air pressure at 0.5 MPa or above with a gauge
• Inspect feed wheels and belts for wear
• Confirm guide fence alignment
• Clean adhesive build-up from the feed path
• Confirm zero-point sensor is clean and unobstructed

Material Checks

• Verify incoming edge band roll thickness against specification before loading
• Flag roll-to-roll variation before it enters the production run

Centex Automation's installation and training programs walk operators through this exact calibration sequence on-site. Our team, founded by industry veterans with hands-on wood manufacturing experience, builds these SOPs into every edgebander deployment so your shop does not have to create them from scratch.

Emergency glue pot cleaning, equipment rework, and batch rejection from edgebanding defects represent hidden operational costs that frequently exceed any savings from lower-cost consumables. A five-minute shift-start checklist pays for itself in prevented downtime every single day.

What Systematic Troubleshooting Actually Costs You If You Skip It

Global wood utilization rates sit as low as 50 to 70% due to surface and processing defects. In high-end casework and cabinetry production, even minor edgebanding defects trigger batch rejection and rework cycles that eat margins fast.

The edgebander is the highest-impact machine for unplanned downtime in a production cabinet or casework shop. That makes it the highest-priority machine for systematic baseline maintenance, and the one where skipping diagnostics costs you the most.

AI-based vision inspection is entering this space. A 2026 study published in PLOS One (YOLO-MDEW) used 6,000 production-line images across 8 defect categories to train an automated detection model. A 2025 study in Drvna Industrija catalogued 6 primary defect types across 1,887 images using YOLOv7. These systems are becoming practical for high-throughput shops that need objective, repeatable quality control beyond what manual inspection can deliver.

New materials are adding complexity. MicroEmission adhesives and polypropylene edgebanding materials reduce VOC emissions and improve recyclability, but they introduce adhesive compatibility variables that legacy EVA setups cannot handle with temperature adjustment alone. These materials often require adhesive reformulation, not just recalibration.

The operators who resolve edgebanding defects fastest are not the ones who memorize the most settings. They are the ones who triage by root-cause category before they touch the machine. That discipline, applied consistently, is the difference between a shop that reacts to defects and one that prevents them.
