Why Your Undersized Compressor Is Killing CNC, Edgebander and Sander Performance

By: Terrence Lewis

The Silent Performance Killer Most Shops Never Suspect

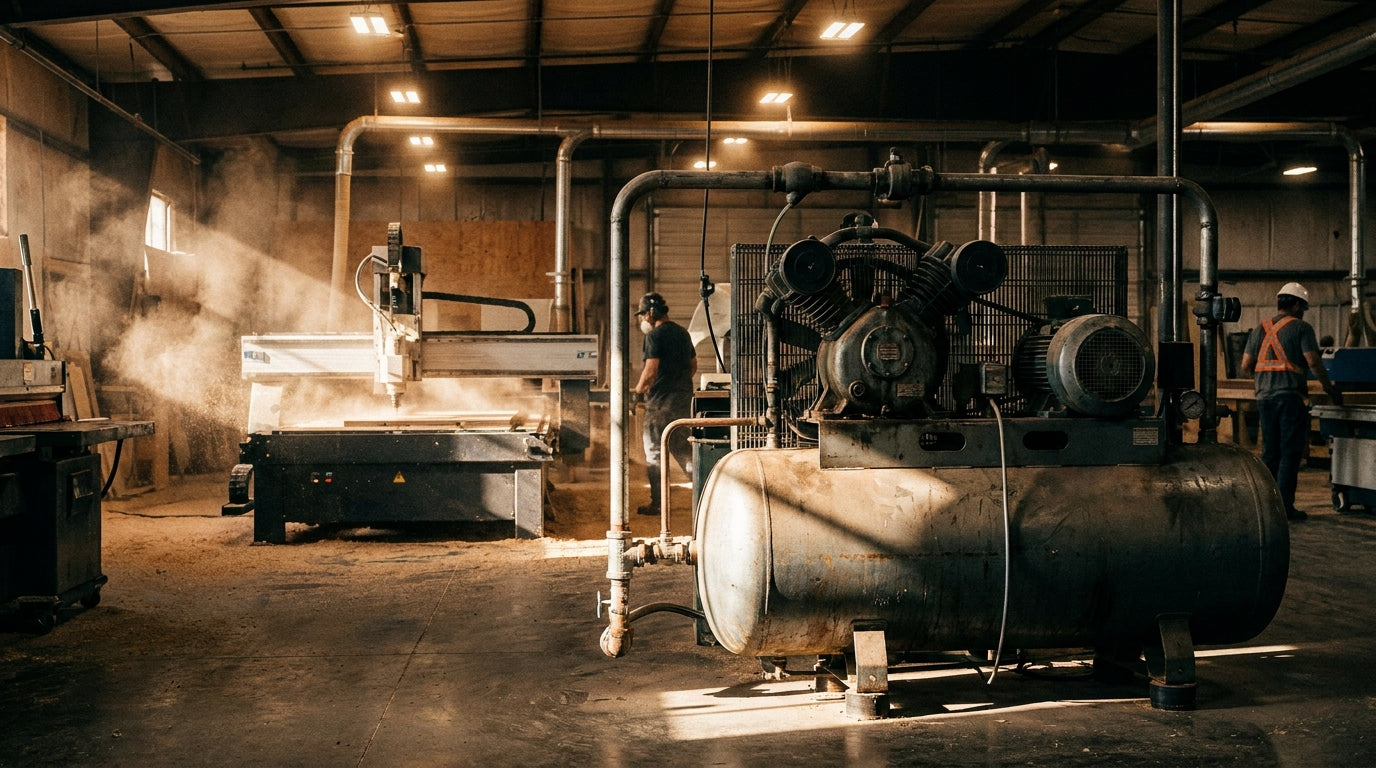

Your machines are lying to you. That inconsistent glue bond on the edgebander, the ATC misfire on the CNC, the belt tracking drift on the wide belt sander: your team is chasing tooling wear, material variation, or machine age as the root cause. In many cases, the real culprit is sitting in the corner of the shop, cycling on and off without anyone paying attention.

An undersized or poorly maintained compressed air system causes gradual, hard-to-diagnose performance degradation across every pneumatic machine on your floor. It doesn't fail catastrophically. It erodes quality and uptime slowly enough that you blame something else for months before connecting the dots.

Compressed air is the fourth utility. It's load-bearing production infrastructure on par with electricity, not a background afterthought. Since founding Centex Automation in 2008, our team has walked hundreds of production floors where the compressor was the last thing anyone suspected and the first thing that needed fixing. Here's how it plays out across three critical machine types: edgebander feed shutdowns, CNC mid-program halts, and wide belt sander tracking drift.

How Each Machine Actually Uses Compressed Air

Each machine type on your floor has distinct PSI and CFM requirements. A single compressor spec does not cover all three. More importantly, some machines draw air intermittently while others demand continuous flow, and a compressor that meets spec on paper can still fail when those demand cycles overlap during production.

CNC Routers with Automatic Tool Changers (ATC)

ATC-equipped CNC routers require a minimum of 110 PSI entering the machine and at least 10 CFM of dedicated supply for reliable tool-change operation. That's the baseline for the ATC mechanism alone. Manual tool change CNC routers require no compressed air at all, so this distinction matters significantly when sizing a shop system.

The real demand spike comes from chip-clearing blower systems. A CNC router running a blower can pull up to 23 CFM through a 1-inch air line. Run that blower for more than 10 minutes on an undersized compressor, and system pressure drops until the router shuts itself down mid-program.

Here's what makes this failure mode so deceptive: tank pressure looks fine at startup. The compressor hits its rated PSI when the tank is full. But sustained blower demand depletes CFM capacity faster than the compressor can recover. The machine shuts down, the operator logs a machine fault, and the air system never gets questioned. We see this pattern constantly.

Edgebanders

Edgebanders use compressed air to operate pressure rollers, trim unit positioning, and glue pot mechanisms. Air isn't an accessory on these machines; it's structural to every function in the feed cycle.

When pressure drops below 85 PSI, safety interlocks stop the feed system entirely. Operators see a machine fault code and assume a mechanical issue. The machine goes down, maintenance gets called, and nobody checks the gauge at the air inlet.

Hot-air edgebanders have significantly higher CFM demands than EVA glue models. Shops frequently discover they need a compressor upgrade after installation, not before. And before the interlock ever trips, inconsistent pressure causes variable glue bond quality that's invisible until a quality failure surfaces downstream, sometimes after the product has shipped.

Wide Belt Sanders

Wide belt sanders rely on compressed air for belt tracking, oscillation control, and belt tensioning, typically requiring 3 to 7 CFM at 70 to 90 PSI for pneumatic controls. Models with pneumatic air-jet belt cleaning systems require a large-volume industrial compressor, and this requirement is often overlooked at time of purchase.

Insufficient pressure causes belt tracking drift. Operators typically diagnose this as a belt tension or alignment problem rather than an air supply issue, which leads to unnecessary downtime and parts replacement.

If your finishing department uses pneumatic orbital sanders, each one requires 6 to 9 CFM at 90 PSI continuously. When those tools are used across overlapping shifts, multiply the CFM demand by up to four. That adds up fast.

The Multi-Machine Demand Stacking Problem

No machine spec sheet accounts for concurrent operation. When a CNC router, edgebander, and wide belt sander run simultaneously, cumulative CFM demand far exceeds what any single machine's documentation suggests.

Walk through a realistic scenario: an ATC CNC pulling 10 CFM baseline plus 23 CFM peak for the blower, an edgebander at continuous demand, and a sander at 3 to 7 CFM. Total demand can easily exceed 40 CFM, and that's before you add handheld pneumatic tools or a second machine of any type.

A compressor sized to the largest single machine will fail under multi-machine overlap. The math simply doesn't work. This is the most common sizing mistake we see in shops that have grown their machine lineup incrementally without revisiting the air system.

Distribution design matters just as much as compressor capacity. Long air line runs create pressure drop that can cause a correctly sized compressor to deliver insufficient pressure at the machine. Dedicated air drops at each workstation and a properly designed distribution loop prevent this. Industrial-grade systems for multi-machine shops typically require 20-plus CFM at 90 PSI minimum, with a rotary screw design rated for continuous-duty operation.

Air Quality: The Requirement Nobody Talks About

PSI and CFM are only two of three variables. Air quality is equally critical, and it's almost entirely absent from most guidance you'll find online.

CNC ATC machines require air chilled to a dew point of 37.4°F (3°C) and filtered to remove all particles larger than one micron. These aren't suggestions; they're requirements to protect spindle bearings and tool-change components from premature failure.

Moisture in compressed air lines corrodes cylinder walls, dilutes lubrication, causes rubber diaphragms in valves to stiffen and rupture, and causes spools and pistons to pit. This damage affects every pneumatic machine on the floor, not just CNCs.

Spindle contamination from dirty or wet air is a documented cause of bearing seizure. HST Spindles, drawing from a database of over 100,000 spindle repairs, identifies bearing contamination as one of the most common failure types. Wood dust entering bearing housings mixes with grease to create a grinding paste that accelerates raceway wear. Insufficient compressed air purge pressure compounds this by failing to keep contaminants out of the housing in the first place.

A properly specified air treatment system includes an aftercooler, a refrigerated dryer, and coalescing filtration. A basic inline filter is not enough. If you've invested in premium CNC equipment, clean, dry, filtered air is spindle warranty protection and repair cost avoidance. Skipping it is a false economy.

Reciprocating vs. Rotary Screw: Which Compressor Type Belongs in a Production Shop

Reciprocating piston compressors are intermittent-duty machines. They're designed to fill a tank, shut off, and cycle again. They are not built for the continuous CFM demand of a shop running an edgebander, CNC router, and sander simultaneously.

Rotary screw compressors deliver consistent CFM at rated pressure continuously, produce lower dew points, and are the appropriate technology for multi-machine production environments. The Atlas Copco GA FLX series (15 to 40 HP), for example, delivers 53 to 213 CFM, which is representative of the industrial-grade range appropriate for woodworking shops at scale.

The energy cost argument is equally compelling. According to U.S. Department of Energy data, compressed air accounts for 10 to 30% of total electricity consumption in manufacturing plants. Energy represents 70 to 75% of a compressor's total lifecycle cost, far exceeding capital or maintenance expenses. Right-sizing your compressor is a direct margin decision.

Leaks alone waste 20 to 30% of compressed air energy. A single quarter-inch leak at 100 PSI can cost several thousand dollars per year in electricity. And if you're over-pressurizing to compensate for an undersized system, every 2 PSI increase in discharge pressure increases energy consumption by approximately 1% at full load. You're paying more to get worse results.

How to Know If Your Current System Is Undersized

The symptoms of an undersized or poorly conditioned air system are specific and observable, but they appear gradually. That's what makes them dangerous. Watch for these:

• Edgebander feed faults and safety interlock trips
• CNC mid-program shutdowns, especially during extended blower use
• ATC tool drops or inconsistent tool seating
• Belt tracking drift on wide belt sanders
• Sluggish pneumatic cylinder response across any machine
• Increased valve and cylinder repair frequency

These problems are routinely misdiagnosed as tooling wear, material inconsistency, or machine age. The silent degradation pattern persists because a compressor that hits target PSI when the tank is full but can't sustain pressure under continuous demand doesn't trigger an obvious fault. It just quietly starves your machines.

Practical diagnostic steps: check pressure at the machine inlet, not at the compressor. Log pressure during peak concurrent machine operation. Inspect air lines for moisture and contamination. Audit the entire system for leaks. The gap between compressor output and machine inlet pressure often tells the whole story.

Before purchasing a new compressor, consult a machinery specialist. System design, pipe sizing, and distribution layout matter as much as compressor horsepower rating. A bigger compressor won't fix a poorly designed distribution system.

At Centex Automation, we review compressed air infrastructure as part of every machinery installation and upgrade conversation. If any of the symptoms above sound familiar, or if you're planning to add a CNC, edgebander, or sander to your floor, request a consultation through our contact form at centexautomation.com/pages/contact. We'll help you spec the air system alongside the machines, so everything works the way it should from day one.
