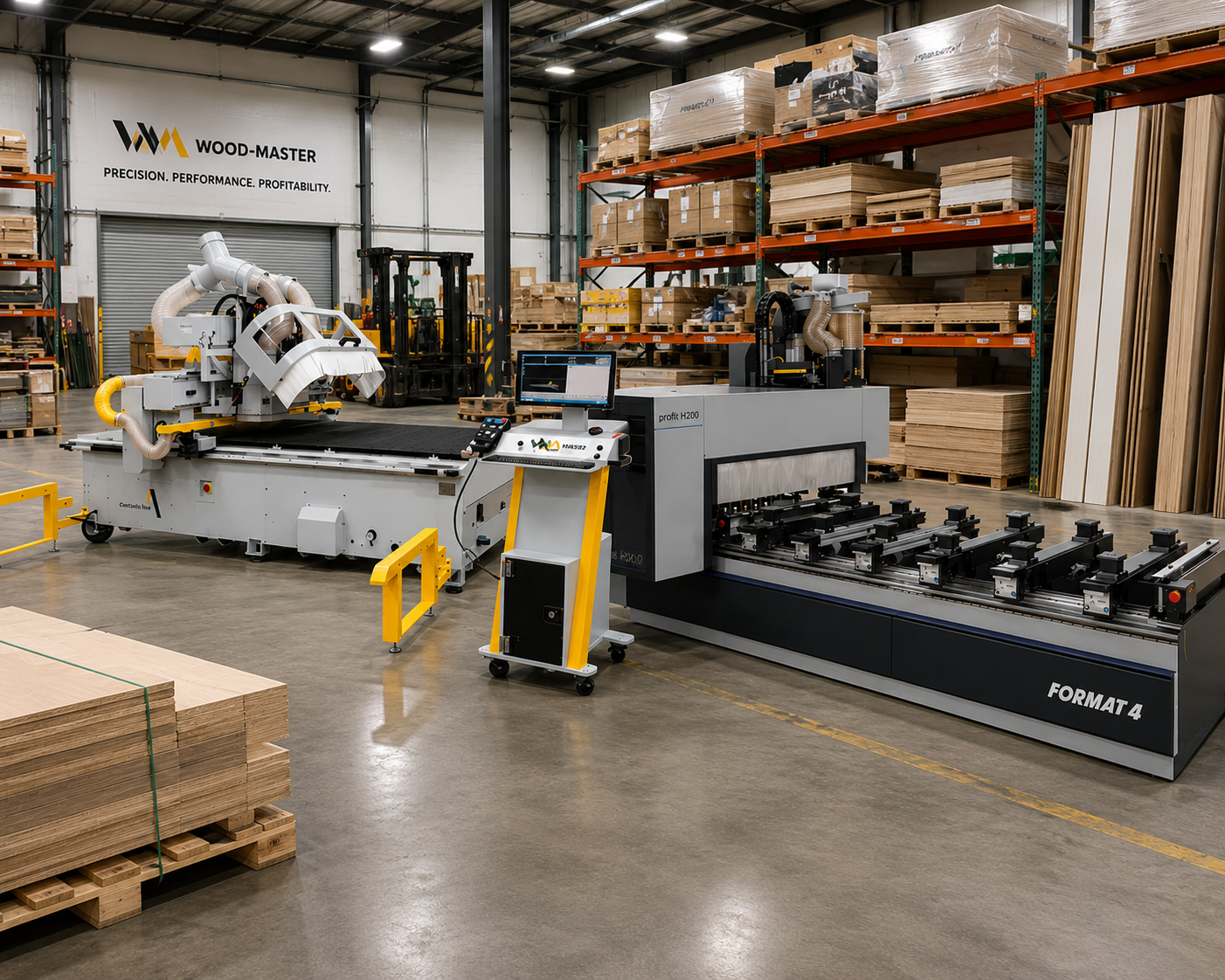

CNC Machining Centers for Solid Wood Furniture: Tenoning, Profiling & Joinery

Why Solid Wood Furniture Production Demands a Different CNC Evaluation

Most CNC router buying guides are written for panel processing shops. Solid wood furniture and frame production has fundamentally different requirements for joinery tolerance, workholding, and toolpath strategy. If you are evaluating an industrial CNC router for cabinet making or furniture frames, the criteria that matter for sheet goods will not get you to the right machine.

Consolidating a dedicated tenoner, shaper, horizontal borer, and profiler into one CNC machining center eliminates part handling between stations and dramatically reduces work-in-process inventory on the shop floor. That consolidation is the core value proposition for solid wood producers scaling up.

Woodworking leads all CNC router end-use segments at roughly 40% market share, driven by furniture, cabinetry, and millwork. Industrial-grade CNC routers account for nearly 45% of total CNC router revenue, and demand from scaling small and medium furniture producers is growing at over 21% annually. The market is clearly moving toward consolidation platforms.

This guide covers the decisions that matter for solid wood: platform architecture selection, joinery tolerance programming, ATC spindle specifications, vacuum workholding, and machine structure for furniture and frame components.

Platform Architecture: Nested-Base, Pod-and-Rail, and Hybrid Twin-Table Compared

Nested-base flat-table routers are widely considered the best choice for shops producing fewer than 100 cabinets per day. They deliver superior material yield, lower labor cost, and single-touch part handling from full panels. Automated nesting CNC router woodworking changed the industry by enabling multiple parts from a single sheet on one table, cutting the employees and time required for sizing and drilling.

Pod-and-rail (point-to-point) machining centers can access part edges for horizontal boring, drilling, and profiling — operations a nested-base table cannot perform without lifting the workpiece and losing nesting efficiency. For solid wood frame components that require edge work, pod-and-rail access is essential.

The problem: nested-base routers cannot reach part sides without repositioning, while pod-and-rail tables require significantly more setup time per job and sacrifice sheet yield. Neither platform is ideal on its own for mixed solid wood and panel production.

Hybrid twin-table configurations solve the either/or problem. One table runs nested-base sheet production continuously while the other is configured with pods or custom fixturing for solid wood frame components. This eliminates machine downtime during load/unload cycles. Both HOMAG and SCM offer multi-table and twin-table architectures configurable for panel and solid wood processing, confirming that this is a mainstream industrial decision, not a niche configuration.

Platform Comparison: Nested-Base vs. Pod-and-Rail vs. Hybrid Twin-Table

Joinery Tolerance Programming for Solid Wood: Mortise-and-Tenon, Dowels, and Corner Geometry

For mortise-and-tenon CNC joinery, program the tenon 0.005 inch per side narrower than the mortise cutout as a starting clearance. If the joint is still too tight after test cuts, increase to 0.010 inch per side. These tolerances are specific to solid wood and differ substantially from panel-based cabinet construction, where material behavior is more predictable.

CNC router bits cannot reach inside square corners. All CNC-routed joints require rounded inside corners, and the tool must stay moving at corners to prevent heat buildup and premature bit wear. This is a fundamental constraint that affects joint design from the CAD stage forward.

One detail most buying guides miss entirely: joinery clearances must account for finish coat thickness. A joint that mates perfectly before finishing may bind after two coats of lacquer or conversion varnish. If you are running a production line with post-machining finishing, add clearance in your CNC programs to compensate. This is the kind of tolerance issue that only shows up on the assembly floor.

CNC boring heads maintain depth tolerances within +/- 0.1 mm using digital stop-collars, keeping dowel depths uniform across thousands of parts and preventing hydraulic lock during glue insertion. For high-volume chair and frame production, this consistency is non-negotiable.

5-axis CNC wood furniture machining centers cut compound curves and compound miters in a single clamping setup for components like chair legs, armrests, and seat pans. This prevents the dimensional drift between production lots that accumulates when parts are repositioned across multiple machines. For simpler tenoning and dado work, a heavy-duty 3-axis CNC router handles wood fabrication without the added investment of a 5-axis head.

CAM software and post-processor compatibility for solid wood joinery toolpaths (mortise-and-tenon, dovetail, box joint) is a major operational decision point. Verify that the machine's native CAM or supported third-party software can generate these toolpaths before committing to a purchase. Not every platform supports them out of the box.

ATC Spindle Selection: ISO30 vs. HSK63F for Tenoning and Profiling Forces

ISO30 is the most widely used tool holder specification in woodworking CNC routers. HSK63F is preferred for high-speed, high-precision applications. Standard ER collets cannot be used with ATC spindles and must never be mixed with ATC tool holders. If you are specifying an automatic tool changer CNC router for wood, this distinction matters from day one.

Industrial ATC spindles for furniture production typically run 9 kW or 12 kW at up to 24,000 RPM, maintaining spindle runout tolerances of less than 0.005 mm per ISO 1940-1 balancing standards. That runout spec directly affects tenon shoulder quality and profile edge finish on hardwoods like oak, maple, and walnut.

HSK63F features a 63 mm chuck diameter, the largest among ISO30, BT30, and HSK63F options. It provides higher clamping rigidity and pull-out resistance. This matters most during heavy solid wood tenoning and profiling passes, where lateral cutting forces are significantly greater than in panel routing. Premium furniture and frame component producers are migrating from ISO30 to HSK63F specifically for this reason.

High-volume solid wood operations should specify solid tungsten-carbide (HW) or polycrystalline diamond (PCD) tipped tooling for tenoning and profiling to maintain edge quality and tool life under continuous production. Factor tooling investment into your platform ROI calculation; it is not a minor line item.

Nesting cutting speeds have advanced to upwards of 2,000 IPM as tooling technology caught up with machine motion capabilities. At those speeds, closed-loop servo drives from manufacturers like Yaskawa or Delta are essential to prevent lost steps under load. Open-loop stepper systems cannot maintain dimensional accuracy at production feed rates.

Machine Structure and Vacuum Workholding for Solid Wood Components

Heavy solid wood cutting forces, especially during tenoning and profiling passes on hardwoods, require a welded steel chassis with proper stress-relieving. Bridge versus gantry architecture affects rigidity under lateral load in ways that matter far more for solid wood than for panel routing. A heavy-duty 3-axis CNC router built for wood fabrication must handle sustained lateral forces without deflection.

For nested-base or spoilboard CNC tables, vacuum pump sizing requires approximately 5.5 CFM per square foot of surface area. A standard 4x8 table requires a minimum 7 to 10 HP vacuum pump with at least 4 vacuum zones. Six to 8 zones are preferred for small parts like shelves and frame rails, where concentrated hold-down prevents part movement during cutting.

Vacuum hold-down for industrial CNC routers requires 200 to 400 CFM airflow to guarantee rigid material stability. A vacuum level of 18 to 24 inches Hg is generally sufficient at sea level. Specify these numbers when evaluating machine packages from dealers; they are not optional details.

Pod-and-rail tables require far less vacuum flow due to smaller, concentrated suction cups. Workholding for irregular solid wood components like curved chair legs and sculpted frame rails, however, requires custom pod configurations and supplemental mechanical clamping. Standard vacuum alone will not hold these parts reliably.

Evaluate whether the machine platform supports custom fixturing, vacuum pods with soft-jaw inserts, or toggle-clamp integration. Solid wood furniture components often demand all three options depending on part geometry.

Centex Automation's team evaluates vacuum architecture and structural frame specifications as part of the machinery selection process, not as an afterthought. Workholding failures on solid wood are the leading cause of scrapped parts and spindle crashes in furniture production. Getting this right up front saves significant money downstream.

ROI Framework: What One CNC Machining Center Actually Replaces

A single configurable CNC machining center can replace a dedicated tenoner, shaper, moulder, and horizontal borer. Calculate the floor space recovered, labor headcount reduction, and elimination of WIP inventory staging between those stations. The consolidation math is straightforward once you map your current workflow.

Fully integrated CNC panel processing lines achieve up to 80% reduction in labor and zero manual panel handling versus conventional multi-machine workflows. Solid wood consolidation delivers comparable gains when the platform is correctly specified for your part mix.

New CNC router prices have increased 8 to 12% due to steel costs, electronics, and tariff pressures. The premium used market for brands like Biesse, HOMAG, and SCM is a legitimate capital strategy for scaling furniture shops that want industrial capability at reduced outlay.

Labor shortage is a primary CNC investment driver. Evaluate platforms on operator-to-output ratios and lights-out capability, not just peak throughput speed. A machine that runs unattended during a shift change pays back faster than one requiring constant operator presence.

The global CNC router market is projected to reach $1.2 to $1.4 billion by 2032 to 2035 at compound annual growth rates of 4% to 6.7%, according to multiple industry research firms. Capital investment in this category is appreciating as a strategic asset for production woodworking businesses.

Next Step: Talk to Someone Who's Run These Machines on a Shop Floor

Every solid wood furniture producer needs to resolve four evaluation decisions before selecting a CNC machining center: platform architecture (nested-base, pod-and-rail, or hybrid twin-table), joinery tolerance and CAM compatibility, ATC spindle specification (ISO30 vs. HSK63F), and vacuum workholding strategy.

Centex Automation was founded by industry veterans with hands-on wood manufacturing experience. Machinery recommendations are driven by your production goals, not brand sales quotas, across 20+ authorized premium brands. The right machine for your solid wood furniture operation depends on your part mix, volume, and joinery complexity. Our job is to match those requirements to the correct platform.

Schedule a no-obligation consultation call with Centex Automation's team. We will review your current machine mix, production volume, and joinery requirements, then deliver a platform recommendation built around your actual throughput goals, not a catalog spec sheet.
