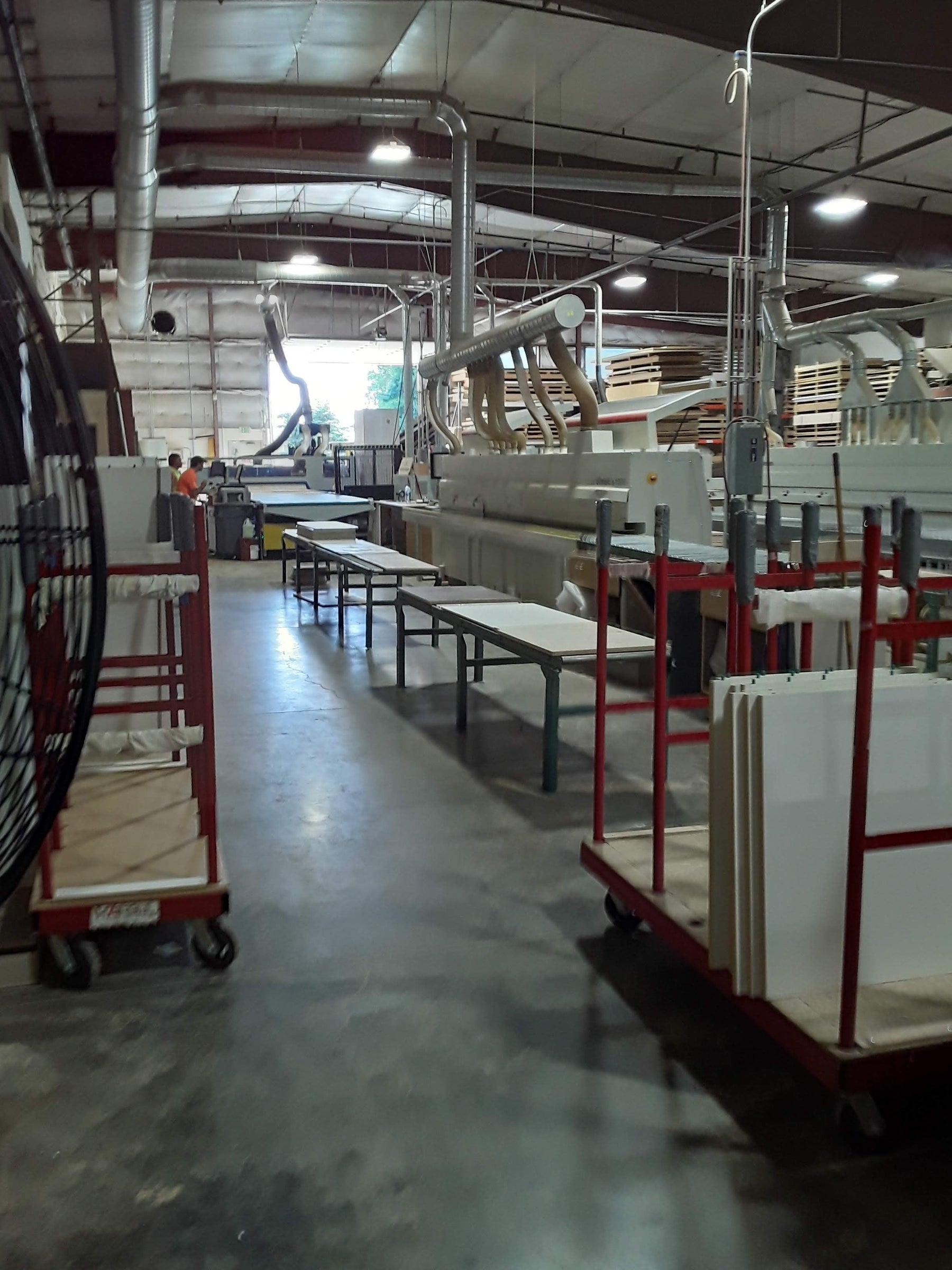

AWI Grades: What They Mean for Your Machine Setup

Your Inspector Knows What Grade You're Building To — Does Your Machine?

Picture this: a QCP inspector runs a straightedge across your casework doors and flags a panel saw fence that drifted 1/16". Or your edgebander's glue pot is running 10°F off spec, and the resulting joint line fails the visual check. These are not hypothetical scenarios. They happen in shops every week.

The stakes are real. AWI Premium grade allows only ±0.031" flatness per 12 inches of panel. That's less than the thickness of a credit card. Your CNC router, edgebander, wide belt sander, and case clamp must consistently hit these numbers, run after run.

ANSI/AWI 0622.0646–2024 became effective November 15, 2024, replacing the 2014 AWS edition. Many shops are still referencing outdated standards on active commercial contracts. What follows is a practical, machine-by-machine guide for production managers and shop owners bidding on commercial millwork work.

The Three AWI Grades: Economy, Custom, and Premium Defined

Economy grade represents the minimum quality requirements. It applies to woodwork that won't be seen by the public: mechanical rooms, utility closets, back-of-house storage. Economy grade projects are not eligible for AWI QCP certification.

Custom grade is the default. When a project specification under CSI Division 06 is silent on grade, Custom applies automatically. It delivers the quality level expected in most high-end commercial work, including schools, hospitals, and office buildings. For the majority of projects, Custom is the right call.

Premium grade is reserved for the most visible spaces on a project: reception counters, boardrooms, executive offices, hotel lobbies, courtrooms, and museums. It demands the highest level of material selection, workmanship, and installation precision.

AWI Standards are voluntary, but they become contractually binding the moment an architect references them in a project spec. If the spec says Premium, your shop is legally obligated to hit Premium tolerances.

Since the 2010s, AWI standards have moved to a performance-based approach. They define required outcomes (tolerances, aesthetics) rather than mandating specific construction methods. This gives your shop flexibility in machine selection and process design, but it also means the burden of proof falls on your output, not your process.

A practical note on cost: specifying Premium grade globally across an entire project can add 20–30% to fabrication cost with no perceived benefit in back-of-house areas. Industry best practice is to apply Premium selectively. Roughly 80–90% of AWI QCP-licensed firms work to Premium grade requirements, so the capability is widespread, but applying it strategically is what protects your margins.

Grade Tolerances Translated Into Machine Numbers

The following ANSI/AWI 0641 tolerances are expressed in production terms your operators can use directly:

• Premium: ±0.031" flatness per 12 linear inches
• Custom: ±0.063" per 12 linear inches
• Economy: ±0.125" per 12 linear inches

Regardless of grade, maximum warp in any single door cannot exceed 0.250". That number is absolute.

The visual inspection standard is equally specific. Premium grade requires that any repairs or touch-ups be indistinguishable at 24 inches. Custom grade pushes that distance to 48 inches. This directly governs your sanding grit sequences and surface calibration on your wide belt sander. A scratch that disappears at four feet will fail at two.

A properly maintained industrial CNC router, such as an Anderson America, holds ±0.005" positional tolerance — well inside Premium grade requirements. But that spec only holds when the machine gets a proper warmup cycle, regular spindle calibration, and verified tool length offsets before each program run. Skip any of those steps, and you're gambling.

Installation tolerances from ANSI/AWI 0620 add another layer: product must be installed plumb and level within 0.125" in 96". Gap tolerances at scribes differ by grade. Premium allows less than 0.250"; Economy allows less than 0.500".

Substrate selection ties directly to grade as well. AWI Premium typically requires hardwood plywood for case bodies. MDF is standard for Custom paint-grade casework. Particleboard is adequate only for Economy painted work.

Don't overlook the moulder. A quality moulder with proper knife geometry, feed rate, and pressure settings can hold ±0.001" thickness tolerance, producing furniture-quality surfaces directly off the machine. Inadequate thickness calibration before CNC operations is one of the leading causes of inconsistent parts during wide belt sanding. If parts arrive at the sander at varying thicknesses, no amount of calibration passes will save you.

Machine-by-Machine Setup Checklist by AWI Grade

CNC Router (Anderson America)

Premium grade demands a daily warmup routine. Spindle thermal expansion must stabilize before production runs begin. Verify tool length offsets before each Premium grade program. During long production runs, thermal drift can push a ±0.005" machine outside Premium tolerance cumulatively. Monitor and re-verify on extended runs.

Edgebander (Paul Ott)

AWI casework standards specify edgebanding thickness permissions and gap tolerances at joints by grade. For Premium grade, the pre-milling unit must be engaged to achieve a clean, gap-free glue line. Glue temperature and feed speed must be calibrated per grade. A 10°F deviation in glue temperature can produce visible joint gaps that will fail Premium's 24-inch visual inspection. Document your settings for each grade and treat them as non-negotiable.

Wide Belt Sander

Premium grade's 24-inch visual inspection standard requires a finer final grit sequence than Custom. Your surface calibration passes must achieve consistent thickness across the entire panel before finish operations begin. Inconsistent thickness from the moulder compounds into sanding failures. The sander can only do its job if the parts arriving are within spec.

Panel Saw (Casadei Busellato)

Fence drift of even 1/16" introduces dimensional error that cascades through CNC programming, edgebanding, and case assembly. Verify fence squareness and stop accuracy at the start of each Premium grade production run. This is a five-minute check that prevents hours of rework.

CNC Drill and Dowel (Pillar or Vitap)

AWI structural requirements govern joint type, back panel thickness by grade, and shelf pin hole consistency. Your boring machine setup must ensure hole position repeatability within Premium tolerances. Inconsistent shelf pin spacing is one of the most common QCP inspection failure points — easy to overlook and expensive to fix after assembly.

Case Clamps (Bonacin)

Proper clamping pressure and square setup directly affect joint flushness and gap tolerances measured during QCP inspection. Bonacin case clamps deliver consistent, repeatable clamping force at production volume. This consistency is what allows you to hit Premium grade joint quality across hundreds of cases, not just the first five off the line.

Running Mixed-Grade Projects on the Same Equipment

Most commercial millwork projects specify Premium selectively (reception areas, boardrooms) and Custom everywhere else. Your shop needs to switch between grade runs efficiently on the same machines without introducing errors.

Start with your CNC router: create separate program folders labeled by AWI grade so operators aren't relying on memory when switching between Premium and Custom runs. On your Paul Ott edgebander, document glue temperature, feed speed, and pre-milling settings as named grade profiles. Switching grades should be a settings recall, not a manual recalibration.

Wide belt sander grit sequences should be documented as grade-specific recipes. Premium sequences require an additional finishing pass that Custom sequences skip. Post these recipes at the machine.

Environmental controls matter here too. AWI 200 (Care and Storage) governs shop humidity and acclimation protocols. Flatness, warp, and gap tolerances in ANSI/AWI 0622.0646–2024 are contingent on maintaining proper interior environmental controls. This is especially critical for Premium grade hardwood plywood components, which are more sensitive to moisture changes than MDF or particleboard.

The labor context reinforces this further: 92% of construction firms reported difficulty filling open positions in 2025, and 57% cited a lack of skills or qualifications among candidates. Machines that hold tolerances automatically, rather than relying on skilled hand-fitting, are increasingly the only reliable path to AWI compliance at production volume. Grade profiles and parameter presets are how you build that reliability into your workflow.

Grade Compliance Starts With the Right Machine Partner

AWI grades are specific, measurable tolerances. Every machine in your shop either supports or undermines your ability to hit them consistently. With ANSI/AWI 0622.0646–2024 now in effect, shops still referencing the 2014 AWS edition may be working to outdated standards on current contracts.

At Centex Automation, we help shops evaluate whether their current equipment can hold the tolerances required for the grades they're bidding. Our team works with Anderson America CNC routers, Paul Ott edgebanders, Casadei Busellato panel saws, Pillar and Vitap CNC drill and dowel machines, and Bonacin case clamps. We back every sale with technical repair, preventative maintenance, and process improvement consulting, all focused on keeping your production within spec.

If you're bidding on AWI Premium or Custom grade commercial contracts and want to know where your machines stand, give us a call. Financing options are available for shops ready to upgrade. Our Texas-based team brings hands-on expertise and the patience to work through your specific production challenges. We're here as an ongoing partner, not a one-time transaction.
